SPX FLOW W70 Series Instruction Manual page 43

Waukesha Cherry-Burrell

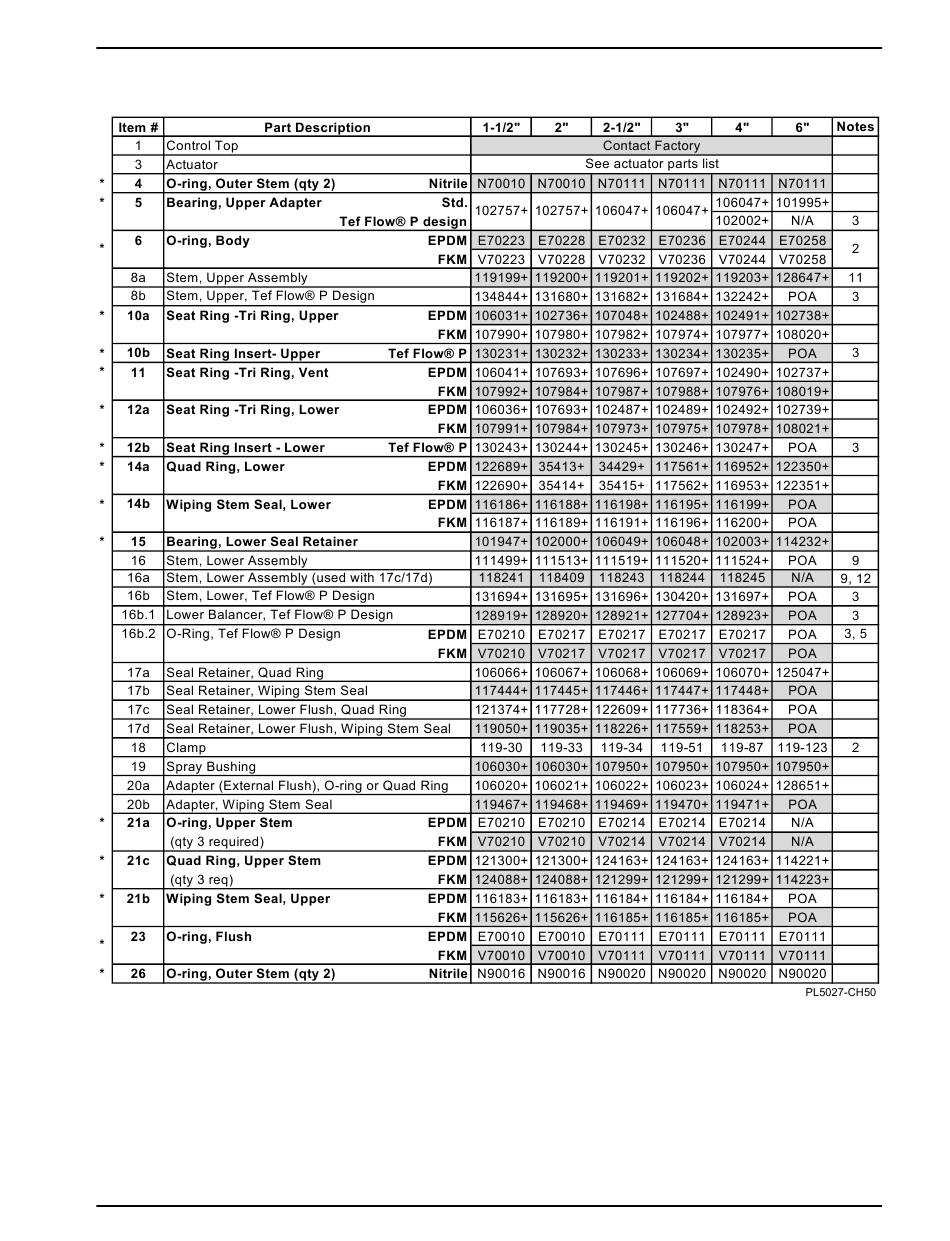

W71 Mix Proof Seat Lift Valve with External Flush
Notes:* Recommended Spare Parts
2. For one-piece body, qty. 2 are required for item 6 and item 18; for a clamped body, qty. 3 are required.
3. For valve with Tef Flow® P design stem only.
4. Unless otherwise noted, quantity required is 1.
5. EPDM recommended on all steam-contact seals.
6. POA = Part # on availability; N/A = not available with this design.
9. Part number includes lower stem and inner stem, which are assembled together.
11. Part number includes upper stem, outer stem and coupling sleeve, which are assembled together.
12. This stem used for valves with lower external flush and lower seal retainer item 17c or 17d.
10/2023
®
