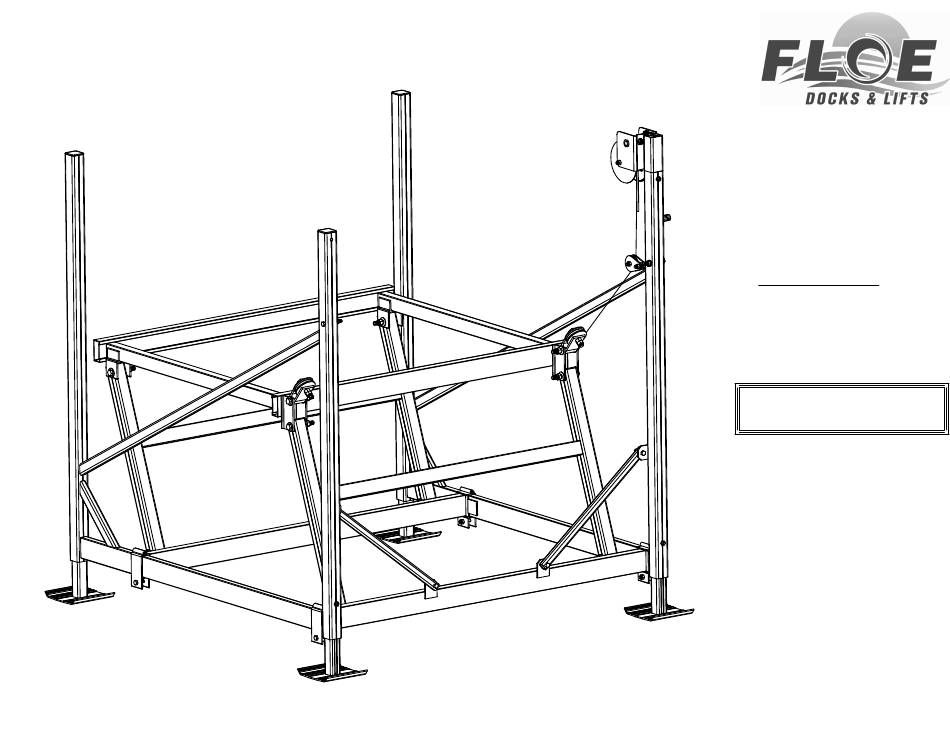

FLOE PWC-1300 PIVOT LIFT
ASSEMBLY INSTRUCTIONS
P/N 511-10000-00
P/N 611-10000-00
Updated 1/11/21
Sheet 1 of 8
TOOLS REQUIRED
(2) 9/16" SOCKETS OR
WRENCHES
(2) 3/4" SOCKETS OR
WRENCHES
TORQUE WRENCH
IMPORTANT NOTE:
DO NOT USE IMPACT WRENCH
Manufactured by:
Floe International Inc.
48473 State Hwy. 65
McGregor, MN 55760
www.floeintl.com
