04 I Product Overview
Product Overview I 05

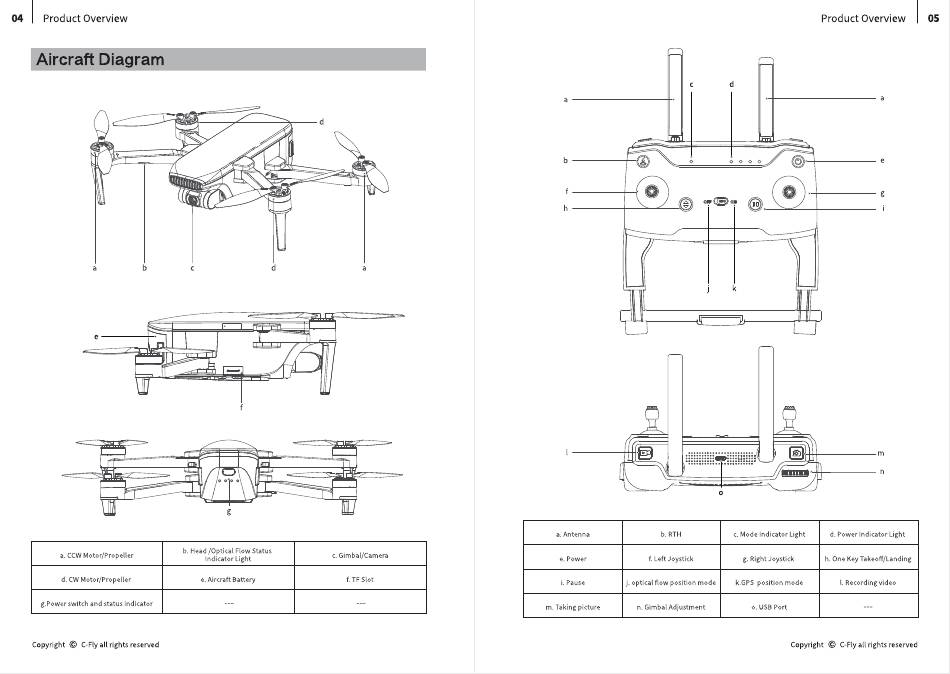

a. CCW Motor/Propeller
b. Head /Optical Flow Status
Indicator Light
c. Gimbal/Camera
d. CW Motor/Propeller
e. Aircraft Battery
f. TF Slot
g.Power switch and status indicator
a. Antenna
b. RTH
c. Mode Indicator Light
d. Power Indicator Light
e. Power
f. Left Joystick
g. Right Joystick
h. One Key Takeoff/Landing
i. Pause
j. optical flow position mode
k.GPS position mode
L Recording video
m. Taking picture
n. Gimbal Adjustment
o. USB Port
---
