Remote Controller To Control Flight - C-Fly FAITH 2 User Manual

Left
joystick:
® Ascend
® © Descend
© Left Rotation
® Right Rotation
Right joystick:
® Forward
® 0 Backward
0 Left
()Right
OO OO
Left joystick:
C) Forward
C) Backward
C) Left Rotation
® Right Rotation
Right joystick:
0 Ascend
0 Descend
0 Left
® Right
M
O
d
e
1
M
O
d
e
2
26 I
Flight Flight
27

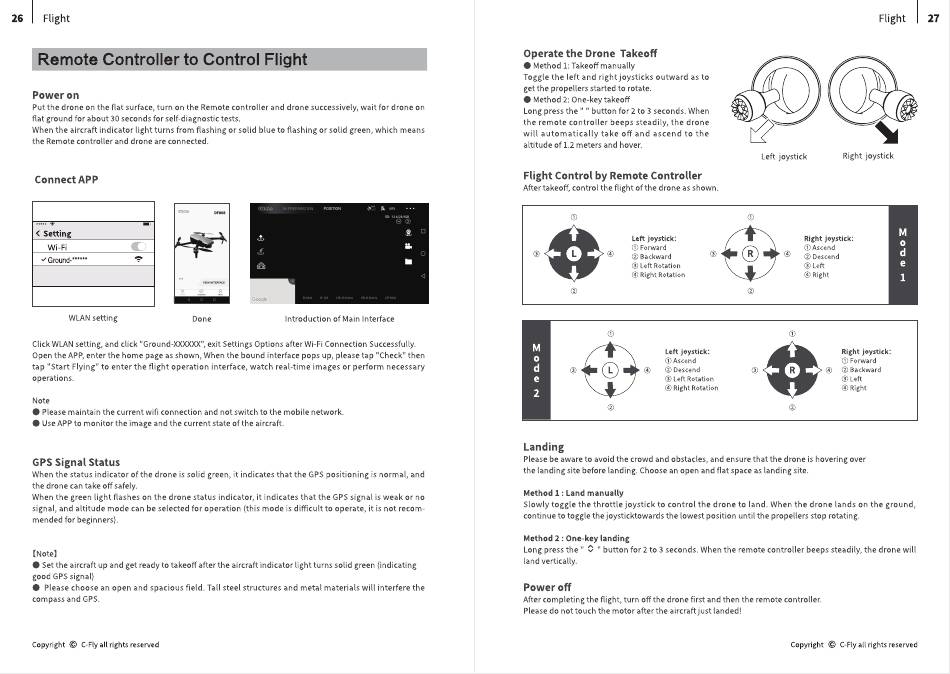

Remote Controller to Control
FIj
Power on
Put
the drone on the flat surface, turn on the Remote controller and drone successively, wait for drone on
flat ground for about 30 seconds for self-diagnostic tests.
When the aircraft indicator light turns from flashing or solid blue to flashing or solid green, which means
the Remote controller and drone are connected.
Operate the Drone Takeoff
• Method 1: Takeoff manually
Toggle the left and right joysticks outward as to
get the propellers started to rotate.
• Method 2: One-key takeoff
Long press the " " button for 2 to 3 seconds. When
the remote controller beeps steadily, the drone
will automatically take off and ascend to the
altitude of 1.2 meters and hover.
Left joystick
Right joystick
Connect APP
Introduction of Main Interface
Click WLAN setting, and click "Ground-k0000(", exit Settings Options after Wi-Fi Connection Successfully.
Open the APP, enter the home page as shown, When the bound interface pops up, please tap "Check" then
tap "Start Flying" to enter the flight operation interface, watch real-time images or perform necessary
operations.
Note
• Please maintain the current wifi connection and not switch to the mobile network.
• Use APP to monitor the image and the current state of the aircraft.
GPS Signal Status
When the status indicator of the drone is solid green, it indicates that the GPS positioning is normal, and
the drone can take off safely.
When the green light flashes on the drone status indicator, it indicates that the GPS signal is weak or no
signal, and altitude mode can be selected for operation (this mode is difficult to operate, it is not recom-
mended for beginners).
[Note]
• Set the aircraft up and get ready to takeoff after the aircraft indicator light turns solid green (indicating
good GPS signal)
• Please choose an open and spacious field. Tall steel structures and metal materials will interfere the
compass and GPS.
Flight Control by Remote Controller
After takeoff, control the flight of the drone as shown.
Landing
Please be aware to avoid the crowd and obstacles, and ensure that the drone is hovering over
the landing site before landing. Choose an open and flat space as landing site.
Method 1: Land manually
Slowly toggle the throttle joystick to control the drone to land. When the drone lands on the ground,
continue to toggle the joysticktowards the lowest position until the propellers stop rotating.
Method 2 : One-key landing
Long press the " 0 " button for 2 to 3 seconds. When the remote controller beeps steadily, the drone will
land vertically.
Power off
After completing the flight, turn off the drone first and then the remote controller.
Please do not touch the motor after the aircraft just landed!
< Setting
IM)
Wi-Fi
Ground-******
WLAN setting
Done
Copyright C-Fly all rights reserved Copyright © C-Fly all rights reserved
