C-Fly FAITH 2 User Manual page 4

Note
• Please use micro SD card with transmission
speed of Class 10 and above or UHS-1 rating
• Do not install or remove the TF card while the
aircraft is powered on. Otherwise, errors will occur
for the data stored.

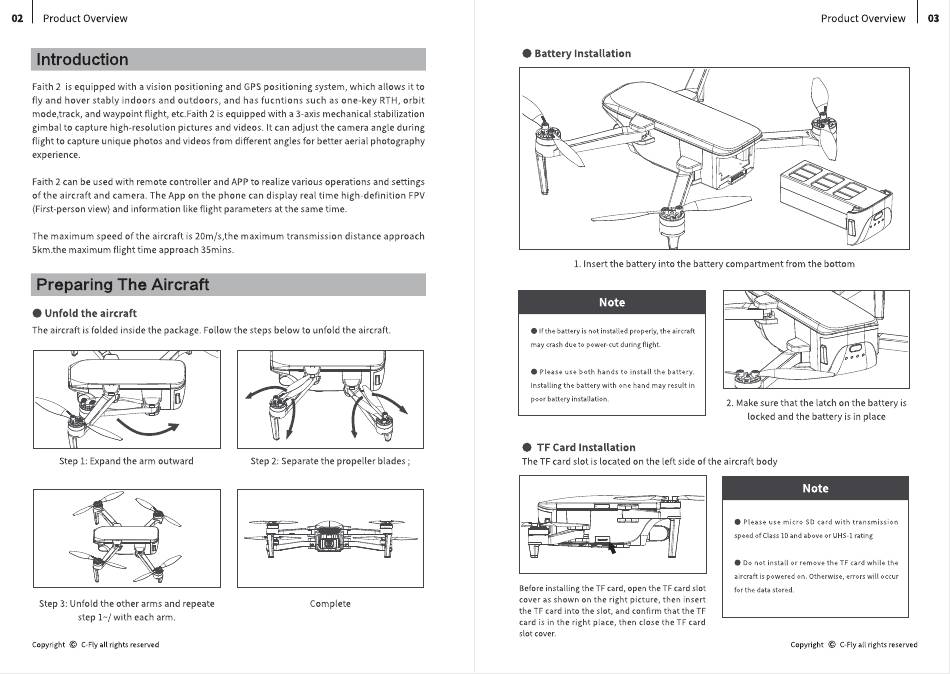

02 I Product Overview Product Overview I 03
Introductio
Faith 2 is equipped with a vision positioning and GPS positioning system, which allows it to
fly and hover stably indoors and outdoors, and has fucntions such as one-key RTH, orbit
mode,track, and waypoint flight, etc.Faith 2 is equipped with a 3-axis mechanical stabilization
gimbal to capture high-resolution pictures and videos. It can adjust the camera angle during
flight to capture unique photos and videos from different angles for better aerial photography
experience.
Faith 2 can be used with remote controller and APP to realize various operations and settings
of the aircraft and camera. The App on the phone can display real time high-definition FPV
(First-person view) and information like flight parameters at the same time.
The maximum speed of the aircraft is 20m/s,the maximum transmission distance approach
5km.the maximum flight time approach 35mins.
PriMihe
Aircr
• Unfold the aircraft
The aircraft is folded inside the package. Follow the steps below to unfold the aircraft.
Step 1: Expand the arm outward Step 2: Separate the propeller blades ;
• Battery Installation
1. Insert the battery into the battery compartment from the bottom
Note
2. Make sure that the latch on the battery is
locked and the battery is in place
• TF Card Installation
The TF card slot is located on the left side of the aircraft body
• If the battery is not installed properly, the aircraft
may crash due to power-cut during flight.
• Please use both hands to install the battery.
Installing the battery with one hand may result in
poor battery installation.
Step 3: Unfold the other arms and repeate
step 1-/ with each arm.
Complete
Before installing the TF card, open the TF card slot
cover as shown on the right picture, then insert
the TF card into the slot, and confirm that the TF
card is in the right place, then close the TF card
slot cover.
Copyright
©
C
-
Fly all rights reserved Copyright © C-Fly all rights reserved
