36 I Appendix Appendix I 37

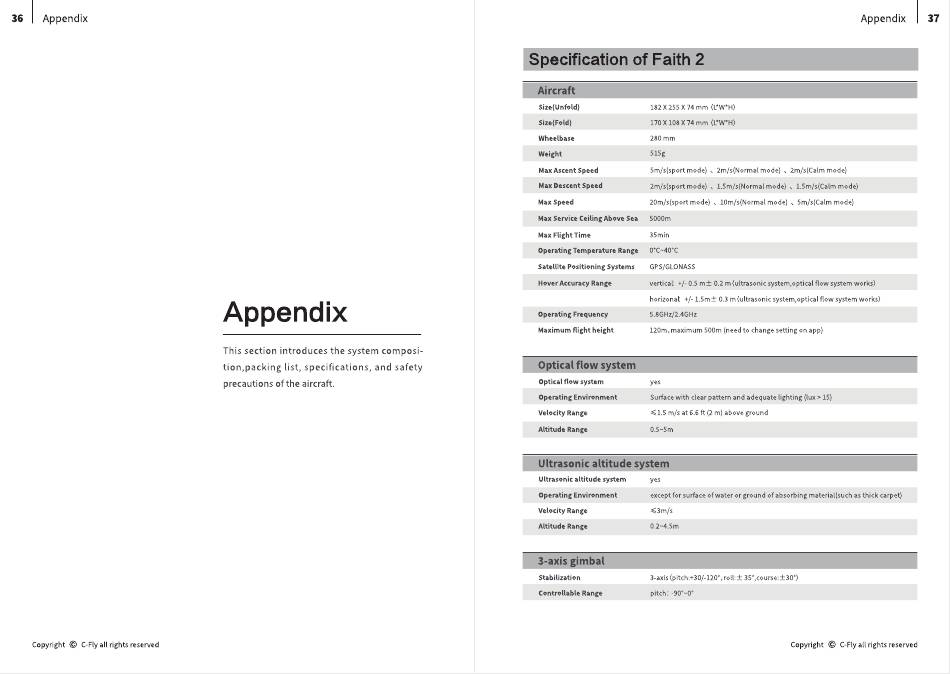

Specification of
F411.1 6_
Appendix
Aircraft
Size(Unfold) 182 X 255 X 74 mm (L*W*H)
Size(Fold)
170 X 108 X 74 mm (L*W*H)
Wheelbase 280 mm
Weight
515g
Max Ascent Speed
5m/s(sport mode) , 2m/s(Normal mode) , 2m/s(Calm mode)
Max Descent Speed 2m/s(sport mode) , 1.5m/s(Normal mode) , 1.5m/s(Calm mode)
Max Speed
20m/s(sport mode) , 10m/s(Normal mode) , 5m/s(Calm mode)
Max Service Ceiling Above Sea
5000m
Max Flight Time
35min
Operating Temperature Range 0°C-40°C
Satellite Positioning Systems GPS/GLONASS
Hover Accuracy Range
vertical +F 0.5 m± 0.2 m (ultrasonic system,optical flow system works)
horizonat +/- 1.5m ± 0.3 m (ultrasonic system,optical flow system works)
Operating Frequency
5.8GHz/2.4GHz
Maximum flight height
120m, maximum 500m (need to change setting on app)
This section introduces the system composi-
tion,packing list, specifications, and safety
Optical flow system
precautions of the aircraft.
Optical flow system
yes
Operating Environment
Surface with clear pattern and adequate lighting (lux > 15)
Velocity Range
41.5 m/s at 6.6 ft (2 m) above ground
Altitude Range 0.5-5m
Ultrasonic altitude system
Ultrasonic altitude system
yes
Operating Environment
except for surface of water or ground of absorbing material(such as thick carpet)
Velocity Range 53m/s
Altitude Range
0.2-4.5m
3-axis gimbal
Stabilization 3-axis (pitch:+30/420°, roll:± 35°,course:±30°)
Controllable Range
pitch: -90, 0°
Copyright
©
C-Fly all rights reserved Copyright
©
C-Fly all rights reserved
