Power On And Power Off; Function And Status Of Remote Controller - C-Fly FAITH 2 User Manual

Power
Flight Mode
Indicator
Flight Mode Switch
4:
Green light flashing (charging)
• Green light turns solid (charging complete)
00000000000 00000000000
Slide the control slider to the left,
The camera rotates down
Slide the control slider to the right,
The camera rotates up. \
14
I Remote Controller Remote Controller I
15

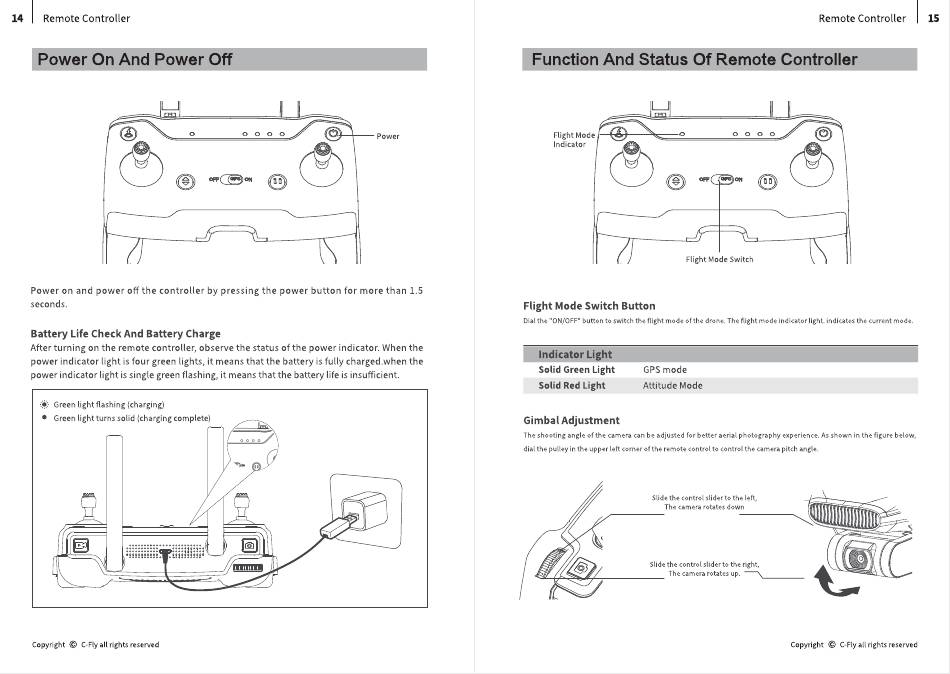

Power On And Power Off Function And Status Of Remote Controller
Power on and power off the controller by pressing the power button for more than 1.5
seconds.
Battery Life Check And Battery Charge
After turning on the remote controller, observe the status of the power indicator. When the
power indicator light is four green lights, it means that the battery is fully charged.when the
power indicator light is single green flashing, it means that the battery life is insufficient.
Flight Mode Switch Button
Dial the "ON/OFF" button to switch the flight mode of the drone. The flight mode indicator light. indicates the current mode.
Indicator Light
Solid Green Light GPS mode
Solid Red Light Attitude Mode
Gimbal Adjustment
The shooting angle of the camera can be adjusted for better aerial photography experience. As shown in the figure below,
dial the pulley in the upper left corner of the remote control to control the camera pitch angle.
Copyright
©
C-Fly all rights reserved Copyright
©
C-Fly all rights reserved
