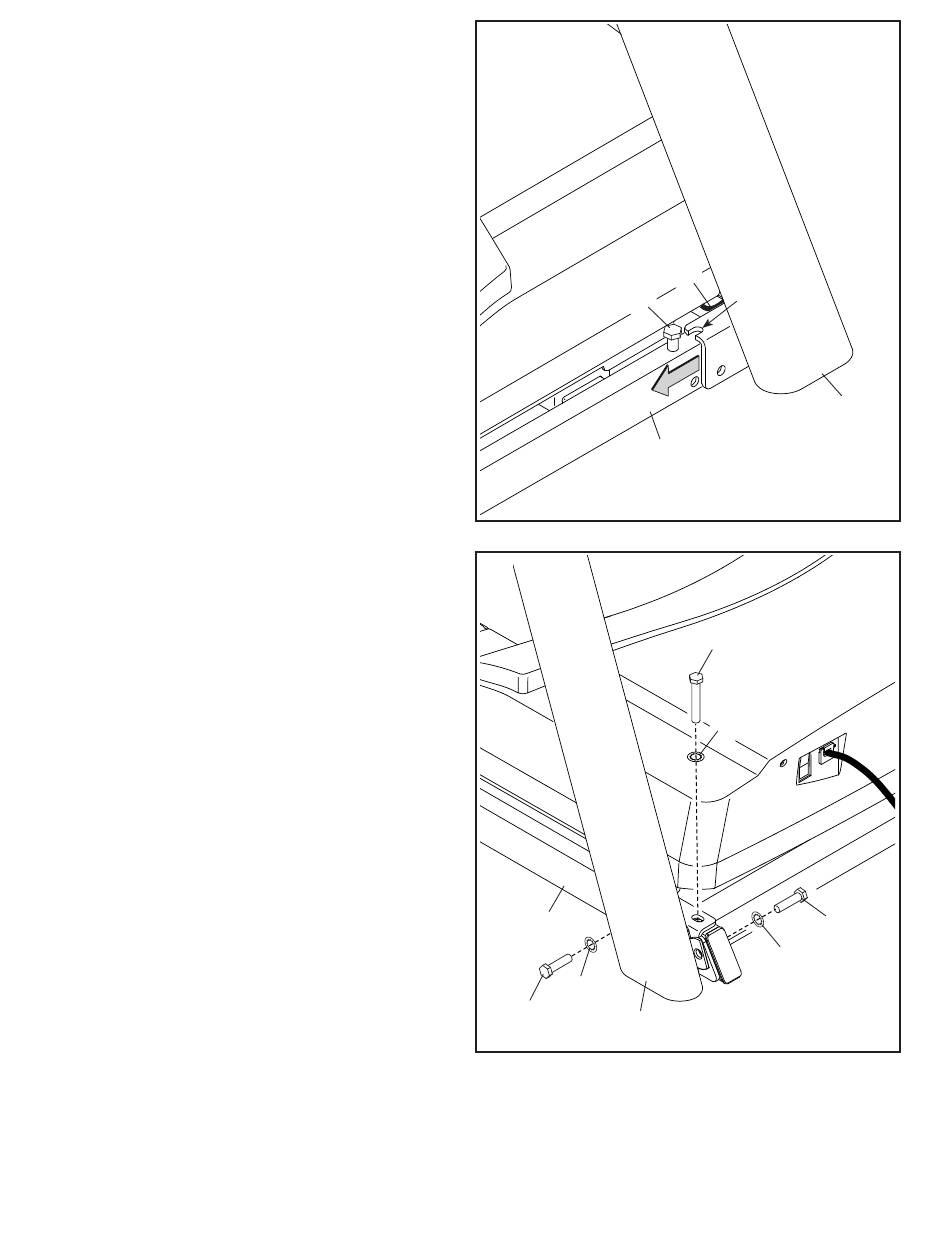

4. Set the Right Upright (79) on the Base (88) as
shown. Make sure not to pinch the Upright
Wire (80). Slide the Right Upright so that the
3/8" x 2 3/8" Screw (2) in the Base is inserted
into the slot in the Right Upright. Do not tighten
the Screw yet.
5. Attach the Right Upright (79) to the Base (88)
with a 3/8" x 2 3/8" Screw (2), a 3/8" x 1 1/4"
Screw (3), a 3/8" x 1 1/2" Screw (4), and three
3/8" Star Washers (6) as shown; do not fully
tighten the Screws yet.
Attach the Left Upright (not shown) as
instructed in steps 4 and 5. Note: There are no
wires on the left side.
4
2
5
88
6
3
79
10
80
Slot
88
2
6
4
6
79
