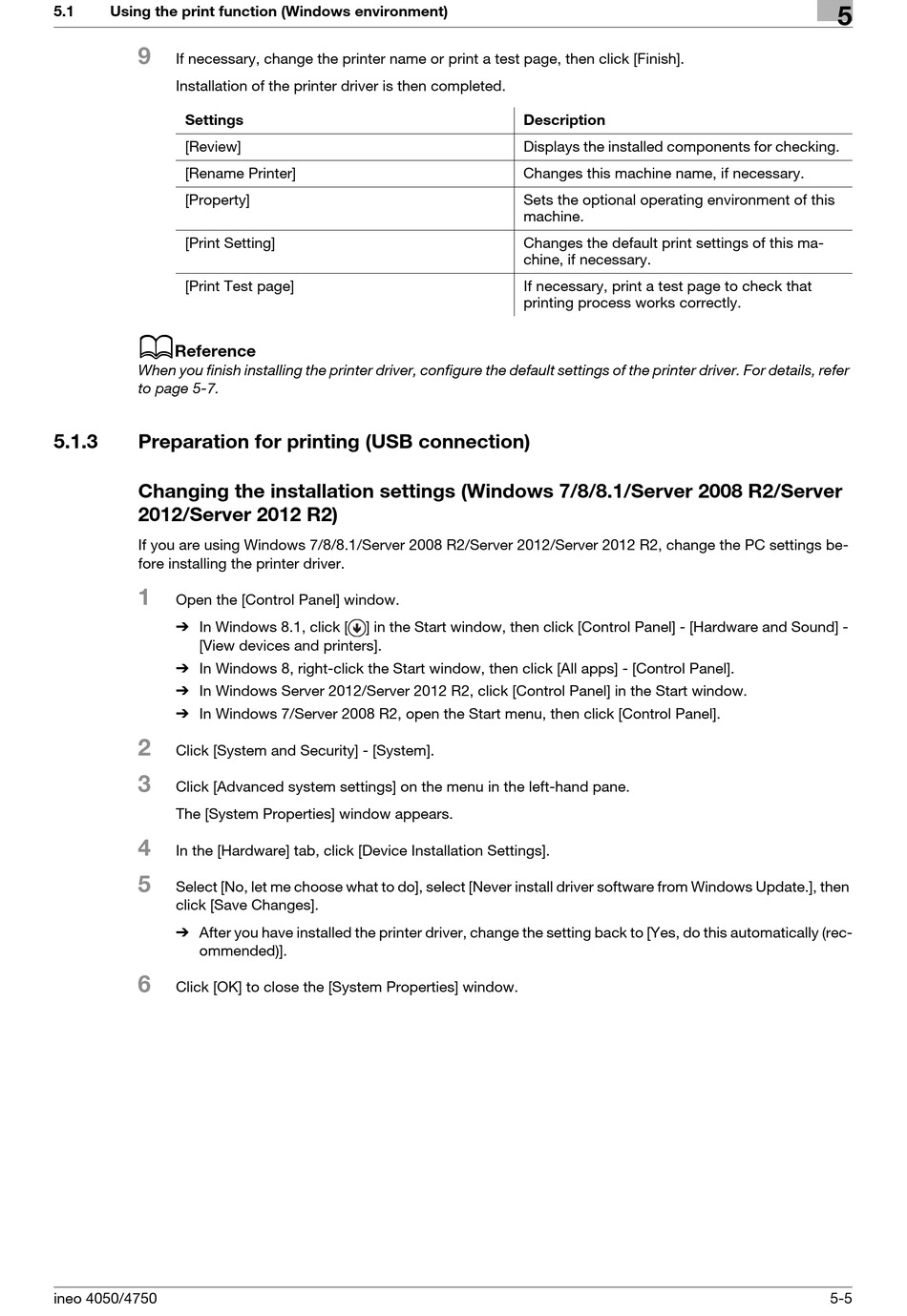

5.1 Using the print function (Windows environment)
9
If necessary, change the printer name or print a test page, then click [Finish].
Installation of the printer driver is then completed.
Settings
[Review]
[Rename Printer]
[Property]
[Print Setting]
[Print Test page]
d
Reference
When you finish installing the printer driver, configure the default settings of the printer driver. For details, refer
to page 5-7.
5.1.3

Preparation for printing (USB connection)

Changing the installation settings (Windows 7/8/8.1/Server 2008 R2/Server
2012/Server 2012 R2)
If you are using Windows 7/8/8.1/Server 2008 R2/Server 2012/Server 2012 R2, change the PC settings be-
fore installing the printer driver.
1
Open the [Control Panel] window.
% In Windows 8.1, click [
[View devices and printers].
% In Windows 8, right-click the Start window, then click [All apps] - [Control Panel].
% In Windows Server 2012/Server 2012 R2, click [Control Panel] in the Start window.
% In Windows 7/Server 2008 R2, open the Start menu, then click [Control Panel].
2
Click [System and Security] - [System].
3
Click [Advanced system settings] on the menu in the left-hand pane.
The [System Properties] window appears.
4
In the [Hardware] tab, click [Device Installation Settings].
5
Select [No, let me choose what to do], select [Never install driver software from Windows Update.], then
click [Save Changes].
% After you have installed the printer driver, change the setting back to [Yes, do this automatically (rec-
ommended)].
6
Click [OK] to close the [System Properties] window.
ineo 4050/4750
Description
Displays the installed components for checking.
Changes this machine name, if necessary.
Sets the optional operating environment of this
machine.
Changes the default print settings of this ma-
chine, if necessary.
If necessary, print a test page to check that
printing process works correctly.
] in the Start window, then click [Control Panel] - [Hardware and Sound] -
5
5-5
