Overview
The IOB-RVC interfaces a single backup camera input to the factory media screen in select GM
vehicles equipped with 7" MYLINK (IOB) media systems. With additional parts, HDMI input or
Navigation is available with this unit (available soon). Audio integration requires the use of the
OEM AUX input if adding an A/V source.

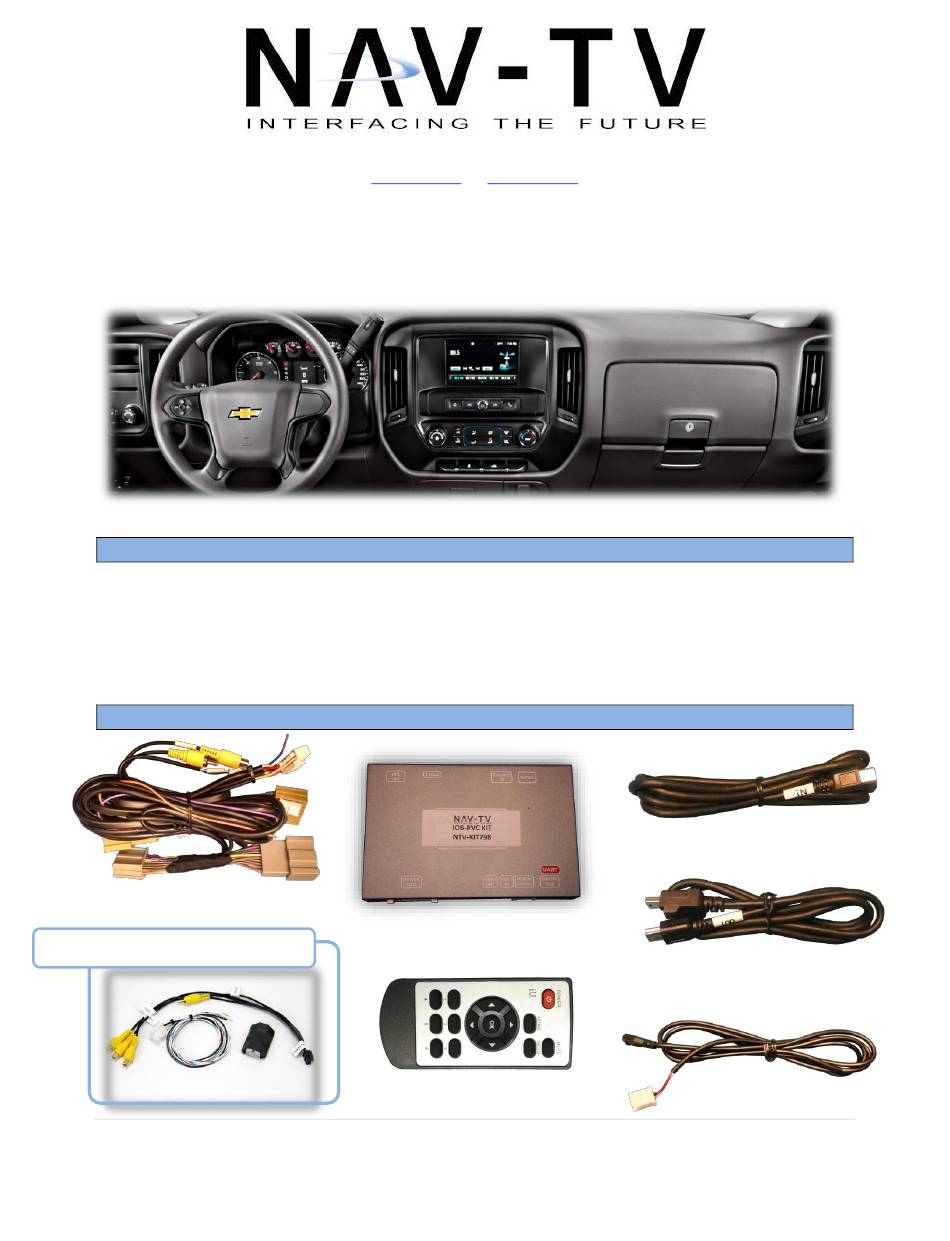

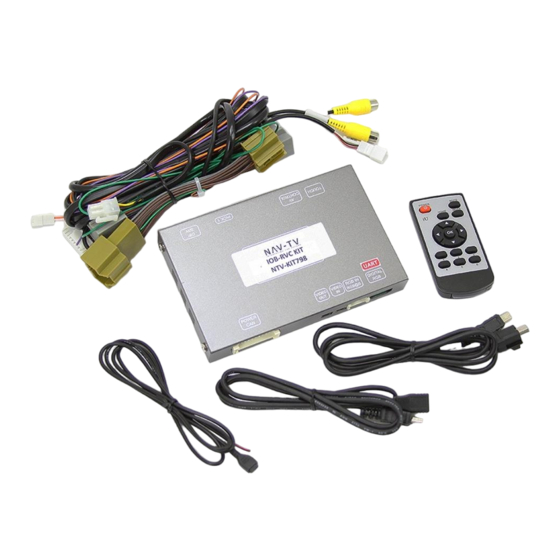

Kit Content
LVDS Input cable
Power/CAN T-Harness
IOB-RVC Interface
Optional VSW-R for front camera
LVDS Output cable
OSD Menu Remote
IR Eye Harness
:
Agreement
End user agrees to use this product in compliance with all State and Federal laws. NAV-TV Corp. would not be held liable for
misuse of its product. If you do not agree, please discontinue use immediately and return product to place of purchase. This product is
intended for off-road use and passenger entertainment only.
1 |
P a g e
Advertisement
Table of Contents
Related Manuals for Nav TV IOB-RVC
Summary of Contents for Nav TV IOB-RVC
- Page 1 NTV-KIT798 Overview The IOB-RVC interfaces a single backup camera input to the factory media screen in select GM vehicles equipped with 7” MYLINK (IOB) media systems. With additional parts, HDMI input or Navigation is available with this unit (available soon). Audio integration requires the use of the OEM AUX input if adding an A/V source.
- Page 2 11/11/16 NTV-DOC285 Interface Connectors RGB Input OUOUT LVDS OUT LVDS IN Digital RGB (HMDI/NAV) Power/CAN (to screen) (from Radio) requires adapter OUOUT AV Expansion board NOT USED Dip Switches Touch data connection Dip Switch Settings* Configure prior to installation Dip SW: Leave camera DOWN...
- Page 3 4. Connect the OEM LVDS Video Cable previously removed from the screen (not the radio) to the port on the IOB-RVC interface labeled ‘VIDEO IN’ (use provided extension if necessary). 5. Connect the provided LVDS Output Cable from the ‘VIDEO OUT’ connector on the module, directly to the screen LVDS Video port.
- Page 4 11/11/16 NTV-DOC285 IOB-RVC Operation After all connections are made and dip switches set properly, start the vehicle. Placing the vehicle in reverse will show the connected rear camera, with dynamic guidelines overlaid onto the media screen. If adding a front camera (requires expansion board), this must be activated in the OSD menu (see page 5).
- Page 5 11/11/16 NTV-DOC285 Setting/Navigating OSD Menu Before you start: The IR-Eye must be connected Make sure the car’s ignition is on and radio is on You must be in Reverse Camera mode AUX Video mode (see Return (AUX VID below): ...
- Page 6 11/11/16 NTV-DOC285 OSD Menu Options (continued) BT-CALL: How a (OEM setup) Bluetooth phone call is handled while in AV/HDMI mode: o ON - When in AV/NAV mode, the unit will transition to the OEM screen when a Bluetooth phone call is active, then return when call is ended. o OFF - There is no screen transition when a BT call is active.
- Page 7 11/11/16 NTV-DOC285 IOB-RVC Connection Diagram Agreement End user agrees to use this product in compliance with all State and Federal laws. NAV-TV Corp. would not be held liable for misuse of its product. If you do not agree, please discontinue use immediately and return product to place of purchase. This product is intended for off-road use and passenger entertainment only.
- Page 8 11/11/16 NTV-DOC285 IOB-RVC FAQ 1. I’ve installed this interface properly, now I have a black screen in park and reverse. a. Make certain the IN and OUT LVDS video cables are connected in the proper location (at the screen and proper direction), and seated fully. The ‘OUT’ cable should go directly to the screen, and the ‘IN’...
