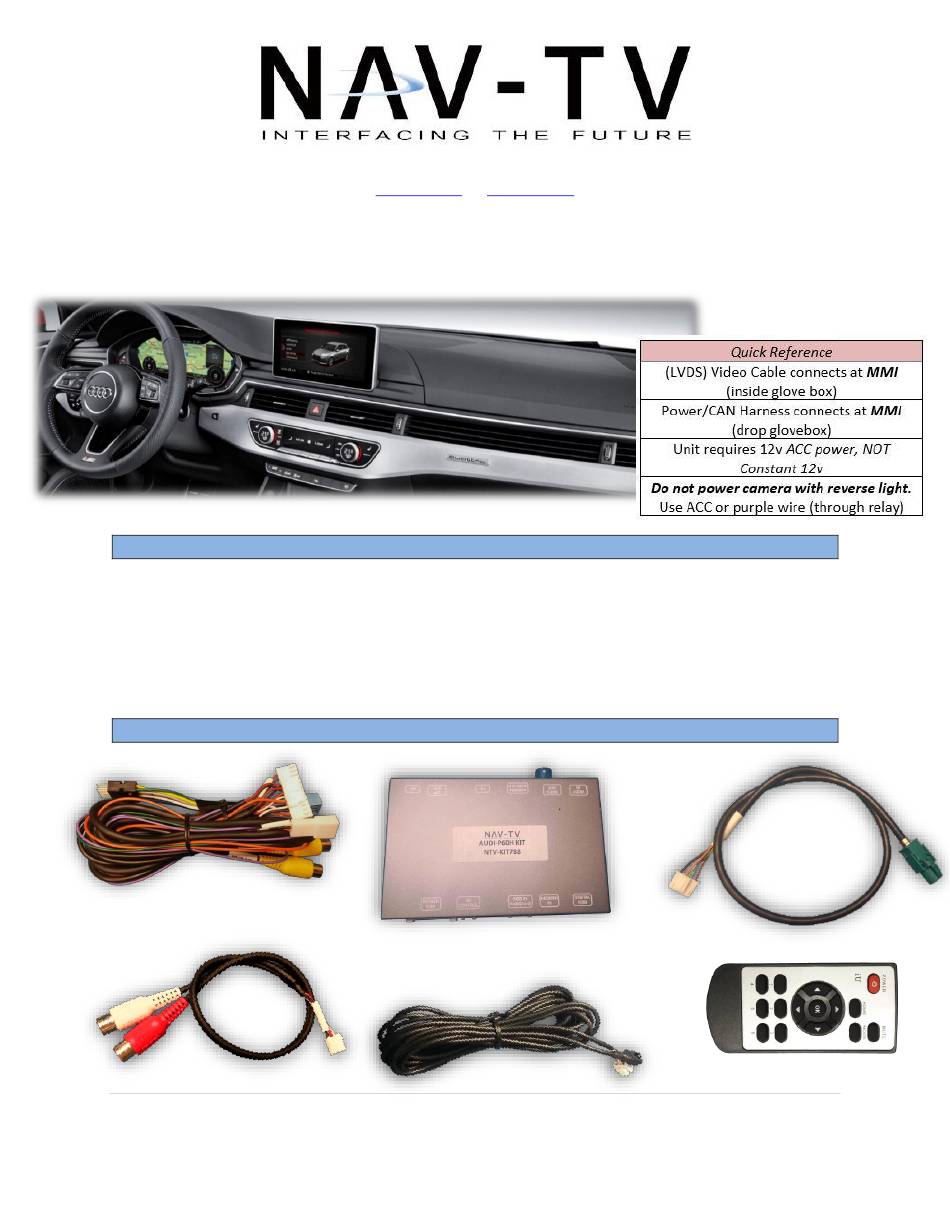

The AUDI-P60H Kit interfaces a backup camera input (with active parking lines), 1 additional
composite video input and an HDMI source into the factory media screen in the 2017 Audi A4,
Q7, TT or R8 vehicles with the brand new (MIB2) MMI system. Installation is performed behind
the MMI module (inside glove box).
cockpit cluster LCD in order for this kit to work.
Power/CAN Harness
Audio Output Cable
:
Agreement
End user agrees to use this product in compliance with all State and Federal laws. NAV-TV Corp. would not be held liable for
misuse of its product. If you do not agree, please discontinue use immediately and return product to place of purchase. This product is
intended for off-road use and passenger entertainment only.
th
Ave, Coral Springs, FL 33065 TEL 561-955-9770 FAX 561-955-9760
www.nav-tv.com
info@nav-tv.com
AUDI-P60H
NTV-KIT788
Overview
NOTE: the vehicle must be equipped with the full virtual-
Kit Contents
AUDI-P60H Interface
Infrared Receiver
BHM
10/17/18
NTV-DOC275
A-Type
LVDS
Video
Cable
OSD Menu Remote
1 |
P a g e
Advertisement
Related Manuals for Nav TV AUDI-P60H
Summary of Contents for Nav TV AUDI-P60H
- Page 1 NTV-KIT788 Overview The AUDI-P60H Kit interfaces a backup camera input (with active parking lines), 1 additional composite video input and an HDMI source into the factory media screen in the 2017 Audi A4, Q7, TT or R8 vehicles with the brand new (MIB2) MMI system. Installation is performed behind the MMI module (inside glove box).
- Page 2 10/17/18 NTV-DOC275 Interface Connectors HDMI Audio OUT Video IN (from radio) Dip Switches IR Receiver Video OUT (to screen) Video Expansion Board RGB IN HDMI Input Digital RGB (for adding NAV) Power/CAN Harness Dip Switch Settings Dip SW: No NAV OEM RVC HIGH RES Keep DOWN...
- Page 3 1. Remove the MMI module located in glove box – this will require an 8mm socket and possibly a right-angle driver. Disconnect any associated harnesses and set the radio aside. 2. Grab the provided ‘Power/CAN Harness’ from the AUDI-P60H kit. Connect the following wires to the car: Interface wires Connect to car Location...
- Page 4 10/17/18 NTV-DOC275 6. Connect the provided 12-pin plug & play portion from the main power harness to the main factory MMI connector as shown below. Pay attention to the orientation, as this is vital to proper operation: Remove gray OEM 12-pin Connect OEM 12-pin to provided 12-pin (black, PIN-side).
- Page 5 8. Connect the video feed from the camera to the RCA among the main power harness labeled ‘CAMERA’. 9. Connect the white plug from the Power/CAN Harness to the port on the AUDI-P60H interface labeled ‘POWER CAN’. 10. Connect the HDMI Cable (not provided) from the HDMI source to the HDMI-IN port on the AUDI- P60H.
- Page 6 10/17/18 NTV-DOC275 AUDI-P60H Operation • If a rear camera was installed, placing the vehicle in reverse will show the connected camera’s image, with dynamic guidelines for convenience. • See below for activating additional video inputs: Steering Wheel Press & hold BACK ARROW (2 seconds) to cycle through installed &...
- Page 7 10/17/18 NTV-DOC275 AUDI-P60H Install Diagram Agreement End user agrees to use this product in compliance with all State and Federal laws. NAV-TV Corp. would not be held liable for misuse of its product. If you do not agree, please discontinue use immediately and return product to place of purchase. This product is intended for off-road use and passenger entertainment only.
- Page 8 10/17/18 NTV-DOC275 Menu Adjustments Before you start: • The IR-Eye must be connected • Make sure the car’s ignition is on and radio is on • You must be in Reverse Camera mode AUX Video mode (see below): Return • (AUX VID Reverse Camera Mode adjusts Reverse Camera Settings •...
- Page 9 10/17/18 NTV-DOC275 AUDI-P60H OSD Menu Options continued • BT-CALL: How a (OEM setup) Bluetooth phone call is handled while in AV/HDMI mode: o ON - When in AV/NAV mode, the unit will transition to the OEM screen when a Bluetooth phone call is active, then return when call is ended.
