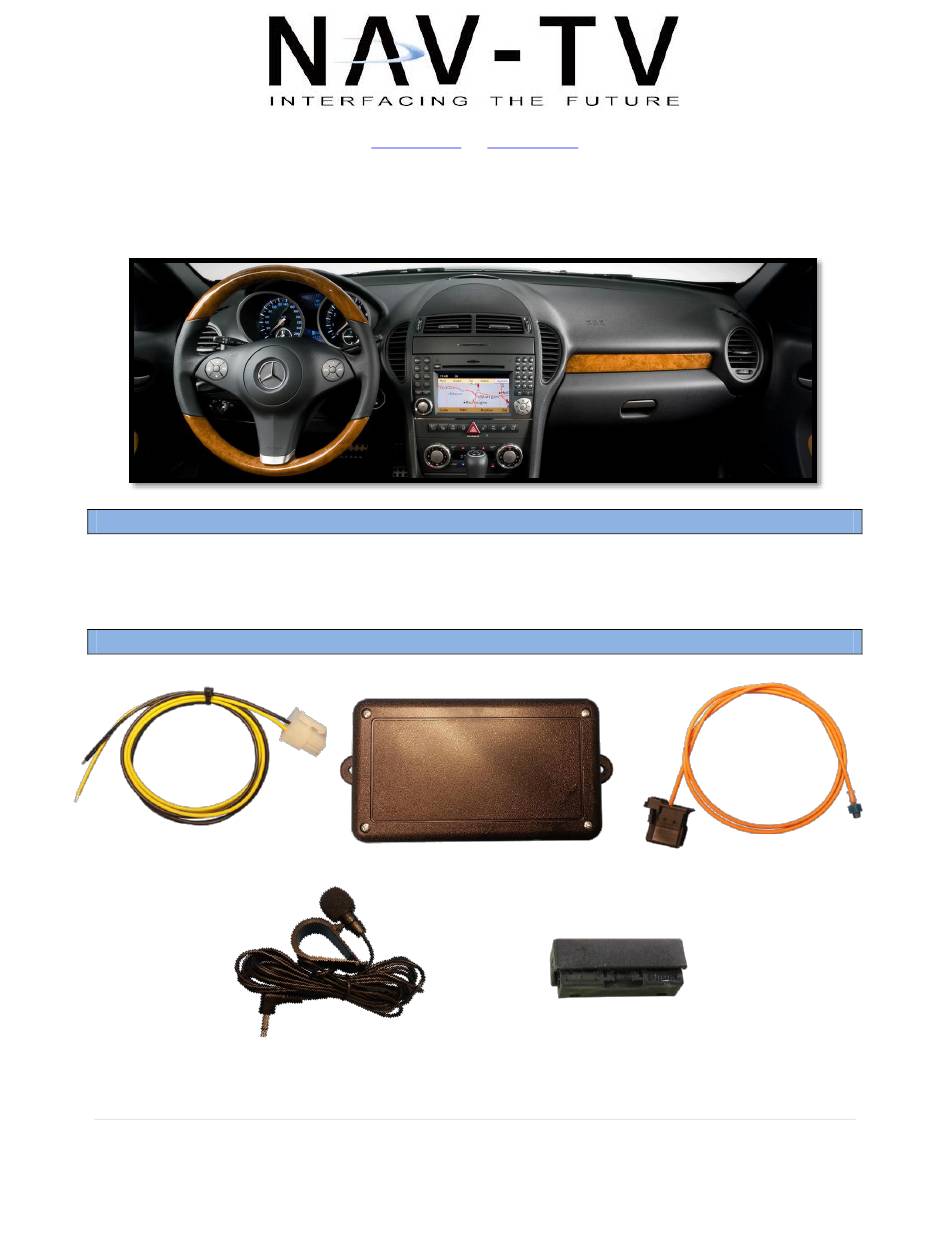

The TOOKI-MB adds hands free calling to the factory MOST fiber optic system in select
Mercedes vehicles. If this Mercedes is equipped with MBRACE, this module is NOT compatible!
Power Harness
NTV-ASY007
NTV-MIC024
:
Agreement
End user agrees to use this product in compliance with all State and Federal laws. NAV-TV Corp. would not be held liable for
misuse of its product. If you do not agree, please discontinue use immediately and return product to place of purchase. This product is
intended for off-road use and passenger entertainment only.
th
Ave, Coral Springs, FL 33065 TEL 561-955-9770 FAX 561-955-9760
www.nav-tv.com
TOOKI-MB
NTV-KIT043/112/288
Overview
Kit Contents
TOOKI Module
NTV-ASY022
TOOKI MIC
info@nav-tv.com
2x Fiber Coupler
NTV-CON001
BHM
04/30/14
NTV-DOC058
Fiber Harness
NTV-ASY003
1 |
P a g e
