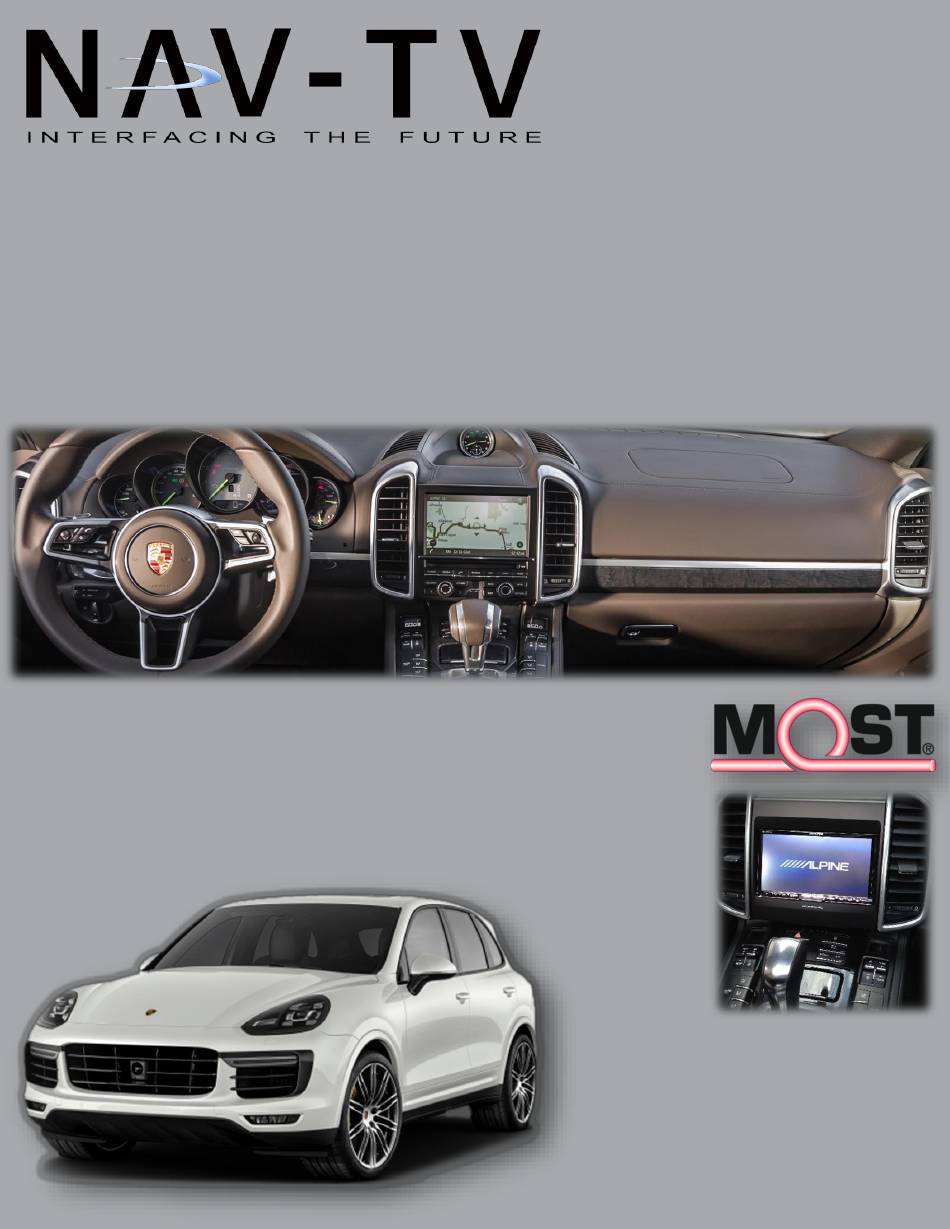

- Page 1 3950 NW 120 Ave, Coral Springs, FL 33065 TEL 561-955-9770 FAX 561-955-9760 MOST-H.U.R. 31 Head Unit Replacement interface for select ‘10-’16 Porsche CDR31 or PCM3.1 radio NTV-KIT835 08/08/17 NTV-DOC300...
- Page 2 NTV-DOC300 Overview The MOST-HUR31 is a radio replacement interface for select Porsche vehicles equipped with PCM3.1 or CDR31 radio & external BOSE M.O.S.T. fiber optic amplifier. The module allows the factory amplifier, speakers and sound quality to be retained when adding a modern aftermarket radio. Other components in the factory system, such as a CD changer, satellite radio, telephone module, DVD player, or any other factory component in the M.O.S.T loop will not need to removed, but will not function after the installation.
- Page 3 Connect the provided fiber connector to the OEM fiber plug b. Connect the new fiber assembly to the MOST-HUR31 interface at the fiber port. 5. Connect the RCAs among the Plug & Play Harness to the low-level pre-outs of the aftermarket radio.
- Page 4 • Once all connections are made, verify sound is heard through the system with the key on. Verify balance and FM radio signal (via the aftermarket head unit). • The following MOST-HUR31/OEM Amplifier adjustments can be made with the OEM steering wheel controls, and feedback is shown through the cluster LCD screen during the process.
- Page 5 • Once all connections are made, verify sound is heard through the system with the key on. Verify balance and FM radio signal (via the aftermarket head unit). • The following MOST-HUR31/OEM Amplifier adjustments can be made with the OEM steering wheel controls, and feedback is shown through the cluster LCD screen during the process.
- Page 6 (OEM similar) MOST-HUR31 SWC Extras control overview • When the cluster is resting on NAVTV HUR (Audio), the MOST-HUR31 offers a feature for track/preset control. This feature is also available for vehicles not equipped with SWC: Vehicles without SWC: use...
- Page 7 08/08/17 NTV-DOC300 Entering / Adjusting HUR Cluster menu without SWC For vehicles without steering wheel controls, press and hold the push button on the side of the HUR module for 10 seconds to enter the menu (wait for complete countdown). Once inside the NAVTV-HUR Audio menu, use the OEM controls shown below to adjust settings.
- Page 8 08/08/17 NTV-DOC300 MOST-HUR31 Diagram NOTE: Not all connections are shown in this diagram. Some optional connections not shown. Agreement End user agrees to use this product in compliance with all State and Federal laws. NAV-TV Corp. would not be held liable for misuse of its product.
