3950 NW 120th Ave, Coral Springs, FL 33065 TEL 561-955-9770 FAX 561-955-9760

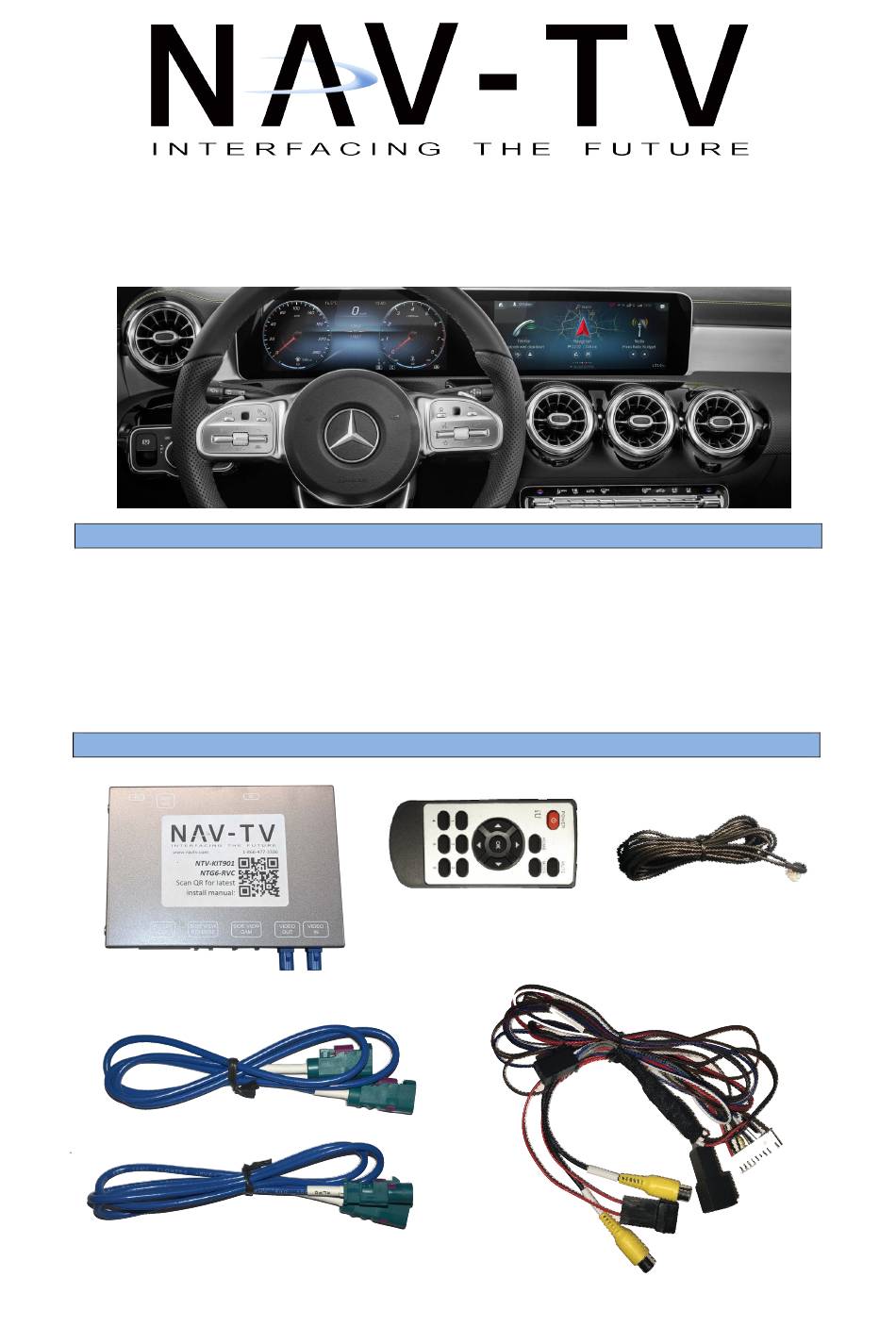

MBUX-RVC
NTV-KIT901
Overview
The MBUX-RVC adds rear camera & front camera to the
factory 7" & 10" equipped in 2019+ Mercedes A-Class, C-
Class and Sprinter. This interface features active moving
guidelines and front camera selectable using either OEM
button or preset timer.
Kit Content
iR Remote sensor
iR Remote
Interface
Power/CAN Harnesses
LVDS
Video
Cables
Page 1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Nav TV MBUX-RVC
Summary of Contents for Nav TV MBUX-RVC
- Page 1 3950 NW 120th Ave, Coral Springs, FL 33065 TEL 561-955-9770 FAX 561-955-9760 MBUX-RVC NTV-KIT901 Overview The MBUX-RVC adds rear camera & front camera to the factory 7" & 10" equipped in 2019+ Mercedes A-Class, C- Class and Sprinter. This interface features active moving guidelines and front camera selectable using either OEM button or preset timer.
- Page 2 Interface EXT TRIGGER POWER / CAN Not Used TO SCREEN TO HARNESS (12V+) DIP SWITCHES Not Used Not Used Not Used Dip Switch Se ngs Dip SW: OEM RVC F CAM OFF SCREEN RES SCREEN RES Keep UP SEE BELOW SEE BELOW Keep DOWN DOWN...
- Page 3 Installa on Diagram HARNESS AT THE CAN CONNECTIONS REAR OF HEAD UNIT Interface wires Connect to vehicle WHITE (CAN LOW) PURPLE or PURPLE / BLACK PURPLE / WHITE BLUE (CAN HIGH) iR REMOTE CAN / POWER CONNECTIONS (AT HEAD UNIT) GREEN WIRE SUPPLIED 12v+ REVERSE...
- Page 4 Installa on HOW TO REMOVE THE DASH REMOVE THE 2 X T20 SCREWS AT THE REAR OF THE SCREEN THE SCREEN WILL JUST LIFT UP ONCE YOU HAVE REMOVED THE 2 X T20 SCREWS, THIS WILL THEN GIVE YOU ACCESS TO THE REAR OF THE SCREEN Page 4...
- Page 5 Installa on LVDS CONNECTIONS (VIDEO) THERE ARE 2 DIFFERENT TYPES OF 7" SCREENS FOR THE A CLASS. THE CONNECTIONS ARE AT THE SAME PLACE (REAR OF THE SCREEN). HOWEVER AS YOU SEE FROM THE FOLLOWING PHOTOS THE PLUGS ARE DIFFERENT. TYPE 1 (2 Fakra connectors) TYPE 2 (1 Fakra connector) Page 5...
- Page 6 Installa on TYPE 1 (2 Fakra connectors) REMOVE THE FAKRA FROM OEM PLUG CONNECT THE CONNECT THE SUPPLIED OEM CABLE CABLE (TO THAT WAS HARNESS - IN) REMOVE FROM TO THE OEM THE OEM PLUG HARNESS TO THE SUPPLIED HARNESS USING THE CONNECT TO PLASTIC FAKRA...
- Page 7 Installa on THE HEAD UNIT IS LOCATED UP IN THE DASH ABOVE THE DRIVERS THROTTLE. DROP THE UNDER DASH PANEL TO GAIN ACCESS Page 7 Page 7...
- Page 8 Installa on CONNECT THE POWER / CAN HARNESS AT THE HEAD UNIT. Page 8...
-
Page 9: Can Connections
Installa on CAN CONNECTIONS THERE ARE 2 DIFFERENT TYPES OF HEAD UNIT FOR THE A CLASS. THE CAN CONNECTIONS ARE CONNECTED AT THE SAME PLACE (REAR OF THE HEAD UNIT). HOWEVER AS YOU SEE FROM THE FOLLOWING PHOTOS THE PLUGS ARE DIFFERENT. TYPE 1 CAN CONNECTIONS Interface wires... - Page 10 Installa on CAN CONNECTIONS TYPE 2 CAN CONNECTIONS Interface wires Connect to vehicle WHITE (CAN LOW) PURPLE or PURPLE / BLACK PURPLE / WHITE BLUE (CAN HIGH) Page 10...
- Page 11 Side Camera Installation (only) If you're installing turn signal cameras and the vehicle already has an OEM reverse camera, make connections according to this digram below: If you're installing turn signal cameras and a reverse camera, a VSW-R is required and you must make connections according to the diagram on the next page.
- Page 12 Side Camera & Reverse Camera Installation If you're installing turn signal cameras and a reverse camera, a VSW-R is required and you must make connections according to this diagram below: - For this installation scenario, set up the 'AV-TYPE' menu to 'L-AV + R-CAMERA': 1.
- Page 13 Menu Adjustments Before you start: · The IR-Eye must be connected · Make sure the car’s igni on is on and radio is on · You must be in Reverse Camera mode (place vehicle in reverse) · Press the OK BUTTON 4 mes (numbers will display per press), then press POWER.
- Page 14 Opera on REAR CAMERA Once the interface is connected properly, reverse ac va on is automa c. Placing the vehicle in reverse will display the connected camera’s image automa cally. Note: If display doesn’t switch to reverse image when shi ing into reverse or screen is distorted, check dip switch se ngs on page 2.
