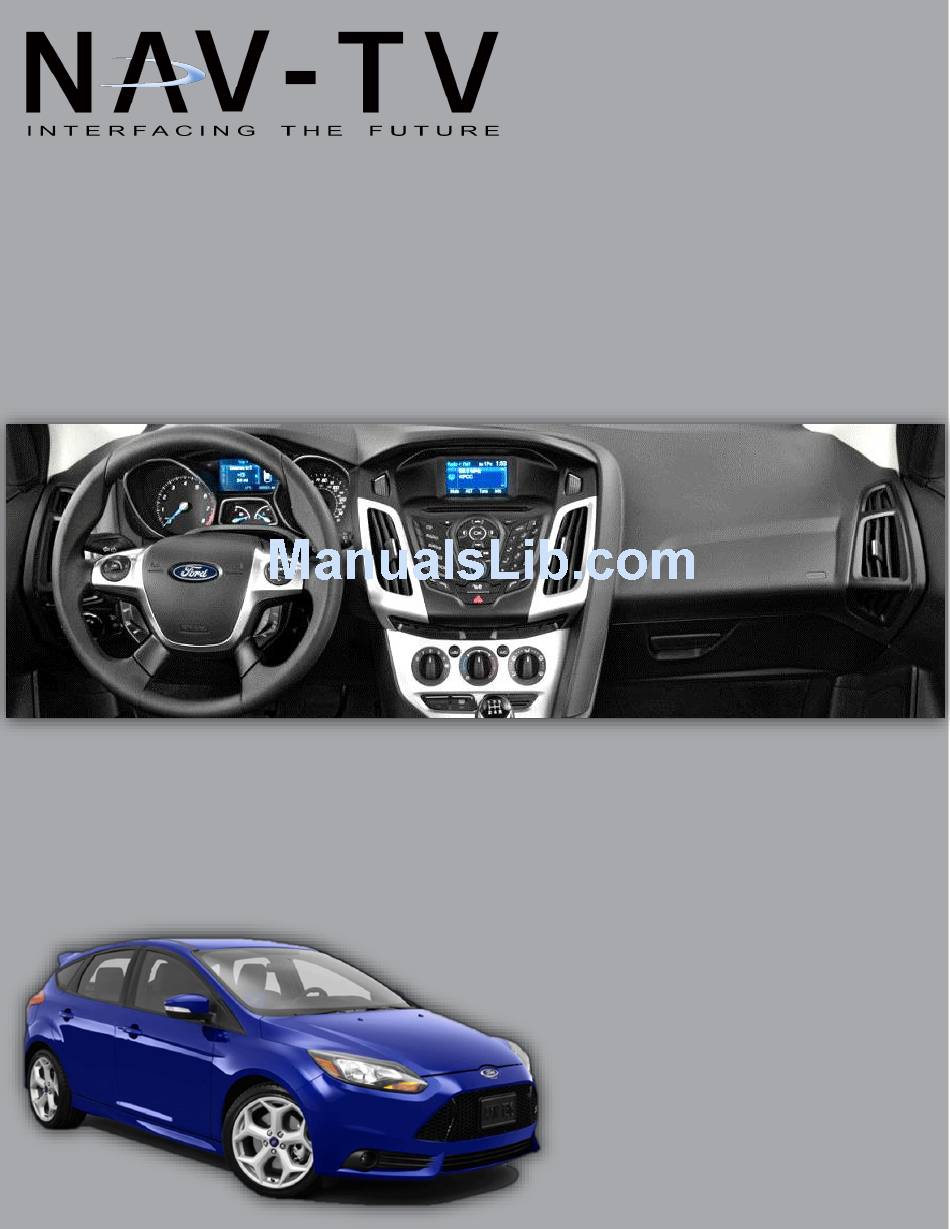

- Page 1 3950 NW 120 Ave, Coral Springs, FL 33065 TEL 561-955-9770 FAX 561-955-9760 Ford 4” UNI-CAM Dual rear-camera integration kit for Ford 4” screens NTV-KIT600 05/01/15 NTV-DOC211...

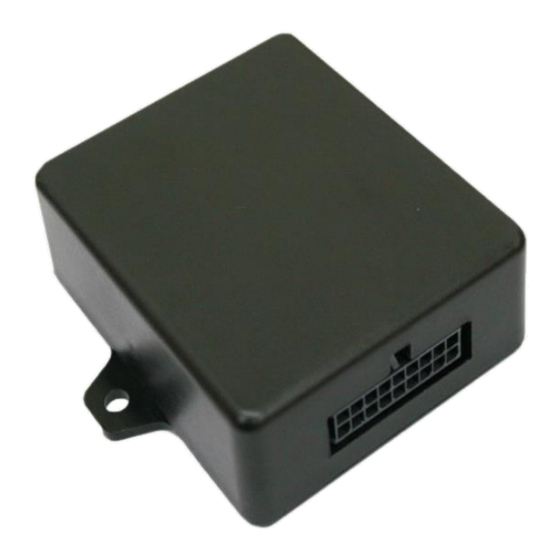

- Page 2 05/01/15 NTV-DOC211 Overview The Ford 4” UNI-CAM kit interfaces an aftermarket rear camera into Ford vehicles equipped with the OEM 4” media screen. No dealership programming is required and this kit if fully Plug & Play behind the factory media screen. Kit Contents Optional Reverse Cameras CAM 6...
- Page 3 05/01/15 NTV-DOC211 Module Installation 1. Remove the 4” media screen from the dashboard, above the CD player. 2. Connect the provided Plug & Play T-Harness to the OEM ford 12-pin plug previously connected to the radio. 3. After installing and running your reverse camera to the dash opening, connect your RVC signal to the RED RCA found on the Plug &...
- Page 4 05/01/15 NTV-DOC211 Ford 4” UNI-CAM Programming & Testing Programming for the 4” UNI-CAM is automatic. After all connections are properly made and the module is connected, turn the car on to IGNITION, wait for the radio to fully boot and settle before testing functionality. NOTES: ...
-
Page 5: Installation Diagram
05/01/15 NTV-DOC211 Installation Diagram NOTES: Any wires not shown here are not needed for this installation. Not all wires shown here will be used for every installation. If installing ONLY rear camera, you may connect signal directly to the ‘Supplied RCA’ Agreement End user agrees to use this product in compliance with all State and Federal laws. - Page 6 05/01/15 NTV-DOC211 Ford 4” Screen Compatibility list Incompatible Display PART #’s EM5T-18B955-CB CM5T-18B99-AD CJ5T-18B955-GF EM5T-18B955-CA CM5T-18B955-GF CJ5T-18B955-GE EJ5T-18B955-GB CM5T-18B955-CE CJ5T-18B955-GC DM5T-18B955-CD CM5T-18B955-AD CE8T-18B955-AD DA6T-18B955-BE CM5T-18B955-AB CE8T-18B955-AA D2BT-18B955-BE BT4T-19C116-CN BB5T-19C116-CJ Compatible Display PART #’s FG1T-18B955-CA EJ5T-18B955-GA DT4T-19C116-GB DL3T-18B955-CC CM5T-18B955-GD FB5T-19C116-GA EJ5T-18B955-CC DT4T-19C116-CD DG1T-18B955-CD CM5T-18B955-GB...
