6 ADS8354EVM-PDK Operation

The following instructions are a step-by-step guide for connecting the device to a computer and evaluating the
performance of the device.
1. Connect the device EVM to the PHI board.
2. Use the provided USB cable to connect the PHI to the computer.
LED D5 on the PHI lights up, indicating that the PHI is powered up.
LEDs D1 and D2 on the PHI start flashing, indicating that the PHI is booted up and communicating with
the PC.
3. Launch the device EVM GUI software from the installed path, as
shortcut created during installation.
SBAU407 – APRIL 2023
Submit Document Feedback

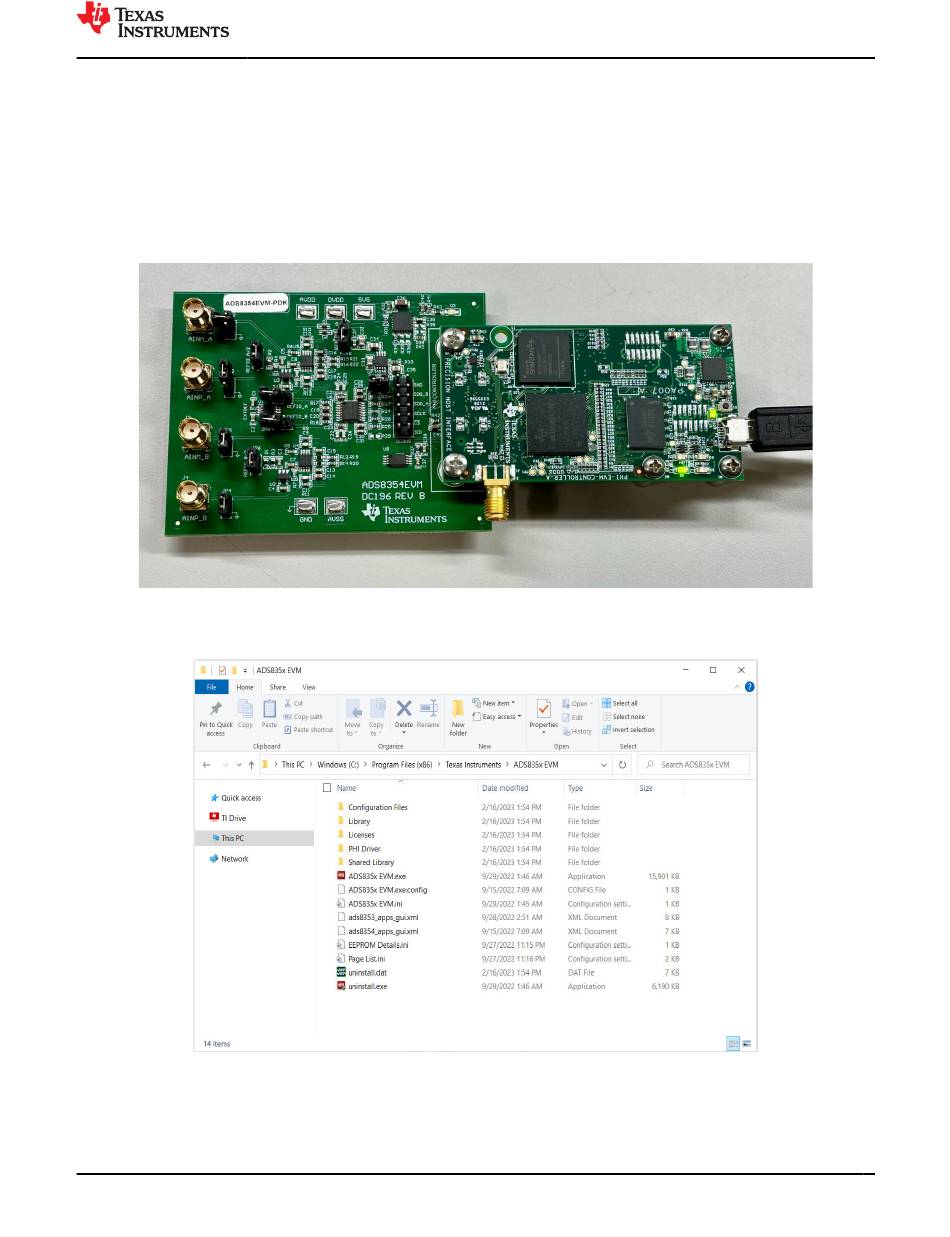

Figure 6-1

Figure 6-1. EVM-PDK Hardware Setup and LED Indicators

Figure 6-2. Launch the EVM GUI Software

Copyright © 2023 Texas Instruments Incorporated
indicates where the screws are to be installed.
Figure 6-2
shows, or by using the desktop
ADS8354EVM-PDK Evaluation Module
