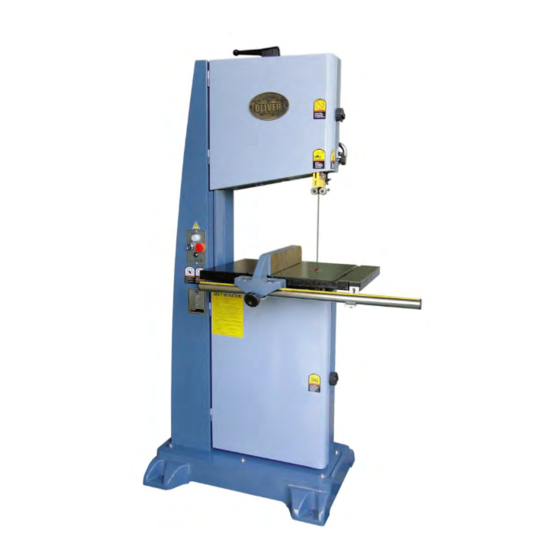

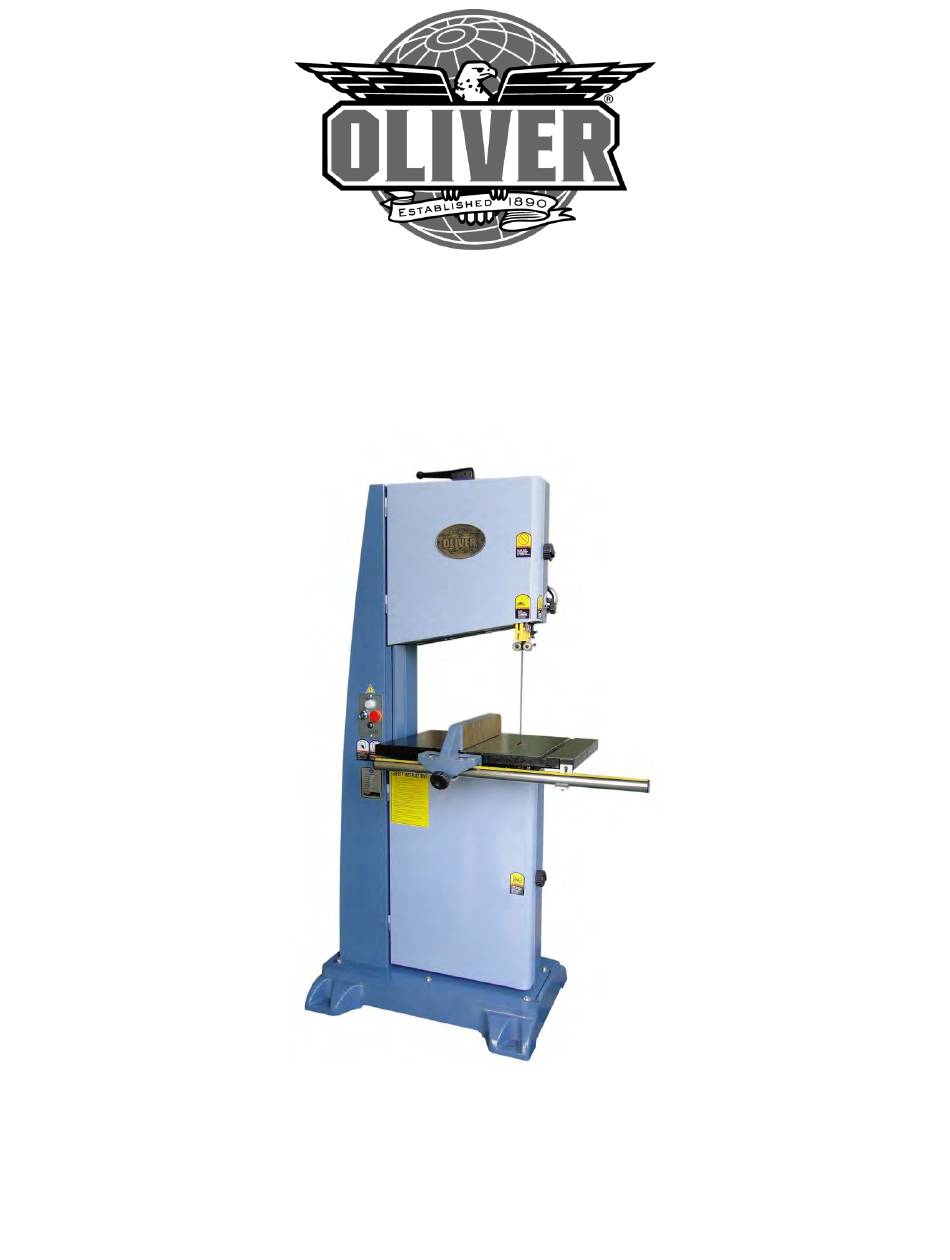

- Page 1 4630 18” Bandsaw Owner’s Manual Oliver Machinery M-4630 9/2003 Seattle, WA Copyright 2003 info@olivermachinery.net www.olivermachinery.net...
-
Page 3: Safety Rules
SAFETY RULES WARNING: FAILURE TO FOLLOW THESE RULES MAY RESULT IN SERIOUS PERSONAL INJURY. 1. FOR YOUR OWN SAFETY, READ INSTRUCTION MANUAL BEFORE OPERATING THE TOOL. Learn the tool’s application and limitations as well as the specific hazards peculiar to it. 2. - Page 4 11. USE PROPER EXTENSION CORD. Make sure your extension cord is in good condition. When using an extension cord, be sure to use one heavy enough to carry the current your product will draw. An undersized cord will cause a drop in line voltage resulting in loss of power and overheating. Table 1 shows the correct size to use depending on cord length and nameplate ampere rating.
- Page 5 21. CHECK DAMAGED PARTS. Before further use of the tool, a guard or other part that is damaged should be carefully checked to determine that it will operate properly and perform its intended function-check for alignment of moving parts, binding of moving parts, breakage of parts, mounting, and any other conditions that may affect its operation.
- Page 6 SAVE THESE INSTRUCTIONS ADDITIONAL SAFETY RULES FOR BAND SAWS 1. If you are not thoroughly familiar with the operation of band saws, obtain advice from your supervisor, instructor or other qualified person. 2. Follow all wiring codes and recommended electrical connections. Make certain that the tool is properly grounded.
- Page 7 15. Make relief cuts before cutting long curves. 16. Do not cut material that is too small to be safely supported. 17. Support long heavy work from the floor. 18. Before leaving the machine, make sure the work area is clean. 19.
-
Page 8: Grounding Instructions
GROUNDING INSTRUCTIONS 1. All grounded, cord-connected tools: In the event of a malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. This tool is equipped with an electric cord having an equipment-grounding conductor and a grounding plug. - Page 9 until a properly grounded outlet can be installed by a qualified electrician. The green-colored rigid ear, lug, and the like, extending from the adapter must be connected to a permanent ground such as a properly grounded outlet box. 3. Grounded, cord-connected tools intended for use on a supply circuit having a nominal rating between 150-250 volts, inclusive: This tool is intended for use on a circuit that has an outlet that looks like the one illustrated in Sketch D in Figure 1.
- Page 10 ADAPTER GROUNDING GROUNDING MEANS Table 1 Minimum gage for cord Volta Total length of cord in feet 120V 25ft. 50ft. 100ft. 150ft. Ampere Rating 240V 50ft. 100ft. 200ft. 300ft. More More Than Than Recommended...
-
Page 11: Warning Plates
WARNING PLATES This machine has warning symbols attached on it as shown below to ensure proper and safe operation. These symbols are used on the machine to indicate points or instances of specific danger to operating personnel. Make sure to memorize these symbols and bring them to the attention of others as and when necessary. - Page 12 A. Quick Release Tension Handle B. Door Knob C. Guide Post Handlewheel D. Ball Bearing Guide Support E. Blade F. Fence G. Working Table H. Switch I. Casting Iron Base...
- Page 13 FEATURES Motor – 2HP, Single Phase 220 Volts. Motor Speed – 3450 RPM. Motor Switch – Magnetic. Blade Speed – 1,480, 2,300 & 3,260 FPM. Fully Balanced Cast Iron Wheels with Coplanar Shim Adjustments. Table Size – 18" X18" with 6” steel wing on the left. ...
- Page 14 INSTALLAITON SAFETY RULES FOR MACHINE LIFTING 1. Pay special attention to the balance of the machine while lifting. 2. Use a forklift with sufficient loading capacity to lift the machine. 3. Have another person help guide the way when lifting the machine. 4.
- Page 15 the machine to open or remove doors/covers as required by the maintenance and service described in this manual. Electrical Installation Place this machine near an existing power source. Make sure all power cords are protected from traffic, material handling, moisture, chemicals, or other hazards. Make sure to leave assess to a means of disconnection the power source or engaging a lockout/tagout device.
- Page 16 INSTALL...
-
Page 18: Fence Adjustment
FENCE ADJUSTMENT ADJUSTING SCREW TABLE 90 ﾟ Shaft for 90°... - Page 19 FENCE BODY TABLE To level and adjust the height of the fence, loosen the bolt that hold the mounting brackets to the table, and raise or lower the front rails along the elongated holes in the mounting brackets. Level the fence, front and back as needed, and set the spacing between the bottom of the fence and the table to 1mm (approx.) as shown in image.
-
Page 20: Power Supply Requirement
POWER SUPPLY REQUIREMENT Insufficient voltage from factory power source may affect the power output of the motor and the function of the controller. It is important to connect this machine to the correct voltage in the factory power source. Use only an independent power source. 3.7 CONNECT POWER SOURCE WIRES 1. - Page 21 ADJUSTMENT TABLE ASSEMBLY 1. Place table bracket on the bandsaw so that the two bracket pins can go into the holes on the support. 2. Secure table bracket to bandsaw body using the two hex head bolt and flat washers(Fig.1) 3.
- Page 22 Quick release / blade tensioning Lifting the quick release handle to release blade tension. Remove blade and replace with new one. Turn down the handle to tighten blade. Turn the handle clockwise to minor tighten blade tension and counterclockwise to release blade tension.
- Page 23 Adjusting lower blade support bearing The lower bearing adjustments are similar to the upper bearing adjustments. The blade support bearing (A) should be adjusted so it almost touches the back of the saw blade. To adjust, loosen hex screw (B) and slide bracket in or out until the adjustment is correct.
-
Page 24: Troubleshooting
Troubleshooting ! WARNING Disconnect the machine from power source before proceeding with any troubleshooting! Failure to comply may cause serious injury! Description of Symptoms Possible Cause Corrective Action 1. Fuse blown or circuit 1. Replace fuse or reset breaker tripped circuit breaker 2. -
Page 25: Parts Diagram
PARTS DIAGRAM... - Page 26 PARTS DIAGRAM...
-
Page 27: Parts List
PARTS LIST... - Page 28 PARTS LIST A 3/8"*1-3/4" SCREW...
- Page 30 PARTS LIST DESCRIPTION FENCE BODY CAP SCREW 10*16 BUTTON HEAD SCREW 5*10MM FENCE BASE SET SCREW 1/4"*1/4" EXTERNAL RETAINING RING S10 BEARING ECCENTRIC SHAFT PRESSURE PLATE SCALE FENCE RAIL FRONT SQUARE NUT 5/16 CAP SCREW L TYPE PLATE KNOB 5/16*5/8 POINTER HEX BOLT 1/4"*3/4"...
