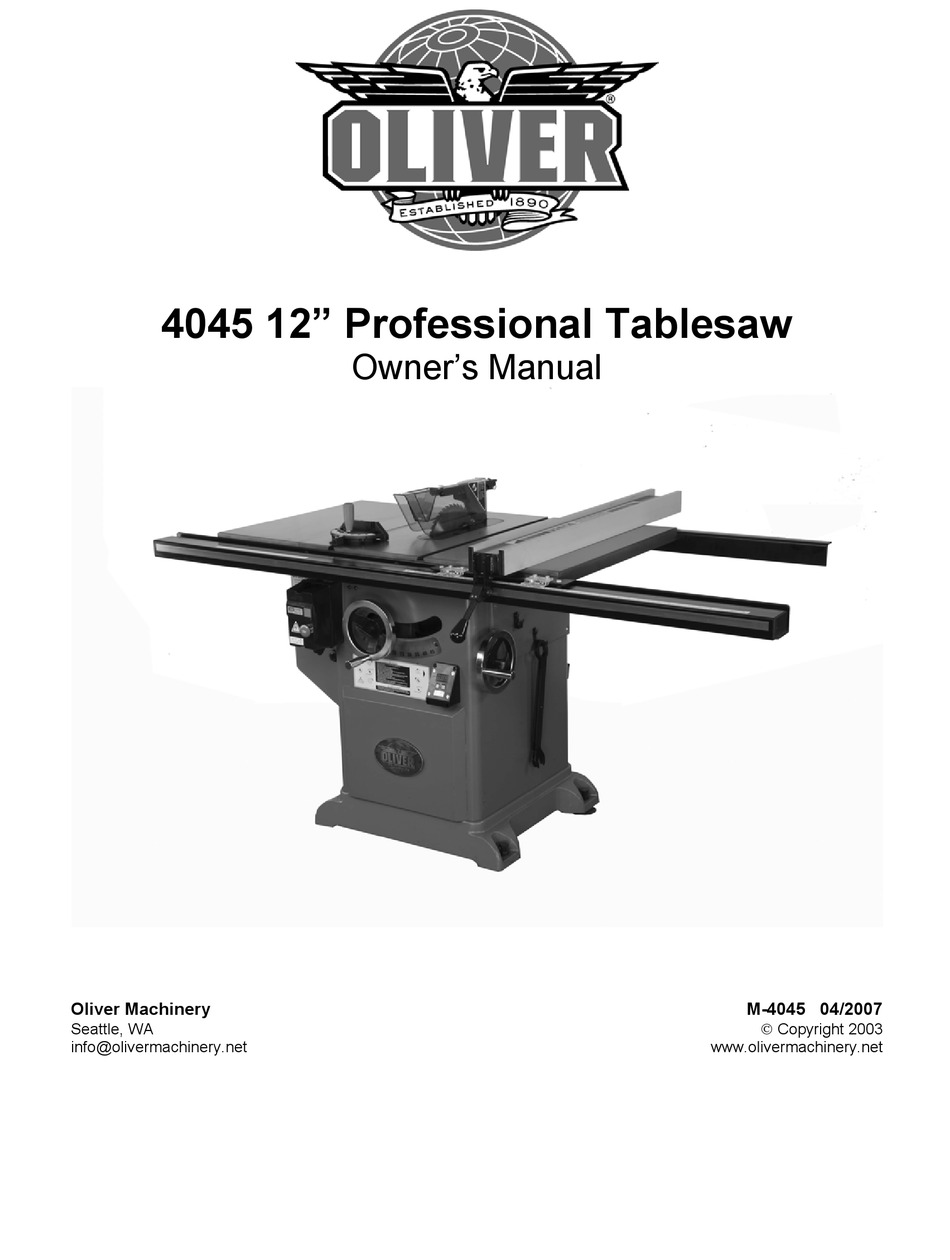

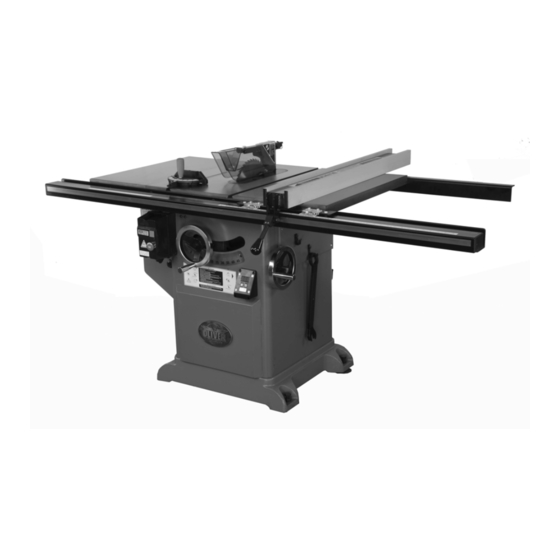

- Page 1 4045 12” Professional Tablesaw Owner’s Manual Oliver Machinery M-4045 04/2007 Copyright 2003 Seattle, WA info@olivermachinery.net www.olivermachinery.net...
-
Page 2: Warranty
Read this manual thoroughly before operating the machine. Oliver Machinery disclaims any liability for machines that have been altered or abused. Oliver Machinery reserves the right to effect at any time, without prior notice, those alterations to parts, fittings, and accessory equipment which they may deem necessary for any reason whatsoever. -
Page 3: Warnings
WARNING Read this manual completely and observe all warning labels on the machine. Oliver Machinery has made every attempt to provide a safe, reliable, easy-to-use piece of machinery. Safety, however, is ultimately the responsibility of the individual machine operator. As with any piece of machinery, the operator must exercise caution, patience, and common sense to safely run the machine. -
Page 4: Dust Port Diameter (In)
15. Misuse: Do not use this Oliver tablesaw for other than its intended use. If used for other purposes, Oliver disclaims any real or implied warranty and holds itself harmless for any injury or damage which may result from that use. -
Page 5: Table Of Contents
Replacing the Blade ............................ 13 Maintenance..............................14 Troubleshooting .............................15-16 Specifications Model Number............................4045 Blade Diameter (In) ............................. 12 Arbor Diameter (In) ........................5/8" OR 1” Maximum Depth of Cut at 90 Degrees (In) ....................4" Maximum Depth of Cut at 45 Degrees (In) ....................2-2/3"... -
Page 6: Contents Of The Shipping Containers
Oliver 4045, 12”Tablesaw Contents of the Shipping Containers Once the top is removed the saw will be as shown with the left extension wing already attached. Inspect for freight damage and call the freight carrier if any. Contents 1. Blade guard 3. -
Page 7: Machine Preparation And Setup
Machine Preparation and Setup WARNING! The equipment used to lift this machine must have a rated capacity at, or above the weight of the tablesaw. Failure to comply may cause serious injury! The tablesaw must be positioned on a smooth, level surface. -
Page 8: Rail Assembly
Rail Assembly 1. Rest the front guide support bracket on the switch box as shown in Figure 4 and secure into place using the chamfered bolts, nuts and washers provided in hardware packet 7. Note that the two outside holes require a nut and washer as well as a bolt while the four inside holes require the bolts only. -
Page 9: Fence Assembly And Adjustment
Fence Assembly and Adjustment 1. Place the fence on the guides as shown in Figure 7. Look for the rubber nib on the underside of the fence as shown and make sure it lines up with the back support rail. 2. -
Page 10: Calibrating The Digital Angle Readout
Calibrating the Digital Angle Readout 1. Place a square on the table as shown in Figure 11 then turn the saw tilt wheel until the blade comes to 90 degree. Push and hold the 0° set button as shown in Figure 14 until the display stops blinking. -
Page 11: Leveling Table Insert
Leveling Table Insert Adjust the table insert flush with the table by turning the four leveling screws (C, Figure 16). Place a straight edge across the table and insert. Raise the insert until it just touches the straight edge. Check both the front and rear section of the insert. -
Page 12: Miter Gauge
Miter Gauge 1. Slide the miter gauge bar into the miter gauge slot in table. Loosen the handle (A, Figure 23) and pull out indexing rod (B, Figure 23) to pivot the miter gauge body. 2. Push the indexing rod in to engage the preset stops (C, Figure 23). -
Page 13: Electrical Connections
220V. If you need to switch the tablesaw from 220V to 440V have a qualified electrician make the changes. Oliver Machinery recommends using a dedicated circuit. Make sure the voltage of your power supply matches the specifications on the motor plate of the machine. -
Page 14: Maintenance
Maintenance WARNING! Disconnect the machine from power source before proceeding with any maintenance, or troubleshooting! Failure to comply may cause serious injury! Periodically clean the inside of the machine for dust control. Use an air hose to blow out dust from motor fan and motor cover. -
Page 15: Troubleshooting
Troubleshooting Description of Symptoms Possible Cause Corrective Action 1. Fuse blown or circuit breaker 1. Replace fuse or reset circuit tripped breaker 2. Cord Damaged 2. Have cord replaced 3. Faulty switch 3. Replace switch 4. Not connected to power 4. - Page 16 1. Reposition on flat, level 1. Stand on uneven floor surface 2. Damaged saw blade 2. Replace saw blade 3. Bad V-belts 3. Replace V-belts Saw vibrates excessively 4. Bent pulley 4. Replace pulley 5. Improper motor mounting 5. Check and adjust motor 6.
