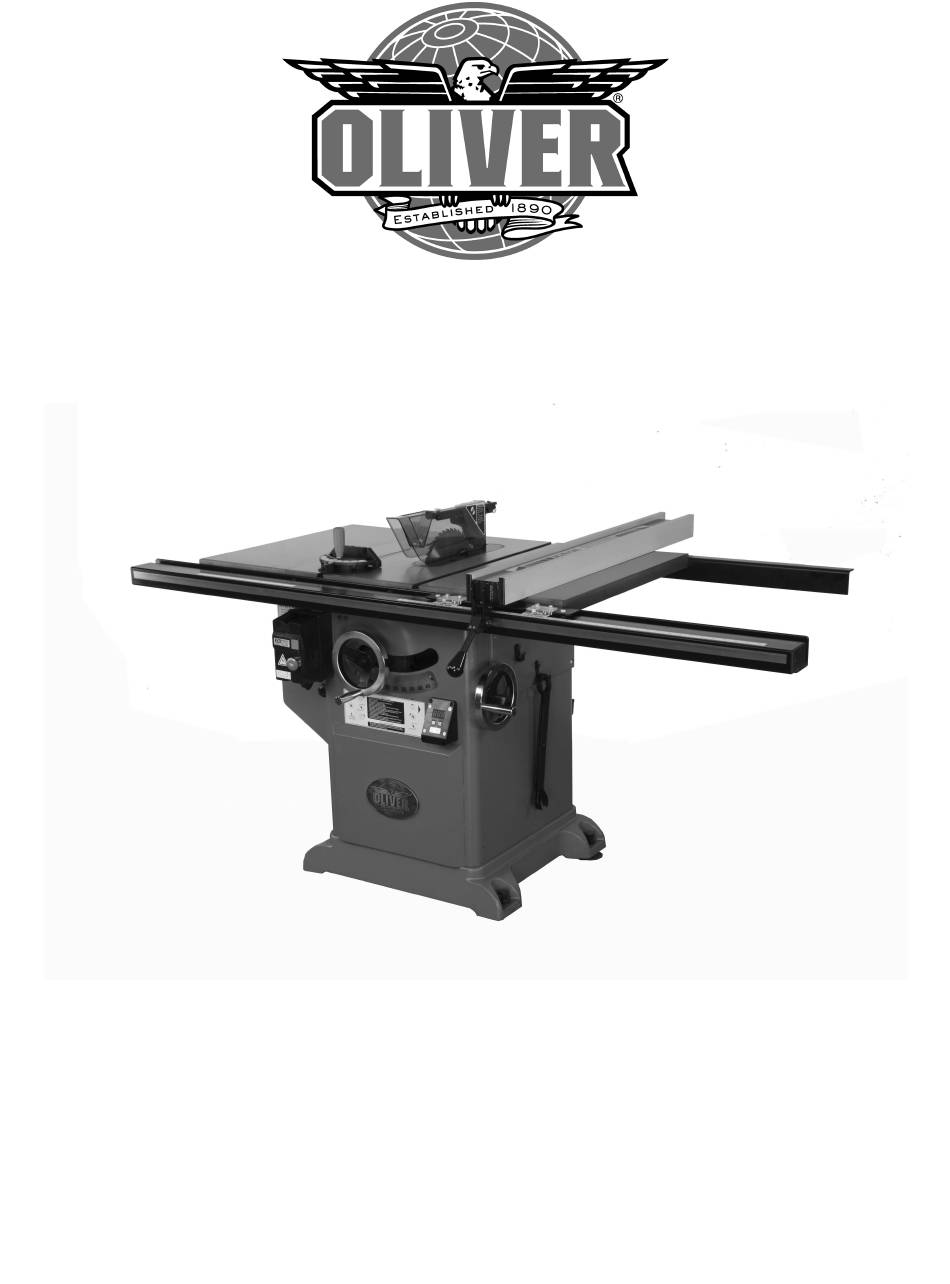

- Page 1 4016 10” Professional Tablesaw Owner’s Manual Oliver Machinery M-4016 04/2008 © Copyright 2003 Seattle, WA info@olivermachinery.net www.olivermachinery.net...
-
Page 2: Warranty
Oliver makes every effort possible to assure that its equipment meets the highest possible standards of quality and durability. All products sold by Oliver are warranted to the original customer to be free from defects for a period of 2 (two) years on all parts, excluding electronics and motors, which are warranted for 1 year. -
Page 3: Warnings
WARNING Read this manual completely and observe all warning labels on the machine. Oliver Machinery has made every attempt to provide a safe, reliable, easy-to-use piece of machinery. Safety, however, is ultimately the responsibility of the individual machine operator. As with any piece of machinery, the operator must exercise caution, patience, and common sense to safely run the machine. -
Page 4: Dust Port Diameter (In)
Misuse: Do not use this Oliver tablesaw for other than its intended use. If used for other purposes, Oliver disclaims any real or implied warranty and holds itself harmless for any injury or damage which may result from that use. -
Page 5: Table Of Contents
Dust Collection............................12 Electrical Connections..........................13 Replacing the Blade...........................13 Maintenance..............................14 Troubleshooting............................15-16 Specifications Model Number............................4016 Blade Diameter (In)............................10 Arbor Diameter (In)..........................5/8" Maximum Depth of Cut at 90 Degrees (In)....................3" Maximum Depth of Cut at 45 Degrees (In)...................2-1/4" Maximum Cut to the Right of Blade......................36”... -
Page 6: Contents Of The Shipping Containers
Oliver 4016, 10”Tablesaw Contents of the Shipping Containers Once the top is removed the saw will be as shown with the left extension wing already attached. Inspect for freight damage and call the freight carrier if any. Contents Blade guard 3. -
Page 7: Machine Preparation And Setup
Machine Preparation and Setup WARNING! The equipment used to lift this machine must have a rated capacity at, or above the weight of the tablesaw. Failure to comply may cause serious injury! The tablesaw must be positioned on a smooth, level surface. -
Page 8: Rail Assembly
Rail Assembly 1. Rest the front guide support bracket on the switch box as shown in Figure 4 and secure into place using the chamfered bolts, nuts and washers provided in hardware packet 7. Note that the two outside holes require a nut and washer as well as a bolt while the four inside holes require the bolts only. -
Page 9: Fence Assembly And Adjustment
Fence Assembly and Adjustment 1. Place the fence on the guides as shown in Figure 7. Look for the rubber nib on the underside of the fence as shown and make sure it lines up with the back support rail. 2. -
Page 10: Calibrating The Digital Angle Readout
Calibrating the Digital Angle Readout Place a square on the table as shown in Figure 11 then turn the saw tilt wheel until the blade comes to 90 degree. Push and hold the 0° set button as shown in Figure 14 until the display stops blinking. The 0° is now set. -
Page 11: Leveling Table Insert
Leveling Table Insert Adjust the table insert flush with the table by turning the four leveling screws (C, Figure 16). Place a straight edge across the table and insert. Raise the insert until it just touches the straight edge. Check both the front and rear section of the insert. -
Page 12: Miter Gauge
Miter Gauge 1. Slide the miter gauge bar into the miter gauge slot in table. Loosen the handle (A, Figure 23) and pull out indexing rod (B, Figure 23) to pivot the miter gauge body. 2. Push the indexing rod in to engage the preset stops (C, Figure 23). -
Page 13: Electrical Connections
220V. If you need to switch the tablesaw from 220V to 440V have a qualified electrician make the changes. Oliver Machinery recommends using a dedicated circuit. Make sure the voltage of your power supply matches the specifications on the motor plate of the machine. -
Page 14: Maintenance
Maintenance WARNING! Disconnect the machine from power source before proceeding with any maintenance, or troubleshooting! Failure to comply may cause serious injury! Periodically clean the inside of the machine for dust control. Use an air hose to blow out dust from motor fan and motor cover. -
Page 15: Troubleshooting
Troubleshooting Description of Symptoms Possible Cause Corrective Action 1. Fuse blown or circuit breaker 1. Replace fuse or reset circuit tripped breaker 2. Cord Damaged 2. Have cord replaced 3. Faulty switch 3. Replace switch 4. Not connected to power 4. - Page 16 1. Reposition on flat, level 1. Stand on uneven floor surface 2. Damaged saw blade 2. Replace saw blade 3. Bad V-belts 3. Replace V-belts Saw vibrates excessively 4. Bent pulley 4. Replace pulley 5. Improper motor mounting 5. Check and adjust motor 6.
- Page 17 4016 Part's List Index Part Number Descriptions Spec. Old P/N Bagged Hardware 850429-000 116 230114-906 Handle PJ010018 117 040203-000 Open Wrench 11*13 HQ020800 118 040205-000 Open Wrench 14*17 HQ021100 119 040207-000 Open Wrench 22*24 HQ021400 120 040004-000 Hex. Wrench HQ010500 121 040005-000 Hex.
- Page 18 .23 041303-019 Poly Bag 700*280*0.05t HR025600 .24 520001-554 Spreader Cardboard Box 480*60*216mm TH27-42 Fence Ass'y 921782-000 Miter Guage Ass'y RTJ0405 .1 003303-105 3/16"-24NC*3/8" HB040905 Round Head Screw .2 250193-620 Indicator TH010304 .3 130053-901 Packing TH010305 .4 360381-901 Fixing Shaft TH120606 .5 043311-000 O-Ring (P type) HM080300...
- Page 19 110066-000 Riving Knife Bracket TH250018 172330-000 Adjust Plate TH250069 000104-104 CAP Screw M8*1.25P*16 HA020508 380778-902 Lock Bolt 660145-000 Air Pressure Rod TH270026 160076-000 Bushing TH270020 012003-006 5*5*18 HH010410 Arbor TH270003 380858-901 390017-000 Blade 10''*40T 170518-901 Blade Washer TH010012 380052-901 Blade Nut (5/8") TJ010075 000105-103 CAP Screw...
- Page 20 CAP Screw M6*1.0P*25 HA020413 000103-108 006303-100 Spring Washer 6.1*12.3 HE020900 730063-004 Wire Protector ASW-16-B(16*20/300mm) *80 TH27-02 Switch Ass'y TJ0B 003303-101 Round Head Screw 3/16"-24NC*1/2" HB040906 000303-202 M5*0.8P*8 Round Head Screw Sensor Box 250547-615 000301-206 M3*0.5P*8 Round Head Screw 006002-139 Flat Washer 3*8*1.0t 950348-000 Sensor Ass'y...
- Page 21 *133 TH27-73 Fence Ass'y *134 TH27-10 Name Plate *135 TH27-14 Manual...
