DeVilbiss 525 Series Instruction Manual
  1. Manuals
  2. Brands
  3. DeVilbiss Manuals
  4. Oxygen Equipment
  5. 525 Series
  6. Instruction manual

DeVilbiss 525 Series Instruction Manual

5-liter oxygen concentrator
Hide thumbs Also See for 525 Series:
Table of Contents

Advertisement

Quick Links

Download this manual
525 Series
525 Serie
Serie de 525
Serie da 525
Série 525
525 Serie
en

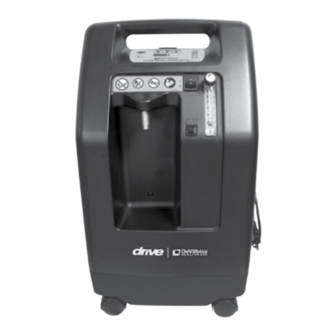

DeVilbiss® 5-Liter Oxygen Concentrator
Instruction Guide
WARNING–Read instruction guide before operating this equipment.
ASSEMBLED IN USA
NO SMOKING
es
Guía de instrucciones del concentrador de
oxígeno de 5-litros de DeVilbiss®
ADVERTENCIA–Lea la guía de instrucciones antes de poner a funcionar este equipo.
ENSAMBLADO EN EE. UU.
NO FUMAR
Guide d'instructions du concentrateur
fr
d'oxygène 5-litres DeVilbiss®
AVERTISSEMENT–Lire le mode d'emploi avant d'utiliser ce dispositif.
ASSEMBLÉ AUX ÉTATS UNIS
NE PAS FUMER
de
DeVilbiss® 5-Liter-Sauerstoffkonzentrator
Bedienungsanleitung
WARNUNG–Vor Inbetriebnahme des Gerätes Bedienungshinweise lesen.
HERGESTELLT IN DEN USA
RAUCHEN VERBOTEN
Concentratore di ossigeno da 5-litri
it
DeVilbiss® Istruzioni per l'uso
AVVERTENZA–Leggere il manuale di istruzioni prima di usare l'apparecchio
ASSEMBLATO NEGLI U.S.A.
NON FUMARE
Instructiehandleiding DeVilbiss® 5-liter
nl
zuurstofconcentrator
WAARSCHUWING–Lees dit instructiehandboekje zorgvuldig door voordat u het
apparaat gaat gebruiken.
GEMONTEERD IN DE VERENIGDE STATEN
VERBODEN TE ROKEN
525 Serisi
525 ‫طراز‬
Série 525
Seria 525
DeVilbiss® 5-Litre Oksijen Konsantratörü
tr
Kullanım Kılavuzu
UYARI–Cihazı kullanmaya başlamadan önce bu kılavuzu okuyunuz.
ABD'DE MONTE EDILMIŞTIR
SİGARA İÇİLMEZ
pt
Manual de instruções do Concentrador de
oxigênio DeVilbiss® de 5-litros
ADVERTÊNCIA– Leia o manual de instruções antes de operar este equipamento.
MONTADOS NOS EUA
PROIBIDO FUMAR
pl
Instrukcja obsługi 5-litrowego
koncentratora tlenu DeVilbiss®
OSTRZEŻENIE – Przeczytaj instrukcję obsługi przed rozpoczęciem korzystania z tego
urządzenia.
ZMONTOWANO W STANACH ZJEDNOCZONYCH
ZAKAZ PALENIA
‫دليل اإلرشادات الخاص بوحدة تركيز األكسجين من‬
‫ سعة 5 لتر‬DeVilbiss®
‫تنبيه - اقرأ دليل اإلرشادات قبل تشغيل الجهاز‬
‫تم تجميعه في الواليات المتحدة األمريكية‬
‫ممنوع التدخين‬
0044
ar

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 525 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for DeVilbiss 525 Series

Summary of Contents for DeVilbiss 525 Series

  • Page 1 NO SMOKING Guía de instrucciones del concentrador de Manual de instruções do Concentrador de oxígeno de 5-litros de DeVilbiss® oxigênio DeVilbiss® de 5-litros ADVERTENCIA–Lea la guía de instrucciones antes de poner a funcionar este equipo. ADVERTÊNCIA– Leia o manual de instruções antes de operar este equipamento.

  • Page 2: Table Of Contents

    Oxygen use per day Hours:_____________________________________ Minutes: ___________________________ Comments: ______________________________________________________________________ DeVilbiss 5-Liter Oxygen Concentrator w/OSD Serial Number:_____________________________ DeVilbiss Equipment Provider Information DeVilbiss 5-Liter Series Set-Up Person: ___________________________________________________________________ This instruction guide was reviewed with me, and I have been instructed on the safe use and care of...

  • Page 3: Symbol Definitions En

    IMPORTANT SAFEGUARDS Read this entire guide before using your DeVilbiss concentrator Important safeguards are indicated throughout this guide Pay special attention to all safety information Imminently and potentially hazardous information is highlighted by these terms:...
  • Page 4 To avoid electric shock, do not plug the concentrator into an AC outlet if the concentrator cabinet is broken Do not remove the concentrator cabinet The cabinet should only be removed by a qualified DeVilbiss technician. Do not apply liquid directly to the cabinet or utilize any petroleum-based solvents or cleaning agents.
  • Page 5 WARNING Risk of injury or damage • When the device is operated at the extremes of the environmental operating specifications (i.e., maximum temperatures and humidity), and in a single fault condition, which is a single component or performance malfunction, such as a blocked exhaust vent, blocked air intake, or an internal cooling fan failure, the temperature of the air coming out of the exhaust vents, located on the bottom left and bottom right sides of the unit can reach temperatures capable of causing a burn injury (see stated temperature and contact time values in the model specific tables below).

  • Page 6: Introduction En

    Service Life The expected service life of the 525 series oxygen concentrator, which includes the performance of any required service or maintenance, is 5 years The expected service life is based on the operation of the device in accordance with all manufacturer guidance for safe use, maintenance, servicing, storage, shipping, handling, and general operation...

  • Page 7: Important Parts Of Your Concentrator En

    IMPORTANT PARTS OF YOUR CONCENTRATOR Please take time to familiarize yourself with your DeVilbiss oxygen concentrator before operating Front View (Figure A) Back View (Figure B) Operating instructions (LED indicator panel) 11 Handgrip 12 Exhaust Vents Power Switch | = ON...
  • Page 8 AC wall outlet Failure to do so may cause an electrical safety hazard NOTE – (only 115 volt units) The plug on the DeVilbiss oxygen concentrator has one blade wider than the other. To reduce the risk of electric shock, this plug is intended to fit in a wall outlet only one way.

  • Page 9: Devilbiss Osd ® Operation En

    RESERVE OXYGEN SYSTEM As a precaution, your DeVilbiss provider may supply you with a reserve oxygen system If your unit loses electrical power or fails to operate correctly, the Patient Alert System will sound to signal you to switch to your reserve oxygen system (if provided) and contact your DeVilbiss provider. Please contact your oxygen provider if you have questions...
  • Page 10 The following troubleshooting chart will help you analyze and correct minor oxygen concentrator malfunctions If the suggested procedures do not help, switch to your reserve oxygen system and call your DeVilbiss homecare provider Do not attempt any other maintenance WARNING To avoid electric shock, do not plug the concentrator into an AC outlet if the concentrator cabinet is broken Do not remove the concentrator cabinet The cabinet should only be removed by a qualified DeVilbiss technician.

  • Page 11: Specifications En

    SPECIFICATIONS DEVILBISS 5-LITER SERIES Catalog Number 525DS, 525DS-Q 525KS, 525KS-LT 525PS Delivery Rate (Lower delivery rates available 0 5 to 5 LPM 0 5 to 5 LPM 0 5 to 5 LPM for low flow applications)*** Maximum Recommended Flow (@ nominal...

  • Page 12: Electromagnetic Compatibility Information En

    The original purchaser must submit any warranty claim to Drive DeVilbiss or to an Authorized Service Center. Upon verification of the warranty status, instructions will be issued. For all returns, the original purchaser must (1) properly package the unit in a DeVilbiss approved shipping container, (2) properly identify the claim with the Return Authorization Number, and (3) send the shipment freight prepaid.

  • Page 13: Ordering And Returning Parts En

    NOTE – Recommendations for preventative maintenance at 3-year intervals are outlined in the Service and Maintenance Guidance below. DeVilbiss Healthcare recommends that at least the following procedures be carried out by the manufacturer or a qualified third party between uses by different patients.

  • Page 14: Service And Maintenance Guidance En

    Green Normal Oxygen light will be illuminated If the Yellow Low Oxygen light is illuminated, refer to the Service Manual or contact DeVilbiss for assistance With unit still running, unplug to test the power fail alarm If the power fail alarm does not provide an audible alert, refer to the Service Manual or contact DeVilbiss for assistance Oxygen Provider Preventive Maintenance Guidance NOTE –...

Table of Contents
