Installation - Projecta INVCHRD-BT Quick Start Manual

DISPLAY INFORMATION IN VALUE INFORMATION AREA
V Battery Voltage
A Battery Current
I
Battery SOC
FEATURES
• Device allows users to remotely monitor and control Projecta Inverter Chargers
• Displays battery voltage*, current*, inverter load percentage, AC input/output voltage, frequency and power
• Battery status can be monitored via smart phone or tablet if connected.
• Inbuilt intelligent battery monitoring technology
* Will show battery information where a Projecta HD sereies battery is connected to the system.

INSTALLATION

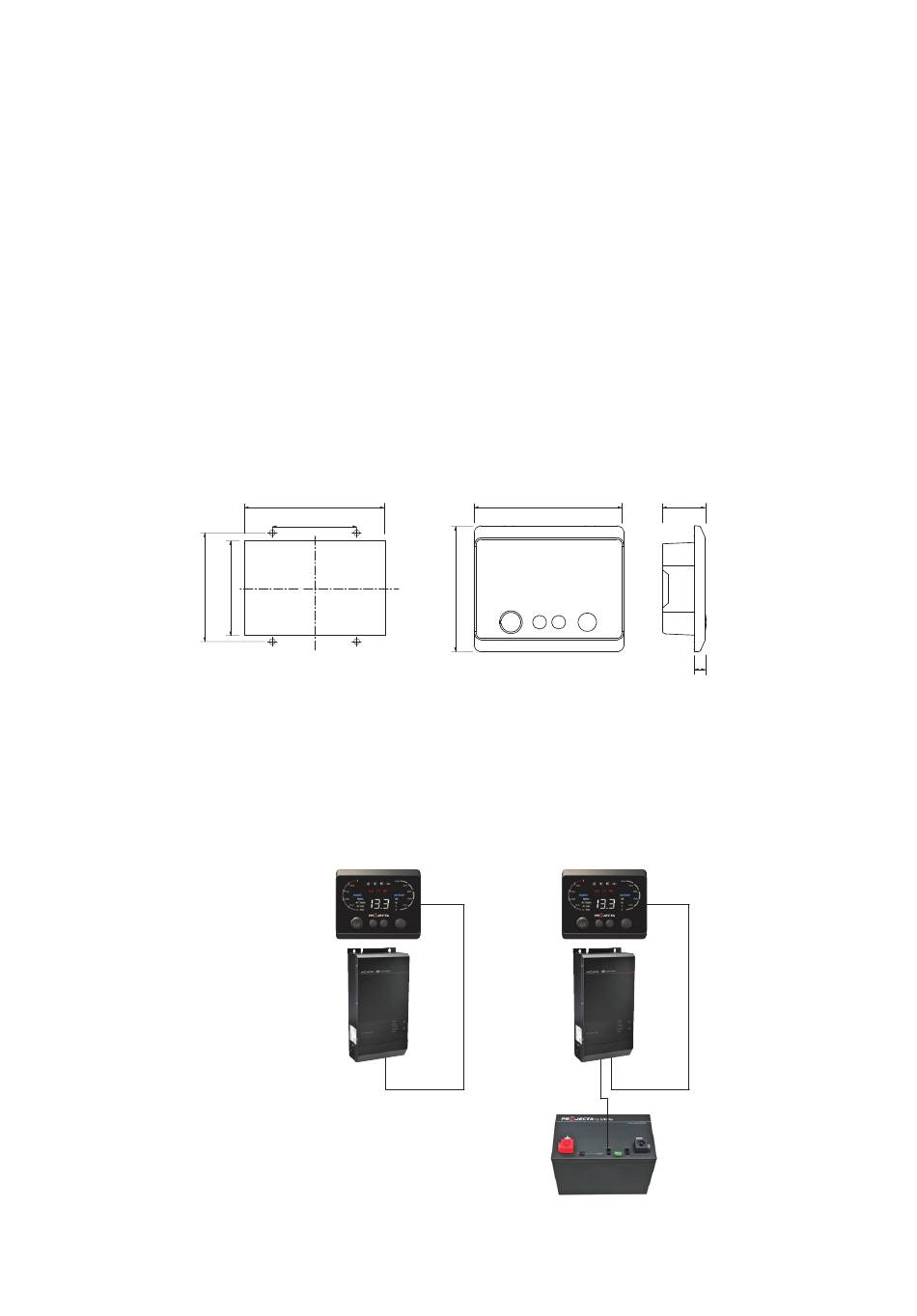

Step 1: Cut holes on mounting surface following the cut-out dimension of solid line area in the below diagram
Step 2: Place the INVCHRD-BT in position properly and fix the INVCHRD-BT by 4pcs M3*12 screws
83.5
CONNECTION
• Use the cable with RJ45 terminal to connect the INVCHRD-BT to the ComMON terminal of the inverter charger
in Fig.1.
• Use the cable with RJ45 terminal to connect the INVCHRD-BT to the ComMON terminal of the inverter charger
and connect the ComSync or ComSyncIn terminal of the inverter charger to the CAN/RS485 terminal of the HD
Series lithium battery in Fig.2.
APP
INVCHRD-BT Support APP can be downloaded on the Google Play Store for Android Devices and the AppStore
for Apple Devices.
103
60
70
Fig. 1
110
93
ComSync/
ComMON
ComSyncIn
31
8
Fig. 2
ComMON
CAN/RS485
3
