Product Overview - Projecta INVCHRD-BT Quick Start Manual

WARNINGS – IMPORTANT PLEASE READ
• Do not disassemble the monitor. Take to a qualified person if the unit requires repairing.

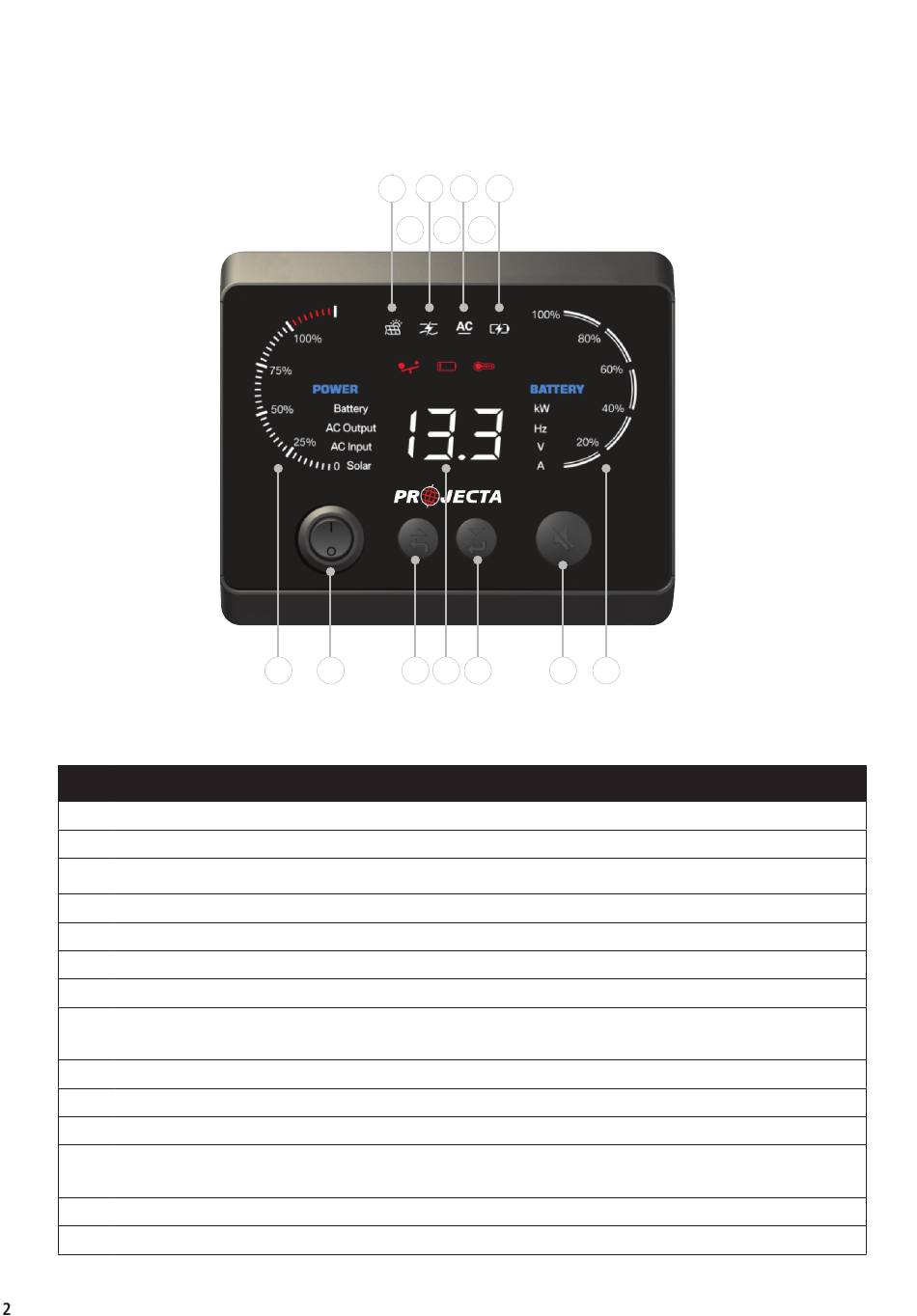

PRODUCT OVERVIEW

NO DEFINITION
1 Solar
2 Invert
3 Bypass
4 Charge
5 Overload alarm
6 Battery low voltage alarm
7 Over temperature alarm
8 Load percentage
9 Inverter ON/OFF switch
10 Scroll up / Back
11 LCD screen
12 Scroll down / confirm button
13 Mute button
14 Battery SOC
1 2
5 6
8 9 10 11 12
DESCRIPTION
To indicate solar charger is charging
To indicate inverters is working
To indicate Grid or generator is presenting
To indicate battery is charging
To indicate when inverter is overloaded
To indicate when inverter reach under-voltage
To indicate when inverter is over-temperature
To indicate the percentage of actual load power against
rated power of inverter installed
To turn Inverter ON or OFF
LCD displaying value
To scroll down to next item. Or as function of confirmation of
your selection and configuration. With long press for 3 secs.
To mute or unmute the alarm
To indicate battery state of charge
3 4
7
13 14
