Connections; Es892.X Front Side - ETAS ES800 User Manual

69 | ES892.x ECU and Bus Interface Module
- Electrical isolation of the channels from each other, from device ground and
from the supply voltage
Complete technical data for the ES892.x module can be found in the chapter
"Technical Data" on page 140.
10.3

Connections

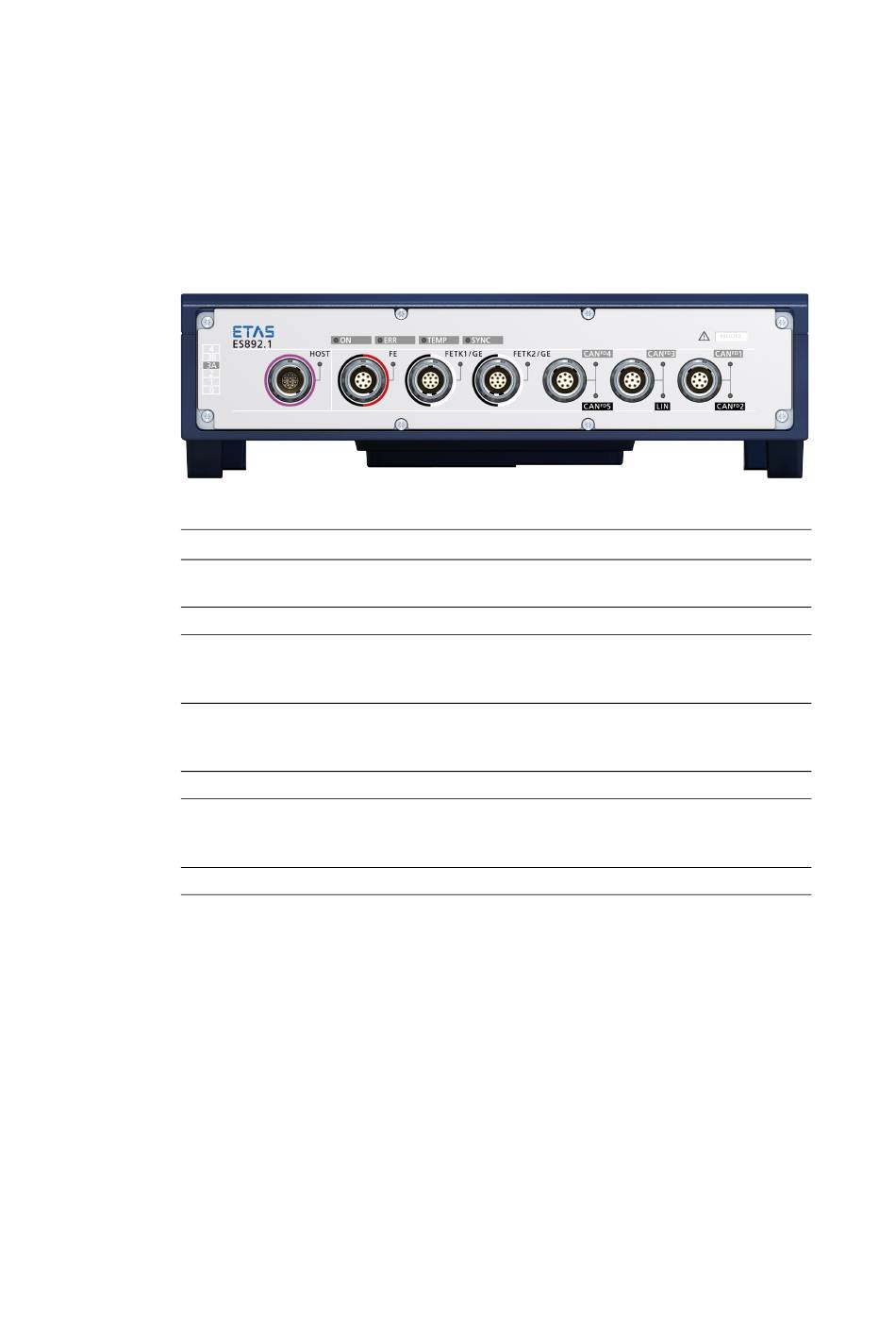

The front side of the ES892.x module features the following connections:
Fig. 10-2
Name
HOST
FE
FETK1 / GE
FETK2 / GE
CAN4/CAN5
CAN3 / LIN
CAN1 / CAN2
Information on combining modules of the ES800 system with ETAS modules from
other series can be found in chapter 3.7 on page 27.
ETAS ES800 System | User Guide

ES892.x Front Side

Interface
1 x Gigabit Ethernet
(HOST)
1 x Fast Ethernet
1 x FETK
or
1 x Gigabit Ethernet
1 x FETK
or
1 x Gigabit Ethernet
2 x CAN FD
1 x CAN FD and 1 x LIN
2 x CAN FD
For description see
Chapter 12.1 on page 89
Chapter 12.2 on page 90
Chapter 12.4 on page 92
Chapter 12.4 on page 92
Chapter 12.7 on page 102
Chapter 12.7 on page 102
and
chapter 12.8 on page 105
Chapter 12.7 on page 102
