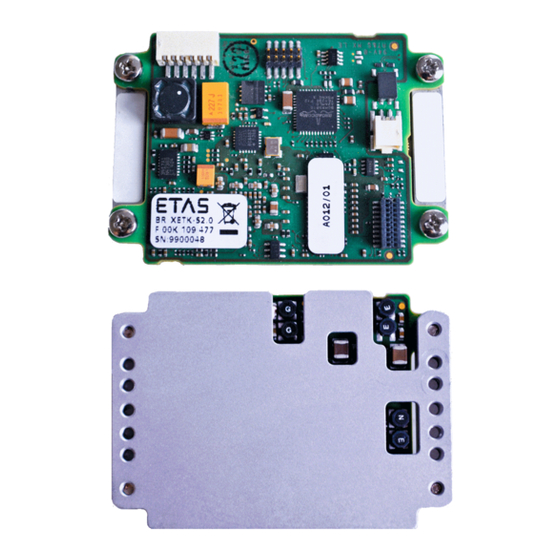

- Page 1 BR_XETK-S1.0 Emulator Probe for Infineon AURIX MCU Family User’s Guide www.etas.com...
- Page 2 The data in this document may not be altered or amended without special noti- fication from ETAS GmbH. ETAS GmbH undertakes no further obligation in relation to this document. The software described in it can only be used if the customer is in possession of a general license agreement or single license.
-
Page 3: Table Of Contents
ETAS Contents Contents Contents About this Document ........... 7 Classification of Safety Messages . - Page 4 ETAS Contents Wiring ..............28 5.2.1...
- Page 5 ETAS Contents 8.4.4 Temperature Range..........50 8.4.5...
- Page 6 ETAS Contact Addresses ........
-
Page 7: About This Document
ETAS About this Document About this Document Classification of Safety Messages The safety messages used here warn of dangers that can lead to personal injury or damage to property: DANGER indicates a hazardous situation with a high risk of death or serious injury if... -
Page 8: Typographical Conventions
ETAS About this Document Typographical Conventions Software OCI_CANTxMessage msg0 = Code snippets are presented on a gray back- ground and in the Courier font. Meaning and usage of each command are ex-plained by means of comments. The comments are enclosed by the usual syntax for comments. -
Page 9: Basic Safety Notices
• “Use of Open Source Software” on page 14 General Safety Information Please observe the Product Safety Notices ("ETAS Safety Notice") and the fol- lowing safety notices to avoid health issues or damage to the device. NOTE Carefully read the documentation (Product Safety Advice and this User's Guide) that belongs to the product prior to the startup. - Page 10 Application Area of the Product This product was developed and approved for automotive applications. For use in other application areas, please contact your ETAS contact partner. Requirements for Operation The following requirements are necessary for safe operation of the product: •...
- Page 11 ETAS Basic Safety Notices Potential Equalization CAUTION Danger from inadvertent current flow! Depending on the design, the shield of the Ethernet cables can be connected with the housing of the module. Install the products only on components with the same electrical potential or isolate the products from the components.
-
Page 12: Identifications On The Product
Cabling Use exclusively ETAS cables at the connections of the product! Adhere to the maximum permissible cable lengths! Observe the assignment of the cables to the connectors! Detailed information about cabling is located in the ETK User's Guides. -
Page 13: Taking The Product Back And Recycling
CE marking With the CE mark attached to the product or its packaging, ETAS confirms that the product corresponds to the applicable product-specific European Direc- tives. The CE Declaration of Conformity for the product is available upon request. -
Page 14: Rohs Conformity
For individual electronic components used in our products, there are currently no equivalent alternative substances, which is why we make use of the exception 7C-I in Annex III of this Directive. ETAS confirms that the product corresponds to this directive which is applica- ble in the European Union. 2.7.2... -
Page 15: Introduction
BR_XETK-S1.0 An Automotive Ethernet media converter is required for the access to the BR_X- ETK-S1.0 by the standard full duplex 100Base-T Ethernet of the PC. ETAS offers the Automotive Ethernet media converters CBEB100.1 and CBEB105.1. The BR_XETK-S1.0 can be used for rapid prototyping applications (bypass) as well as for measurement and calibration applications. -
Page 16: Features
Media Converter – Open XCP on Ethernet Protocol – Supports a variety of standard applications • “ETK Drivers and Tools” update to support ETAS software tools (INCA, XCT) • Firmware update (programming of the logic device) through HSP soft- ware service packs; removal of XETK or ECU is not necessary •... -
Page 17: Hardware Description
This process is Triggered Direct Measurement (TDM) with DISTAB13 or DISTAB17. The 100 Mbit/s XETK Ethernet interface provides communication with the PC. ETK Connector Description CON1 XETK Ethernet interface (ETAS module or PC) CON2 ECU Interface CON3 ECU EDRAM Sense port... -
Page 18: Ecu Interface
ETAS Hardware Description ECU Interface The BR_XETK-S1.0 is connected via connectors CON2 and CON4 to the ECU with two adapter cables (refer to Fig. 4-2 on page 18). The pin definition depends on the application and the microcontroller type. In general the ECU interface consists of •... -
Page 19: Automotive Ethernet Interface
CON1 (refer to Fig. 4-4). The combination of the BR_XETK-S1.0 and the Automotive Ethernet media converter is integrated in the ETAS IP world with automatic IP management and supports the open automotive "Universal Measurement and Calibration" standard "XCP on Ethernet" (TCP/IP, UDP/IP). -
Page 20: Power Supply
ETAS Hardware Description Power Supply The BR_XETK-S1.0 requires a permanent power supply. It is typically powered directly from the car battery. The input voltage may vary between 4.3 V and 36 V. In case of higher input voltages to the XETK, additional voltage protection is required. -
Page 21: Ecu Voltage Supervisor
ETAS Hardware Description ECU Voltage Supervisor The ECU voltage (VDDP) is monitored by the XETK to recognize whether the ECU is switched on or off. Additionally the ECU RAM standby voltage (VDDS- BRAM) is monitored to determine if the standby RAM content is still valid. -
Page 22: Data Emulation And Data Measurement
XETK until the microcontroller is powered up and the startup handshake is performed. Serial XETKs use the ETAS two page concept, consisting of both a Reference and a Working page. The Reference Page is located in the ECU flash and can not be modified by a simple write access. -
Page 23: Dap Interface
ETAS Hardware Description DAP Interface Ubatt BR_XETK permanent power supply ETAM2 CAL WAKEUP (12V) 2. ECU: supply 1. XETK: supply and monitor VDDPSTBY the voltage of the ED RAM the voltage of the ED RAM (1,25V) (I/O) 2.XETK: monitor VDDPSTBY the voltage of the ED RAM sense (I) Power supply of the ED RAM: Option 1: provided by XETK Option 2: provided by ECU /TRST /TRST ETAM3 TDI Aurix VDDP /WGDIS (Sense) /PORST /RSTOUT /PORST ESR0 /WGDIS circuit Fig. 4-6 Equivalent Circuitry of the ECU DAP Interface (ECU) The BR_XETK-S1.0 operates the Device Access Port (DAP) interface in the 2-pin... -
Page 24: Pinless Triggering
ETAS Hardware Description Pinless Triggering 4.9.1 Startup Handshake The COMDATA trigger register is used to generate an ETK startup handshake. The ECU must ensure that all memory ECC initializations have been completed prior to the start-up handshake. 4.9.2 XETK Trigger Generation 4.9.2.1... -
Page 25: Reset
ETAS Hardware Description 4.11 Reset The requirement for the BR_XETK-S1.0 reset mechanism is to ensure that power-up and power-down behavior of ECU is clean and smooth. The BR_X- ETK-S1.0 normally drives /PORST low during XETK power up or upon INCA request. -
Page 26: Installation
ETAS Installation Installation In this chapter, the hardware installation of the BR_XETK-S1.0 is described. CAUTION Some components of the interface board may be damaged or destroyed by electrostatic discharges. Please keep the board in its storage package until it is installed. -
Page 27: Fig. 5-2 Br_Xetk-S1.0 Connection To The Ecu
ETAS Installation Fig. 5-2 BR_XETK-S1.0 Connection to the ECU BR_XETK-S1.0 - User’s Guide... -
Page 28: Wiring
NOTE The BR_XETK-S1.0 Automotive Ethernet interface is not compatible with the standard Ethernet interfaces of ETAS modules. An CBEB10x Media Converter or an ES88x ECU and Bus Interface Module is required to connect the BR_X- ETK-S1.0 to the PC (refer to chapter 4.3 on page 19). -
Page 29: Cbeb100.1 Automotive Ethernet Media Converter
ETAS Installation 5.2.3 CBEB100.1 Automotive Ethernet Media Converter Fig. 5-3 BR_XETK-S1.0 connected to CBEB100.1 with ETAS cables Fig. 5-4 BR_XETK-S1.0 connected to CBEB100.1 with customer specific cable 5.2.4 CBEB105.1 Automotive Ethernet Media Converter Fig. 5-5 BR_XETK-S1.0 connected to CBEB105.1 with ETAS cables... -
Page 30: Es88X Ecu And Bus Interface Module
ETAS Installation Fig. 5-6 BR_XETK-S1.0 connected to CBEB105.1 with customer specific cable 5.2.5 ES88x ECU and Bus Interface Module Fig. 5-7 BR_XETK-S1.0 connected to ES88x ECU and Bus Interface Module with ETAS cables BR_XETK-S1.0 - User’s Guide... -
Page 31: Power Supply
ETAS Installation 5.2.6 Power Supply The BR_XETK-S1.0 needs a permanent power supply (refer chapter “Power Supply” on page 20). Refer to figures Fig. 5-8, Fig. 5-9, or Fig. 5-10 for recom- mendations on permanent power supply connection. 5.2.6.1 Permanent Power Supply inside ECU available... -
Page 32: Fig. 5-10 Isolated Power Supply Inside Ecu
ETAS Installation 5.2.6.3 Isolated Power Supply inside ECU The BR_XETK-S1.0 does not require a galvanically isolated power supply. For special applications ETAS offers the isolated power supply ETP2. Power Supply Connector Permanent Supply Isolated Power Supply Input Cable ETAM2 Cable ETAM2 4,8V…... -
Page 33: Xetk Configuration
ETAS XETK Configuration XETK Configuration The "XETK Configuration" chapter describes the BR_XETK-S1.0 hardware con- figuration. Overview As already mentioned in previous chapters, some project-specific adjustments are necessary. Configuration data is stored permanently in a serial Flash. Generating a valid configuration data set is supported by the "(X)ETK Configu- ration Tool"... -
Page 34: Configuration Parameter
ETAS XETK Configuration Configuration Parameter The XCT Tool provides support concerning hardware configuration parameters and their possible values. They are described for the different (X)ETK types in the help document of the "(X)ETK Configuration Tool". Starting the "XCT Tool" help 1. -
Page 35: Technical Data
ETAS Technical Data Technical Data This chapter contains information about following topics: • “System Requirements” on page 35 • “Data Emulation and Measurement Memory” on page 38 • “Configuration” on page 38 • “Automotive Ethernet Interface” on page 39 •... -
Page 36: Software Requirements
ETAS Technical Data To deactivate the power saving mode Choose in Windows System Control Center / Device Manager / Network Adapter the used network adapter by double-click. Deactivate the "Allow the computer to turn off this device to save power" option in the "Power Manage- ment"... - Page 37 ETAS Technical Data 7.1.3.2 Use Case: Rapid Prototyping Microcontroller INTECRIO ASCET Method TC23x-PD V11.10.0 V4.6.2 V6.4.3 SBB V2.1 TC26x-ED V11.2 V4.6 V6.4 SBB V2.1 V11.2 V4.6 V6.4 (DISTAB13) TC26x-PD V11.2 V4.6 V6.4 SBB V2.1 V11.2 V4.6 V6.4 (DISTAB13) TC27x-ED V10.11 V4.6...
-
Page 38: Data Emulation And Measurement Memory
ETAS Technical Data Data Emulation and Measurement Memory 7.2.1 Data Emulation Memory and Microcontroller Support The BR_XETK-S1.0 uses a portion of or up to the entire size of the ED RAM, to emulate data in internal flash. The following table lists the supported microcon- trollers, the size of the ED RAM, and states if the ED RAM is capable of being powered using a standby supply. -
Page 39: Automotive Ethernet Interface
DC decoupling NOTE The Automotive Ethernet interface is not compatible with the standard Ether- net interfaces of ETAS modules. A CBEB10x.1 Media Converter or an ES88x ECU Interface Module is needed to connect the BR_XETK-S1.0 to the PC. NOTE To ensure successful initialization of the network card of your PC, refer to chapter 7.1.2 on page 35... -
Page 40: Power Supply
ETAS Technical Data Power Supply Parameter Symbol Condition Max Unit Permanent power Vehicle usage Batt supply [all values ±0%] (car battery) Cranking voltage < 3 seconds Batt Standby current = 12 V; STBY Batt ECU off; no load from ECU;... -
Page 41: Microcontroller Interface
ETAS Technical Data Microcontroller Interface Symbol Condition Max Unit ECU Standby VDDSTBY max 500 mA load 1.23 1.34 V RAM Output Volt- VDDPSTBY VDDP- max 80 mA load 3.14 3.46 V Output Voltage STBY Cal_Wakeup CAL_WAK = 6.0 - 36 V;... -
Page 42: Dap Timing Characteristics
ETAS Technical Data DAP Timing Characteristics The following diagrams show the timings the BR_XETK-S1.0 can process. NOTE DAP timing parameters in this chapter refer to the DAP interface (CON2) of the BR_XETK-S1.0. The DAP wiring to the ECU (ETAM2) must be taken account additionally. -
Page 43: Electrical Characteristics
7.10 Electrical Characteristics 7.10.1 ECU Interface Connector Signal Pin Type Leakage current Additional load by ETK (min) (min) (max) (max) (min) (max) (max) / (min) (typ) [A] [pF] DAP0 +3340 / +2360 DAP1 +3340 / +2360 DAP2 +40 / -40 Reserved +20 / -20 /TRST... -
Page 44: Pin Assignment
ETAS Technical Data 7.11 Pin Assignment CON3 CON2 CON1 CON4 Fig. 7-2 Location of the ETK Interfaces 7.11.1 ECU Interface Connector CON1 Cable Color Signal Comment White Automotive Ethernet Signal AE- Violet Automotive Ethernet Signal AE+ 7.11.2 ECU Interface Connector CON2... -
Page 45: Power Supply Connector Con4
ETAS Technical Data 7.11.4 Power Supply Connector CON4 Signal Direction Comment VDDPSTBY Output Permanent power supply of ECU DAP (3.3 V supply) Interface, 3.3 V VDDSTBY Output Permanent power supply of ECU (1.30 V supply) EDRAM, 1.30 V Input Power GND... -
Page 46: Mechanical Dimensions
ETAS Technical Data 7.12 Mechanical Dimensions The reference measure for all drawings is millimeters. Top View Fig. 7-3 BR_XETK-S1.0 Dimensions - Top View (1) Item Dimension Tolerance Dimension Tolerance [Millimeters] [Millimeters] [Inches] [Inches] 45.00 +/- 0.20 1.772 +/- 0.008 36.90 +/- 0.20... -
Page 47: Fig. 7-4 Br_Xetk-S1.0 Dimensions - Top View (2)
ETAS Technical Data Fig. 7-4 BR_XETK-S1.0 Dimensions - Top View (2) Item Dimension Tolerance Dimension Tolerance [Millimeters] [Millimeters] [Inches] [Inches] 48.25 +/- 0.20 1.900 +/- 0.008 51.00 +/- 0.20 2.008 +/- 0.008 3.25 +/- 0.10 0.128 +/- 0.004 6.00 +/- 0.20 0.236... -
Page 48: Cables And Accessories
See chapter 5.2 on page 28 for details on wiring the ECU interface adapters. Requirements for failsafe Operation NOTE We recommend to use ETAS cables or any other cables certified by the stan- dards for the application. Adhere to the maximum permissible cable lengths! NOTE Application-specific cables are available from ETAS. -
Page 49: Etabr1 Cable
ETAS Cables and Accessories ETABR1 Cable Fig. 8-1 ETABR1 Cable 8.3.1 Usage The ETABR1 cable is a 100 Mbit/s Automotive Ethernet adapter cable with an 2-pin MOLEX connector (BR_XETK side) and open wires (ECU side). CAUTION For failsafe operation of the Automotive Ethernet interface twist the ETABR1 cable 5 to 10 times at each 10 cm. -
Page 50: Etabr2 Cable
ETAS Cables and Accessories ETABR2 Cable Fig. 8-3 ETABR2 Cable 8.4.1 Usage The ETABR2 cable is a 100 Mbit/s Automotive Ethernet adapter cable with an 2 pin MOLEX connector (BR_XETK side) and an 2 pin MOLEX connector (ECU side). The ETABR2 cable requires on the ECU side an 2 pin MOLEX vertical connector (87437-0243) or an 2 pin MOLEX right angle connector (87438-0243). -
Page 51: Etabr3 Cable
ETAS Cables and Accessories ETABR3 Cable Fig. 8-6 ETABR3 Cable 8.5.1 Usage The ETABR3 cable is a 100 Mbit/s Automotive Ethernet adapter cable with an 2 pin MOLEX connector (BR_XETK side) and open wires (ECU side). 8.5.2 Mechanical Dimensions Fig. 8-7 ETABR3 Dimensions 8.5.3... -
Page 52: Cbam290 Cable
ETAS Cables and Accessories CBAM290 Cable Fig. 8-9 CBAM290.1 Cable 8.6.1 Usage The CBAM290.1 cable is a 100 Mbit/s Automotive Ethernet cable adapter for BR_XETKs. The cable is passed through a M10 screw connection, the shield is connected to the screw. -
Page 53: Temperature Range
ETAS Cables and Accessories 8.6.6 Temperature Range Condition Temperature Range Operating temperature -40 °C to +105 °C 8.6.7 Order Information Product Length Order Number CBAM290.1 Automotive Ethernet ECU Adapter 0.60 m F 00K-111-117 Cable, Lemo 1B PHA - MOLEX (2fc-2fc), 0m60... -
Page 54: Cbam295 Cable
ETAS Cables and Accessories CBAM295 Cable Fig. 8-12 CBAM295 Cable 8.7.1 Usage BR_XETK ECU adapter and power supply cable for 100 Mbit/s Automotive Ethernet and BR_XETKs with external power supply. Usable for ECUs without permanent power supply inside. 8.7.2 Mechanical Dimension Fig. -
Page 55: Pin Assignment
ETAS Cables and Accessories 8.7.5 Pin Assignment Fig. 8-14 CBAM295 Connectors Connector in Fig. 8-14 Target Color CON1 Black Cable to Media Converter, e.g. CBEB120.1 CON2 White BR_XETK interface connector CON3 ECU housing shield CON4 Black Cable to connect permanent power supply, e.g. -
Page 56: Cbeb120 Cable
ETAS Cables and Accessories CBEB120 Cable Fig. 8-15 Automotive Ethernet Cable CBEB120.1 8.8.1 Usage The CBEB120.1 cable is a 100 Mbit/s Automotive Ethernet cable to connect a CBEB105.1 Media Converter with a BR_XETK cable adapter (e.g. CBAM290.1). 8.8.2 Order Information... -
Page 57: Cbeb121 Cable
ETAS Cables and Accessories CBEB121 Cable Fig. 8-16 Automotive Ethernet Cable CBEB121.1 8.9.1 Usage The CBEB121.1 cable is a 100 Mbit/s Automotive Ethernet cable to connect a CBEB100.1 Media Converter with a BR_XETK cable adapter (e.g. CBAM290.1). 8.9.2 Pin Assignment... -
Page 58: Cbeb125 Cable
ETAS Cables and Accessories 8.10 CBEB125 Cable Fig. 8-17 Automotive Ethernet Cable CBEB125.1 8.10.1 Usage The CBEB125.1 cable is a 100 Mbit/s Automotive Ethernet cable (1:1) for con- necting an BR_XETK to the ES88x module. 8.10.2 Order Information Product Length Order Number CBEB125.1 100 Mbit/s Automotive Ethernet... -
Page 59: Cbeb240 Cable
ETAS Cables and Accessories 8.11 CBEB240 Cable Fig. 8-18 CBEB240.1 Cable 8.11.1 Usage Cable for connecting the Automotive Ethernet interface (AE) of an ES800 mod- ule to BR_XETKs, ECUs with Automotive Ethernet interfaces or Ethernet-based vehicle buses. 8.11.2 Assignment of the Automotive Ethernet Channels to the Cable Sections The CBEB240.1 cable consists of four identical cable sections [n], each... -
Page 60: Assignment Of The Automotive Ethernet Signal To The Lemo Connectors
ETAS Cables and Accessories 8.11.4 Assignment of the Automotive Ethernet Signal to the LEMO Connectors Fig. 8-19 "AE" connection (one cable section) The assignment of the connections of the LEMO connector of a cable section to the signals of an Automotive Ethernet channel [N] is represented in the table. -
Page 61: Cbeb242 Cable
BR_XETKs. NOTE The CBEB242.1 cable is designed for directly connecting BR_XETKs. For other areas of application, ETAS recommends the CBEB240.1 Automotive Ethernet cable (see chapter 8.11 on page 59). 8.12.2 Assignment of the Automotive Ethernet Channels to the Cable Sections The CBEB242.1 cable consists of four identical cable sections [n], each... -
Page 62: Assignment Of The Automotive Ethernet Signal To The Dsub9 Connectors
ETAS Cables and Accessories 8.12.4 Assignment of the Automotive Ethernet Signal to the DSUB9 Connectors Fig. 8-21 "AE" connection (one cable section) The assignment of the connections of the DSUB9 connector of a cable section to the signals of an Automotive Ethernet channel [N] is represented in the table. -
Page 63: Etam2 Ecu Adapter
ETAS Cables and Accessories 8.13 ETAM2 ECU Adapter Fig. 8-22 FETK/ XETK - ECU Adapter ETAM2 8.13.1 Pin Assignment Fig. 8-23 ETAM2 Connector 8.13.2 ECU Signals Color Signal Description Blue VDDPSTBY Permanent power to supply ECU interface (Supply) (optional) Yellow... -
Page 64: Etam3 Ecu Adapter
ETAS Cables and Accessories 8.14 ETAM3 ECU Adapter Fig. 8-24 ETAM3 ECU Adapter 8.14.1 Usage The ETAM3 adapts a ECU with an 10 pin SAMTEC TFM-105 connector to an ETK. The ETABR3 cable requires on the ECU side an 10 pin SAMTEC connector (e.g. -
Page 65: Ecu Signals
ETAS Cables and Accessories 8.14.4 ECU Signals 8.14.4.1 JTAG and DAP Mode NOTE LFAST mode is not possible with the ETAM3 adapter. JTAG Mode DAP Mode DAP0 /TRST /TRST DAP2 DAP1 WDGDIS WDGDIS VDD (Sense) VDD (Sense) /RESETOUT /RESETOUT /PORESET /PORESET 8.14.4.2... -
Page 66: Etam5 Ecu Adapter
ETAS Cables and Accessories 8.15 ETAM5 ECU Adapter Fig. 8-28 FETK/ XETK - ECU Adapter ETAM5 8.15.1 Order Information Product Length Order Number ETAM5 FETK ECU Adapter, MOLEX - MOLEX 0.136 m F 00K-110-101 (6fc - 5fc+1c), 0m136 BR_XETK-S1.0 - User’s Guide... -
Page 67: Etam9 Ecu Adapter
ETAS Cables and Accessories 8.16 ETAM9 ECU Adapter Fig. 8-29 FETK/ XETK - ECU Adapter ETAM9 8.16.1 Usage The ETAM9 adapts the FETK/ XETK power signals (Molex 6 pin connector) to the ECU with an 5 pin Molex PicoSpox connector. -
Page 68: Etam10 Ecu Adapter
ETAS Cables and Accessories 8.17 ETAM10 ECU Adapter Fig. 8-30 FETK/ XETK - ECU Adapter ETAM10 MOLEX - MOLEX (6fc - 6fc) adapter cable for connecting an F/XETK to the ECU. 8.17.1 Usage ETAM10 adapts the ETK power signals (Molex 6 pin connector) to an ECU with a 6 pin Molex PicoSpox connector. -
Page 69: Temperature Range
ETAS Cables and Accessories 8.17.4 Temperature Range Condition Temperature Range Operating temperature -40 °C to +110 °C 8.17.5 Order Information Product Length Order Number ETAM10 F/XETK-S ECU Adapter, MOLEX - 0.07 m F 00K-111-814 MOLEX (6fc - 6fc), 0m07 BR_XETK-S1.0 - User’s Guide... -
Page 70: Ordering Information
Cable and Adapter NOTE We recommend to use ETAS cables or any other cables certified by the stan- dards for the application. Adhere to the maximum permissible cable lengths! NOTE Application-specific cables are available from ETAS. Please contact your ETAS contact partner or e-mail sales.de@etas.com. -
Page 71: Automotive Ethernet Cable
ETAS Ordering Information 9.2.2 Automotive Ethernet Cable Order Name Short Name Order Number Automotive Ethernet Interface Cable, ETABR1 F 00K 109 771 MOLEX – open wire (2fc-2c), 0m3 Automotive Ethernet Interface Cable, ETABR2 F 00K 111 118 MOLEX – MOLEX (2fc-2fc), 0m2... -
Page 72: Media Converter
ETAS Ordering Information 9.2.3 Media Converter Order Name Short Name Order Number Media Converter Cable, DSUB - RJ45 CBEB100.1-1m0 F 00K 110 094 (9mc-8mc), 1m Media Converter Cable, DSUB - Lemo CBEB105.1-1m0 F 00K 110 321 (9mc-8mc), 1m 9.2.4 Power Supply... -
Page 73: Etas Contact Addresses
Germany Internet: www.etas.com ETAS Subsidiaries and Technical Support For details of your local sales office as well as your local technical support team and product hotlines, take a look at the ETAS website: ETAS subsidiaries Internet: www.etas.com/en/contact.php ETAS technical support Internet: www.etas.com/en/hotlines.php... -
Page 74: Figures
BR_XETK-S1.0 Connection to the ECU ........27 Fig. 5-3 BR_XETK-S1.0 connected to CBEB100.1 with ETAS cables ....29 Fig. 5-4 BR_XETK-S1.0 connected to CBEB100.1 with customer specific cable . - Page 75 ETAS Figures Fig. 8-12 CBAM295 Cable ............54 Fig.
-
Page 76: Index
ETAS Index Index Accident prevention ....9 LED ....... .22 Adapter ETAM10 .
