Summary of Contents for ETAS CBN100.1

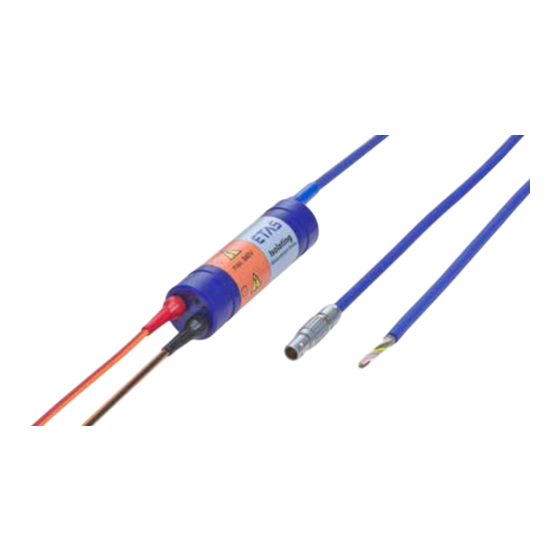

- Page 1 CBN100.1/ CBN102.1/ CBN104.1/ CBN106.1 Isolating Measurement Probe User’s Guide www.etas.com...
- Page 2 The data in this document may not be altered or amended without special noti- fication from ETAS GmbH. ETAS GmbH undertakes no further obligation in relation to this document. The software described in it can only be used if the customer is in possession of a general license agreement or single license.
-
Page 3: Table Of Contents
Expanded functions when using the TEDS information of the Isolating Measurement Probes CBN100.1 and CBN106.1 ....17 Applications ............18 Technical data . - Page 4 CBN100.1 ........
-
Page 5: About This Document
Presentation of Instructions The target to be achieved is defined in the heading. The necessary steps for his are in a step-by-step guide: Target definition 1. Step 1 2. Step 2 3. Step 3 > Result CBN100.1/CBN102.1/CBN104.1/CBN106.1 - User’s Guide... -
Page 6: Typographical Conventions
ETAS About this Document Typographical Conventions Hardware Bold Menu commands, buttons, labels of the product Italic Emphasis on content and newly introduced terms Presentation of Supporting Information NOTE Contains additional supporting information. CBN100.1/CBN102.1/CBN104.1/CBN106.1 - User’s Guide... -
Page 7: General
Safety Instructions 2.1.1 General safety information Please observe the product safety advice ("ETAS Safety Advice CBN" and the subsequent safety instructions to avoid any impact on your health or damages to the device. NOTE Carefully read the documentation that belongs to the product (ETAS Safety Advice CBN and this User’s Guide) prior to the startup. - Page 8 A damaged Isolating Measurement Probe must be decommissioned imme- diately! Ensure that the damaged Isolating Measurement Probe is not longer being used! A repair of the Isolating Measurement Probe is not possible, attempts to repair are not permissible! CBN100.1/CBN102.1/CBN104.1/CBN106.1 - User’s Guide...
-
Page 9: Identifications On The Product
Observe the information in chapter “Technical data” on page 19. CE marking ETAS confirms that the product meets the product-specific applicable Euro- pean Directives with the CE marking affixed to the product or its packaging. The CE Declaration of Conformity for the product is available upon request. -
Page 10: Product Return And Recycling
The user is obligated to collect used equipment separately and provide them to the WEEE return system for recycling. The WEEE directive relates to all ETAS equipment, but not to external cables or batteries. Additional information about the recycling program of ETAS GmbH can be obtained from the ETAS sales and service branch offices (see chapter 6 on page 28). -
Page 11: Hardware Description
A/D module IPETRONIK M-SENSE 4 CBN106.1 Lemo FGG.1B.310 with A/D module Softing MA08.1 NOTE The complete technical data of the Isolating Measurement Probe CBN100.1/ CBN102.1/ CBN104.1/ CBN106.1 is located in the chapter “Technical data” on page 19. CBN100.1/CBN102.1/CBN104.1/CBN106.1 - User’s Guide... -
Page 12: Properties
Unless otherwise indicated, the descriptions, properties and technical data in this manual apply to all variants of the Isolating Measurement Probe (CBN100.1, CBN102.1, CBN104.1 and CBN106.1). In these text segments, the common short name "CBN100.1/ CBN102.1/ CBN104.1/ CBN106.1" is being used. NOTE... -
Page 13: Assemblies And Function
Except for the assembly of the connectors at the low-voltage side, the four variants of the Isolating Measurement Probe feature an identical electrical and mechanical design. Fig. 3-1 Design of the Isolating Measurement Probe CBN100.1/ CBN102.1/ CBN104.1/ CBN106.1 (top down) CBN100.1/CBN102.1/CBN104.1/CBN106.1 - User’s Guide... -
Page 14: Measuring Channel
ETAS Hardware description No. in Fig. 3-1 Designation Connection to the measurement module (low-voltage side): Open Wire (CBN100.1), Lemo FGA.0B.306 (CBN102.1), Lemo FGG.1B.306 (CBN104.1) and Lemo FGG.1B.310 (CBN106.1) Short name and type-part number of product Serial number of product Hardware version number of product... -
Page 15: Connections And Cabling
Serial number The serial number is located on the low-voltage side of the Isolating Measure- ment Probe CBN100.1/ CBN102.1/ CBN104.1/ CBN106.1 (no. 3 in Fig. 3-1 on page 13). It is required when you contact the technical customer service of ETAS. -
Page 16: Notes About Commissioning
Probe and A/D module must be manually entered by the user in the application software for every Isolating Measurement Probe. ETAS provides these values in a calibration certificate for every Isolating Measurement Probe. In the supplied calibration certificate, which is... -
Page 17: Cbn104.1/ Cbn106.1
CBN100.1/CBN106.1, • Information about the required measuring range. If the Isolating Measurement Probe CBN100.1 or the Isolating Measurement Probe CBN106.1 is operated with a customer-specific application software that uses procedures in accordance with TEDS standard and if the application soft-... -
Page 18: Applications
ECU. CBN100.1/CBN102.1/CBN104.1/CBN106.1 - User’s Guide... -
Page 19: Technical Data
Isolating Measurement Probe feature an identical electrical and mechanical design. General data NOTE The power supply used for the CBN100.1/ CBN102.1/ CBN104.1/ CBN106.1 Isolating Measurement Probe must be permanent protected against over- load and short circuit. 4.1.1 Standards and guidelines met The Isolating Measurement Probe CBN100.1/ CBN102.1/ CBN104.1/... -
Page 20: Type Check
4.1.2 Type check The CBN100.1/ CBN102.1/ CBN104.1/ CBN106.1 Isolating Measurement Probe was checked by an accredited test lab with respect to type and certified. Information about the type check of the product are available from ETAS upon request. 4.1.3 Application... -
Page 21: Electrical Data
NOTE Unless specified otherwise, all data apply at 25 °C. WARNING Dependency of the maximum permissible input voltage of the CBN100.1/ CBN102.1/ CBN104.1/ CBN106.1 Isolating Measurement Probe on the application altitude! The maximum permissible input voltage of the CBN100.1/ CBN102.1/ CBN104.1/ CBN106.1 Isolating Measurement Probe depends on its applica-... -
Page 22: Mechanical Data
Technical data Frequency Response CBN10x frequency response, +/-1000V input variant Relative response 100k Frequency / Hz Fig. 4-1 Isolating Measurement Probe Frequency Response Mechanical data Fig. 4-2 Dimensions CBN100.1 Fig. 4-3 Dimensions CBN102.1 Fig. 4-4 Dimensions CBN104.1 CBN100.1/CBN102.1/CBN104.1/CBN106.1 - User’s Guide... -
Page 23: Pin Assignment
(stretched length; connection at A/D module) B: 88 mm (diameter: 25 mm) C: 200 mm (high-voltage connection) Weight approx. 105 g (without plug) Pin Assignment 4.5.1 High-voltage side (CBN100.1/ CBN102.1/ CBN104.1/ CBN106.1) Color Signal Description red/orange Input „+“ black/orange Input „-“... -
Page 24: Fig. 4-6 Lemo Fga.0B.306.Cla
Lemo FGG.1B.306.CLA Signal Description Out+ Output voltage of the measurement probe, plus Out- Output voltage of the measurement probe, minus Supply Supply voltage, plus Supply_GND Supply voltage, ground NOTE Cable shield is connected with Lemo plug housing. CBN100.1/CBN102.1/CBN104.1/CBN106.1 - User’s Guide... -
Page 25: Fig. 4-8 Lemo Fgg.1B.310.Cla
Supply_GND Supply voltage, ground Out+ Output voltage of the measurement probe, plus N.C. No connection N.C. No connection TEDS- TEDS, GND 9, Housing Cable shield TEDS+ TEDS NOTE Cable shield is connected with Lemo plug housing. CBN100.1/CBN102.1/CBN104.1/CBN106.1 - User’s Guide... -
Page 26: Ordering Information
Isolating Measurement Probe 5.1.1 CBN100.1 Order name Short name Order number CBN100.1 Isolating Measurement Probe, CBN100.1-1 F 00K 107 887 840 V Isolation, 1 Channel, 840 V Range, Open Wires - Open Wires (6c - 2c), 1 m Scope of supply CBN100.1 Isolating Measurement Probe... -
Page 27: Cbn106.1
840 V Isolation, 1 Channel, 840 V Range, Lemo FGG.1B.310 - Open Wires (6m - 2c), Scope of supply CBN106.1 Isolating Measurement Probe (840 V), Routine Test Certificate CBN1xx, ETAS Safety Advice, Calibration Certifi- cate, China-RoHS-leaflet_Com- pact_green_cn, CDROM ES4xx_DRV_SW_CD (driver and tools for ES4xx) -
Page 28: Contact Information
Germany Internet: www.etas.com ETAS Subsidiaries and Technical Support For details of your local sales office as well as your local technical support team and product hotlines, take a look at the ETAS website: ETAS subsidiaries Internet: www.etas.com/en/contact.php ETAS technical support Internet: www.etas.com/en/hotlines.php... -
Page 29: Figures
Dimensions CBN100.1 ........ -
Page 30: Index
Calibration Service ....27 CBN100.1 ......26 CBN102.1 .
