- Page 1 ETAS ES610.1 A/D Module User Guide...
- Page 2 The data in this document may not be altered or amended without special noti- fication from ETAS GmbH. ETAS GmbH undertakes no further obligation in relation to this document. The software described in it can only be used if the customer is in possession of a general license agreement or single license.
-
Page 3: Table Of Contents
ES610.1 A/D Module ........ - Page 4 Ethernet Cable/Power Supply Cable ........33 7.3.1 Y-Cable (ES610.1 in Stand-alone Mode) ......33 7.3.2 Connecting Cables to the ES600.1 .
-
Page 5: About This Document
Presentation of Instructions The target to be achieved is defined in the heading. The necessary steps for his are in a step-by-step guide: Target definition 1. Step 1 2. Step 2 3. Step 3 > Result ES610.1 - User Guide... -
Page 6: Typographical Conventions
ETAS About this Document Typographical Conventions Hardware Bold Menu commands, buttons, labels of the product Italic Emphasis on content and newly introduced terms Presentation of Supporting Information NOTE Contains additional supporting information. ES610.1 - User Guide... -
Page 7: About This Manual
(see chapter 8 on page 36). Additional cables and adapters can be obtained separately from ETAS. A list of available accessories and their order designation is located in chapter “Acces- sories” on page 36 of this manual or in the ETAS product catalog. -
Page 8: Basic Safety Notices
Intended use........... 8 General safety information Please observe the Product Safety Notices ("ETAS Safety Notice") and the fol- lowing safety notices to avoid health issues or damage to the device. - Page 9 The lab power supply must be approved for an operating altitude of 5000 m and for an ambient temperature of up to 70 °C. • In regular operation of the modules as well as very long standby opera- tion, a discharge of the vehicle battery is possible. ES610.1 - User Guide...
- Page 10 • Adhere to the maximum permissible cable lengths! • Do not use any damaged cables! Cables may be repaired only by ETAS! • Never apply force to insert a plug into a socket. Ensure that there is no contamination in and on the connection, that the plug fits the socket, and that you correctly aligned the plugs with the connection.
- Page 11 Do not transport the modules at the cable of the module or any other cables. Maintenance The product is maintenance-free. Repair If an ETAS hardware product should require a repair, return the product to ETAS. Cleaning the module housing • Use a dry or lightly moistened, soft, lint-free cloth for cleaning the module housing.
- Page 12 CAUTION Damage to the module and loss of properties based on IP20! Do not open or change the module housing! Work on the module housing may only be performed by ETAS. Potential equalization CAUTION Potential equalization in the vehicle is possible via the shield of the...
-
Page 13: Hardware Description
ES610.1 A/D Module ........ -
Page 14: Es610.1 A/D Module

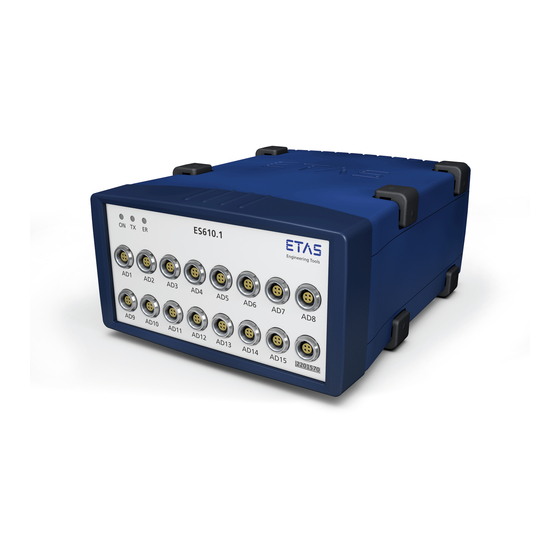

INCA also provides you the functionality for data acquisition and data evalua- tion. ES610.1 A/D Module 4.2.1 Overview The ES610.1 is designed to measure analog input voltages. It provides you with sixteen channels for analog input voltages. E S 6 1 0 . 1 A D 1... -
Page 15: Features
Automatic power saving feature (standby mode) • Rugged, functional metal housing • Member of the ETAS Tool Suite – supported by INCA For complete technical data of the ES610.1, refer to Chapter “Technical Data” on page 25. ES610.1 - User Guide... -
Page 16: Package Contents
Before using your ES610.1, check that the unit has been delivered with all required parts and cables. Housing The ES610.1 uses a housing with connections on the front and the rear side of the device. The robust metal housing of the ES610.1 is equipped with non-slip plastic feet. -
Page 17: Ports And Indicators
ETAS Hardware Description Ports and Indicators The ES610.1 has three indicators (LEDs), sixteen ports for sensors and trans- ducers, one combined Ethernet/power supply port, and one port for an external display. 4.5.1 Front Side Fig. 4-3 ES610.1 Front panel Ports The 16 ports AD1 to AD16 for the analog input voltages are located on the front panel. -
Page 18: Rear Side
Operational State An error has occurred. Measurement (duration > 5 s) accuracy may be out of specification. Please send the unit to ETAS for service. red, bright blink- A serious error has occurred. Measure- ments are no longer possible. Please send the unit to ETAS for repair. -
Page 19: Maximum Input And Common-Mode Voltages
) = 2 U = 60 V CMxy CMyz 10 V + 5 V + 10 V + 15 V + max(U ) = 60 V CMyz max(U ) = 60 V - 40 V = 20 V CMyz ES610.1 - User Guide... -
Page 20: Getting Started
5.1.2 Fastening the module onto a carrier system The ES610.1 has a robust metal housing equipped with non-slip plastic feet. The module can easily be screwed onto a support system for fastening in the vehicle or lab. The screw threads for fastening the module are already in the housing and easily accessible. -
Page 21: Connecting Several Modules Mechanically
5.1.3 Connecting several modules mechanically Because of the use of ETAS system enclosures, the ES610.1 can also be com- bined with modules of the ETAS compact series (ES59x, ES6xx, ES910). They can simply be combined into larger blocks by using the supplied T-connectors. -
Page 22: Cabling
Cabling This section describes how to connect the sensors, transducers and the host PC to your ES610.1 A/D Module. For information on how to connect several ES6xx series devices to a host PC, see the ES600 User Manual. NOTE The ports of the ES610.1 and of the sensors may carry dangerous voltages... - Page 23 To use the ES610.1 with additional ES6xx series devices: 1. To use your ES610.1 with several ES6xx series devices, con- nect the 7-29 V / HOST port of the ES610.1 to an ES600 via a CBE130 or a CBE140 cable that can be ordered separately. Be sure to observe the color coding of the connectors.
-
Page 24: Configuration
The ES610.1 has no switches or controls. The configuration is exclusively per- formed by software within INCA. Write down which signal you have connected to which input of the ES610.1. Use the configuration sheet in Section “Configuration” on page 39 for this pur- pose. -
Page 25: Technical Data
Marking for CE conformity (Chapter 6.3 on page 27) Marking for UKCA conformity (Chapter 6.4 on page 27) Marking for KCC conformity (Chapter 6.5 on page 27) Labeling for RoHS (China), see chapter 6.2.2 on page 27 ES610.1 - User Guide... -
Page 26: Fulfilled Standards And Norms
Degree of pollution NOTE The module is suited for use in interiors, in the passenger compartment or in the luggage compartment of vehicles. The ES610.1 is not suited for installa- tion in the engine compartment and similar environments. 6.1.4 Maintenance the Product Do not open or change the module! Works on the module housing may be exe- cuted only by qualified technical personnel. -
Page 27: Rohs Conformity
China RoHS marking affixed to the product or its packaging. CE conformity With the CE mark attached to the product or its packaging, ETAS confirms that the product corresponds to the product-specific, applicable directives of the European Union. -
Page 28: Use Of Open Source Software
System Requirements 6.8.1 Hardware Operating the ES610.1 module requires a DC voltage supply of 7 V to 29 V. PC with one Ethernet interface A PC with one open Ethernet interface (10 Mbit/s, full duplex) with RJ-45 con- nection is required. Ethernet interfaces that are implemented with an additional network card in the PC must feature a 32-bit data bus. -
Page 29: Software
ETAS Technical Data 6.8.2 Software INCA V4.0 or higher is required for the configuration of the ES610.1 and for control and data acquisition. It is not possible to run the ES610.1 with earlier INCA versions. Electrical Data 6.9.1 Power Supply Operating voltage (reverse-polarity 7 to 29 V ±10 % (DC);... -
Page 30: Analog Voltage Inputs
6.10 Pin Assignment This section specifies the pin assignment of the electrical connectors of the ES610.1. All connectors are shown as seen on the front or back panel of the ES610.1. NOTE All shieldings are at case potential. The housings are galvanically isolated from all inputs and outputs. -
Page 31: Analog Inputs
External Display Signal Meaning STBY5V Supply voltage, standby, 5 V Receive data Send data DTRE Ready to receive Ground Ground VCC5 Supply voltage, 5 V NOTE The current firmware version does not yet support the external display. ES610.1 - User Guide... -
Page 32: Cables And Accessories
Cables and Accessories This chapter contains information on the following topics: NOTE Only use ETAS cables at the interfaces of the ES610.1. The maximum admis- sible cable lengths must be adhered to. • Measuring Cable ..........32 •... -
Page 33: Ethernet Cable/Power Supply Cable
Connect the power cable only with a suitable vehicle battery or with a suitable lab power supply! The connection to power outlets is not allowed! To prevent an inadvertent insertion in power outlets, ETAS recommends to equip the power cables with safety banana plugs CBEP1105 or CBEP1205 in areas with power outlets. -
Page 34: Connecting Cables To The Es600.1
CBE130 (Straight Cable) Side A Side B Fig. 7-8 CBE130 Cable Product Length Order Number CBE130-0m45 0.45 m F 00K 102 748 CBE130-1 F 00K 102 588 CBE130-3 F 00K 102 587 CBE130-8 F 00K 102 586 ES610.1 - User Guide... -
Page 35: Fig. 7-9 Cbe140-0M45 Cable
CBE140 (Angled Cable) Side A Side B Fig. 7-9 CBE140-0m45 Cable Product Length Order Number CBE140-0m45 0.45 m F 00K 104 153 CBE140-1 F 00K 104 154 CBE140-3 F 00K 104 155 CBE140-8 F 00K 104 156 ES610.1 - User Guide... -
Page 36: Ordering Information
ETAS Ordering Information Ordering Information ES610.1 Order Name Short Name Order Number ES610.1 Module, Cable CBEP110-2, ES610.1 F 00K 102 915 4 T-Brackets for ES600 Housing ES610.1 Module, ES610.1-SCB F 00K 104 053 4 T-Brackets for ES600 Housing Accessories Combined Ethernet Cable and Power Supply Cord (Y-Cable) -
Page 37: Calibration
T-bracket for housing ES600_H_TB F-00K-001-925 Unit feet ES600_H_F F-00K-001-924 8.2.1 Calibration NOTICE ETAS recommends a calibration interval of 12 months. 8.2.1.1 Factory calibration Factory calibration service • Verification of measurement accuracy • Issue a standard-compliant calibration certificate Order name Short name... - Page 38 • Issue an internationally recognized ISO/IEC 17025 calibration certifi- cate. Order name Short name Order number DAkkS calibration service for ES610 DAkkS_C_ES610 F-00K-112-782 Accredited adjustment service according to ISO/IEC 17025 • Verification of measurement accuracy by accredited calibration labora- tory •...
-
Page 39: Configuration
Configuration The following form can be used to note the individual connections to your ES610.1. These data will assist you in configuring your ES610.1 in INCA later Copy this page and fill out the tables when cabling your measuring system. -
Page 40: Contact Information
Germany Internet: www.etas.com ETAS Subsidiaries and Technical Support For details of your local sales office as well as your local technical support team and product hotlines, take a look at the ETAS website: ETAS subsidiaries Internet: www.etas.com/en/contact.php ETAS technical support Internet: www.etas.com/en/hotlines.php... -
Page 41: Figures
ES610.1 A/D Module back panel ........ -
Page 42: Index
Product Back ..... . .27 ES600_H_TB ......37 ES610.1 - User Guide... - Page 43 WEEE take-back System ... . .28 Y-cable ......36 ES610.1 - User Guide...
