6.4

Connections and Control Elements

The front side of the ES830.1 module features the following connections and con-
trol elements:

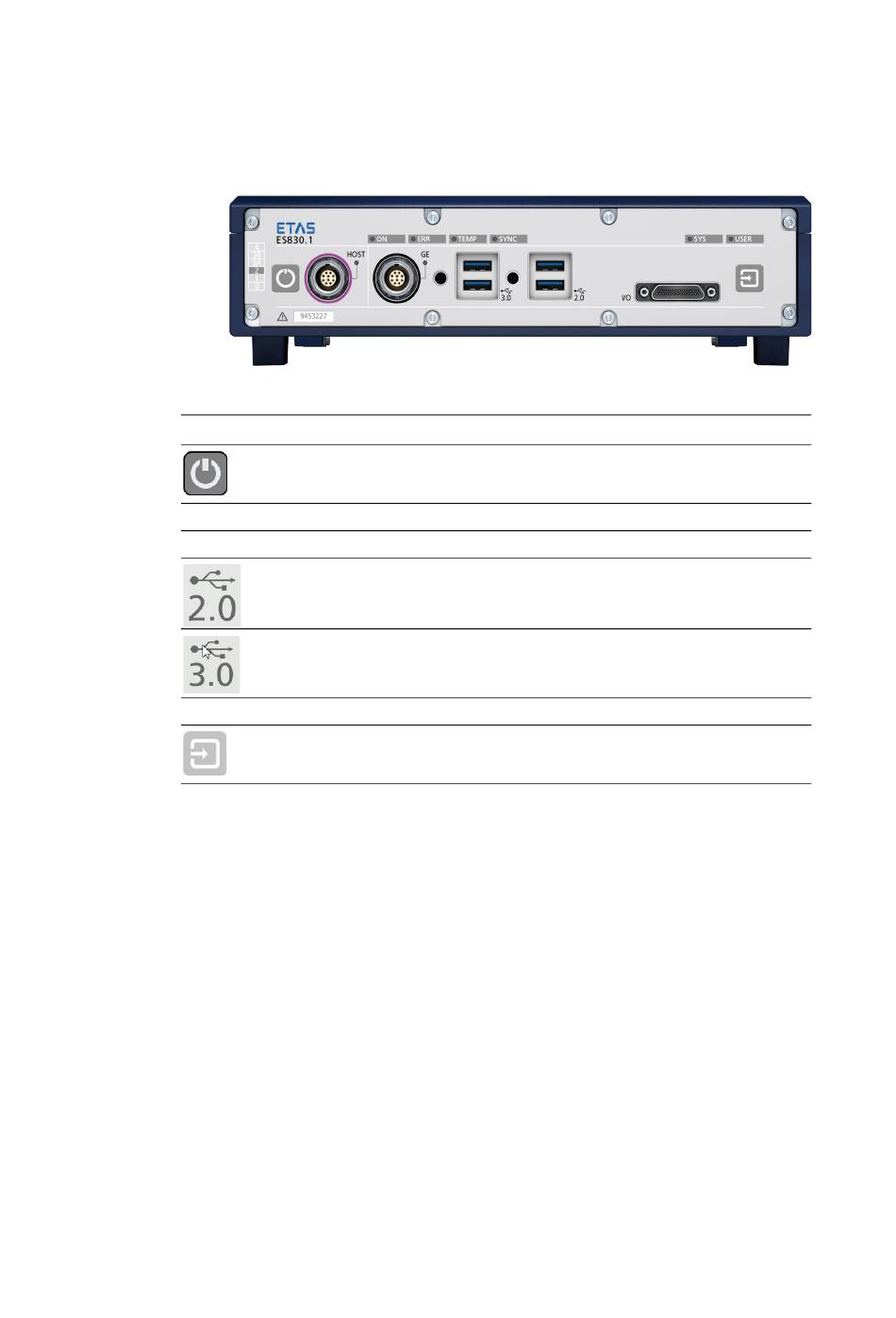

Fig. 6-2
Name
HOST
GE
I/O
Information on combining modules of the ES800 system with ETAS modules from
other series can be found in chapter 3.7 on page 27.
ETAS ES800 System | User Guide

ES830.1 Front Side

Interface
"Power" key for switching on
and off
1 x Gigabit Ethernet (HOST)
1 x Gigabit Ethernet
2 x USB 2.0
2 x USB 3.0
Digital inputs and outputs
"User" key
For description see
Chapter 6.5.5 on page 53
Chapter 12.1 on page 89
Chapter 12.3 on page 91
Chapter 6.5.2 on page 52
Chapter 6.5.2 on page 52
Chapter 6.5.3 on page 52
Chapter 6.5.6 on page 53
