Installation

Framing

1. Prepare a wall with a framed opening, following the dimensions in the table below. Openings beneath the unit are
required in order to allow for air ow to reach the underside of the unit. (Figure 6)
Model
OLF46-AM
OLF66-AM
OLF86-AM
CAUTION: This replace is NOT load-bearing. Ensure the opening for the replace is framed in such a way that
the weight of the building materials will not create pressure on the top of the replace.
!
NOTE: Field wiring is located at the top right back corner of the rebox. The connection to water supply is
located at the bottom left back corner of the rebox. Plan the framing to allow routing the electrical power cable
and the cold-water line to this location.
!
NOTE: Ensure the unit is level and ush with the framing.

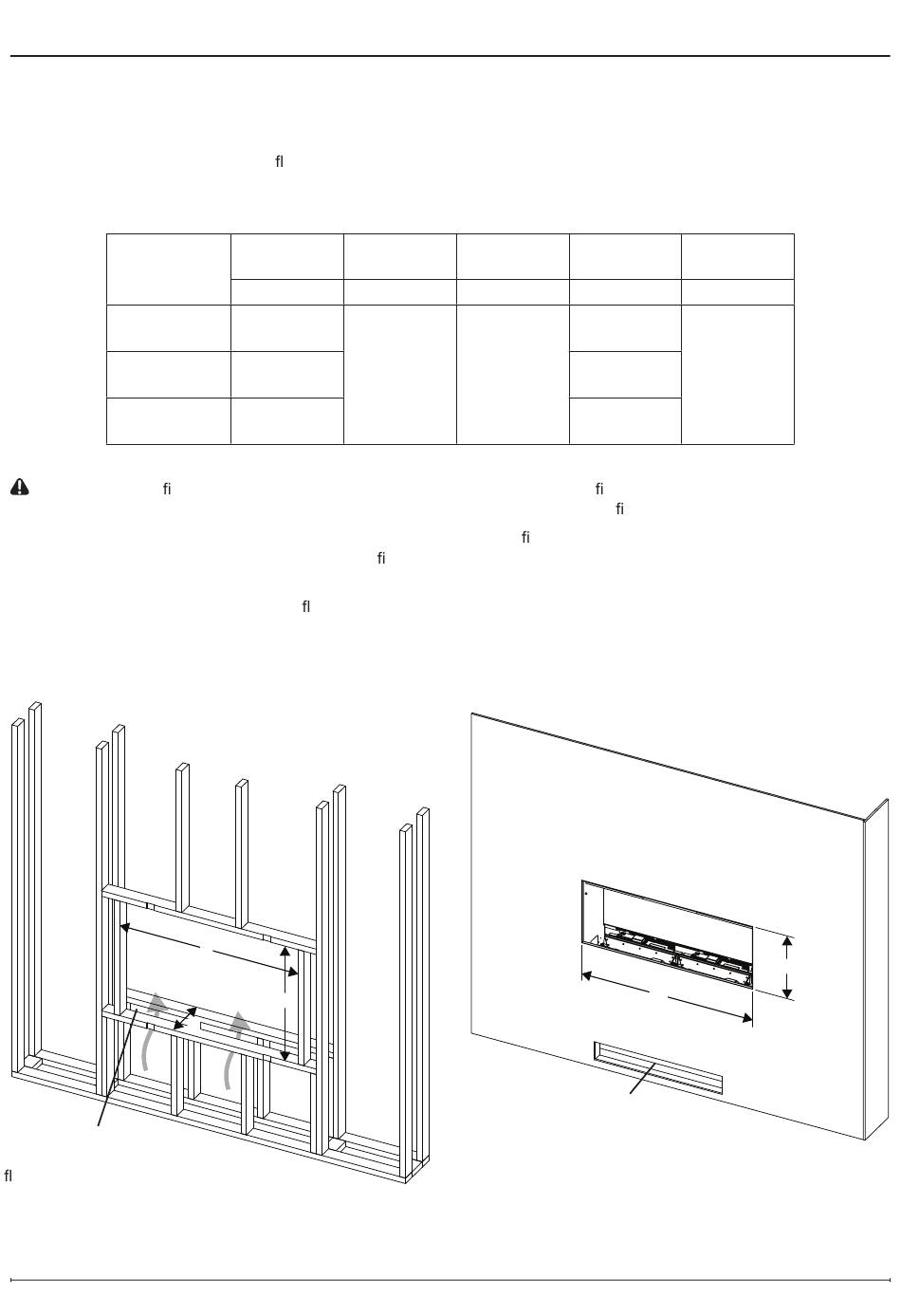

Figure 5
Ensure there is an
opening to allow air
ow to reach the
underside of the unit
Framing Dimensions
Width
(minimum)
A
48"
1219 mm
68"
1727 mm
88"
2235 mm
A
B
C
Depth
Height
(minimum)
B C
32 ½" 12"
826 mm
305 mm
* Allows for a 2 mm clearance all around
Figure 6
Drywall Opening
Width Height
D* E*
46 / "
3
16
1174 mm
66 / " 17 ½"
3
16
1682 mm 445 mm
86 / "
3
16
2190 mm
D
Air inlet
E
