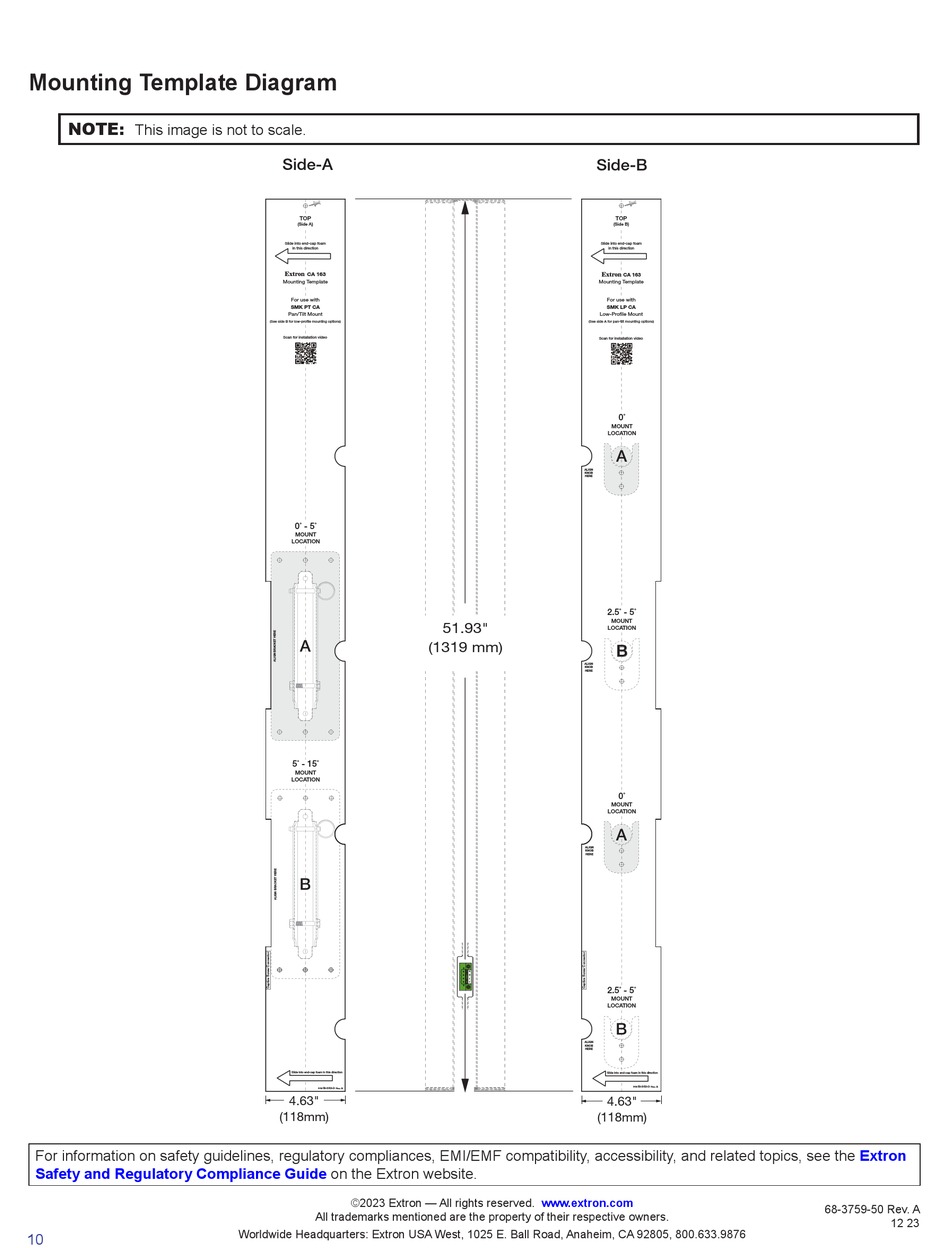

Mounting Template Diagram
NOTE:
This image is not to scale.
For information on safety guidelines, regulatory compliances, EMI/EMF compatibility, accessibility, and related topics, see the
Safety and Regulatory Compliance Guide
10
Side-A
TOP
(Side A)
Slide into end-cap foam
in this direction
e CA 163
Mounting Template
For use with
SMK PT CA
Pan/Tilt Mount
(See side B for low-pro le mounting options)
Scan for installation video
0˚ - 5˚
MOUNT
LOCATION
A
5˚ - 15˚
MOUNT
LOCATION
B
Slide into end-cap foam in this direction
P/N 68-3759-51 Rev. B
4.63"
(118mm)
on the Extron website.
©2023 Extron — All rights reserved.
All trademarks mentioned are the property of their respective owners.
Worldwide Headquarters: Extron USA West, 1025 E. Ball Road, Anaheim, CA 92805, 800.633.9876
Side-B
Slide into end-cap foam
e
Mounting Template
For use with
SMK LP CA
Low-Pro le Mount
(See side A for pan-tilt mounting options)
Scan for installation video
ALIGN
KNOB
HERE
2.5˚ - 5˚
51.93"
(1319 mm)
ALIGN
KNOB
HERE
ALIGN
KNOB
HERE
2.5˚ - 5˚
LOCATION
ALIGN
KNOB
HERE
Slide into end-cap foam in this direction
4.63"
(118mm)
www.extron.com
TOP
(Side B)
in this direction
CA 163
0˚
MOUNT
LOCATION
A
MOUNT
LOCATION
B B
0˚
MOUNT
LOCATION
A
MOUNT
B
P/N 68-3759-51 Rev. B
