NOTES:
• If the Wall Bracket Assembly cannot
be attached to at least two wall studs,
then attach one end of the assembly
to the wall using one stud and attach
the other end using two (not included)
1/4" Kap Toggles.
• If the studs must align with the middle
of the Wall Bracket Assembly, secure
the assembly to the studs using two
screws, and to the wall using two (not
included) 1/4" Kap Toggles (one on
the leftmost top slot and one on the
rightmost top slot).
3. Mark or drill the the wall stud locations through
the template ( ) where four screws (not
3
included) will secure the Wall Bracket Assembly
to the wall.
4. When marking is complete, remove the template
from the wall. Set aside, but DO NOT discard.
5. If necessary, cut a hole in the wall to route cables
to the CA 163 speaker.
6. If not already done, drill four pilot holes through
the marked locations on the wall.
7. Use appropriate hardware to securely attach
the Wall Plate Assembly to the wall studs (
(example - using #14 x 1 3/4" self-tapping wood
or metal screws and 1/4" SAE washers).
DO NOT mount Wall Bracket Assembly over the
Mounting Template.

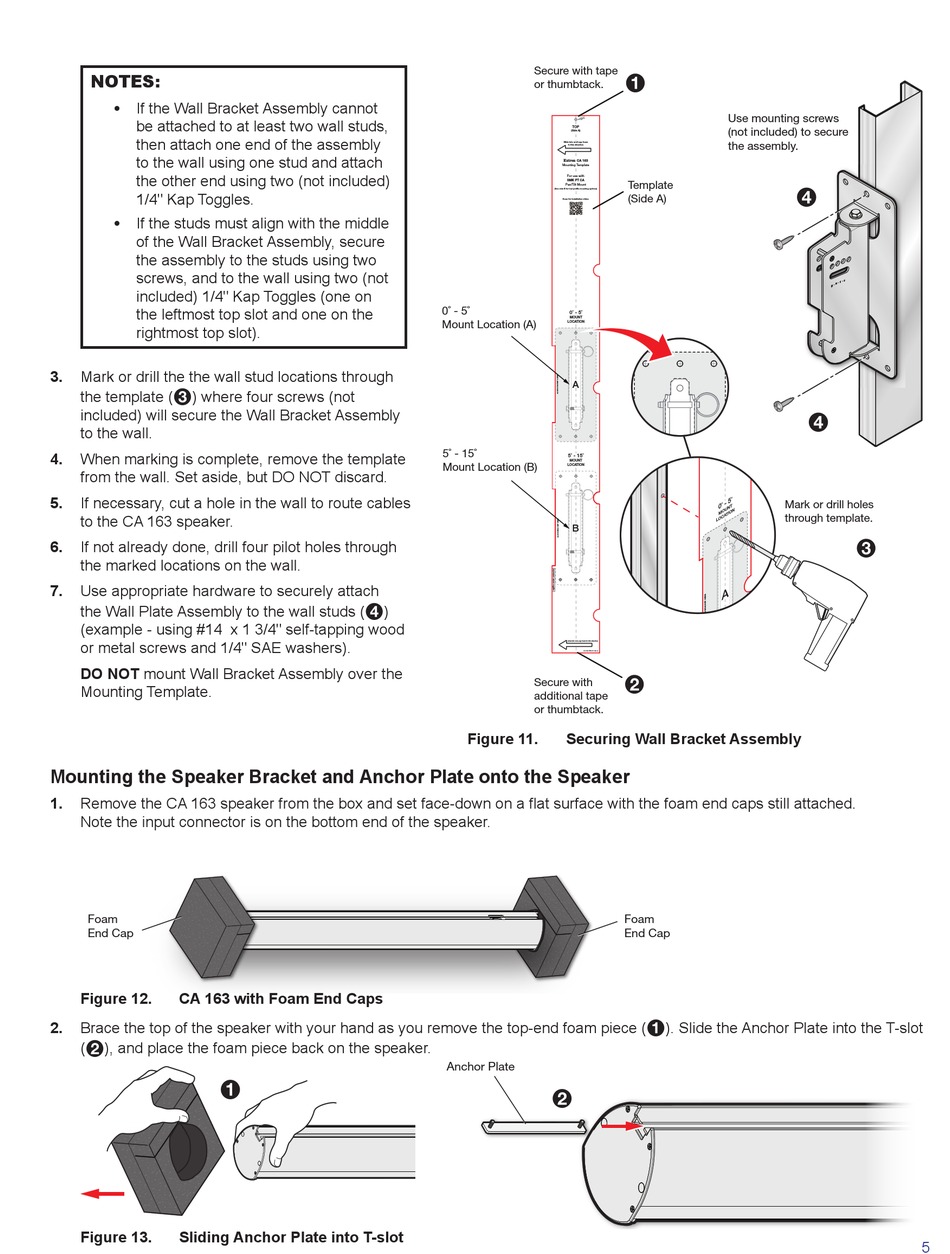

Mounting the Speaker Bracket and Anchor Plate onto the Speaker
1. Remove the CA 163 speaker from the box and set face-down on a flat surface with the foam end caps still attached.
Note the input connector is on the bottom end of the speaker.
Foam
End Cap
Figure 12. CA 163 with Foam End Caps
2. Brace the top of the speaker with your hand as you remove the top-end foam piece (
( ), and place the foam piece back on the speaker.
