Related Manuals for Extron electronics CA 163
Summary of Contents for Extron electronics CA 163

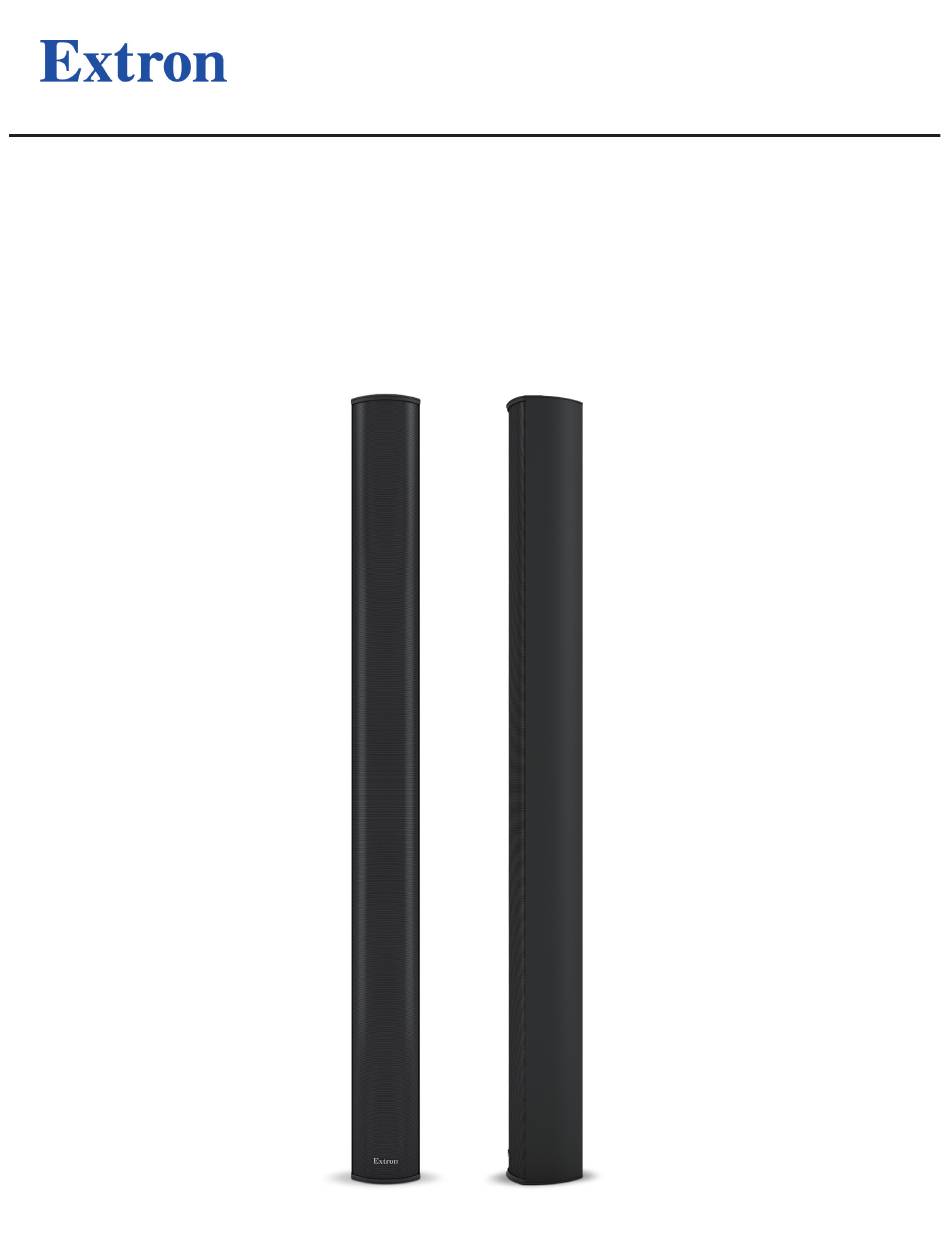

- Page 1 CA 163 Column Array Speaker Column Array Speaker User Guide 68-3759-01, Rev. A 02 24...
- Page 2 Safety Instructions Safety Instructions • English Instructions de sécurité • Français AVERTISSEMENT : Ce pictogramme, , lorsqu’il est utilisé sur le WARNING: This symbol, , when used on the product, is intended to produit, signale à l’utilisateur la présence à l’intérieur du boîtier du produit alert the user of the presence of uninsulated dangerous voltage within the d’une tension électrique dangereuse susceptible de provoquer un choc product’s enclosure that may present a risk of electric shock.
- Page 3 • 安全说明 简体中文 警告： 产品上的这个标志意在警告用户, 该产品机壳内有暴露的危险 电压， 有触电危险。 注意： 产品上的这个标志意在提示用户, 设备随附的用户手册中有重 要的操作和维护(维修)说明。 关于我们产品的安全指南、遵循的规范、EMI/EMF 的兼容性、无障碍使 用的特性等相关内容， www.extron.com 敬请访问 Extron 网站 , ，参见 Extron 安全规范指南，产品 编号 68-290-01 。 安全記事 • 繁體中文 안전 지침 • 한국어 경고: 이 기호 가 제품에 사용될 경우, 제품의 인클로저 내에 있는 警告: 若產品上使用此符號，...
- Page 4 Conventions Used in this Guide Notifications The following notifications are used in this guide: WARNING: Same border as DANGER. AVERTISSEMENT : This is French for Warning. NOTE: A note draws attention to important information. TIP: A tip provides a suggestion to make working with the application easier. Specifications Availability Product specifications are available on the Extron website, www.extron.com.
-
Page 5: Table Of Contents
Adjusting the Pan-Tilt Bracket Angles ....13 Secondary Tie-off ..........14 ..........15 Reference Information Speaker Wiring Options ........15 Mounting Template Diagram ........ 16 Upward Tilt Mounting for SMK LP CA ....17 ............18 Extron Warranty CA 163 Column Array Speaker • Contents... - Page 6 CA 163 Column Array Speaker • Contents...
-
Page 7: Introduction
The CA 163 PT includes a pan and tilt wall mount with up to 15° of tilt and up to 130° of pan, while the CA 163 LP includes a low-profile wall mount with up to 5°... -
Page 8: Product Diagram
(for the SMK LP CA) or Anchor Plates (SMK PT CA) can slide in through either end to the desired locations. Secure and re-adjust if needed. 4-pole 5mm captive screw input connector — For installing speaker wires, see Reference Information page 15. CA 163 Column Array Speaker • Introduction... -
Page 9: Application Examples
Application Examples See the three CA 163 application configuration examples below: Figure 2. Speaker Application Example - Large Room Figure 3. Speaker Application Example - Lecture Hall CA 163 Column Array Speaker • Introduction... - Page 10 Figure 4. Speaker Application Example - Common Area CA 163 Column Array Speaker • Introduction...
-
Page 11: Mounting Options
Mounting Options ________________________________________________________________ The CA 163 Loudspeaker can be wall mounted with either of the following mounting options: • SMK LP CA Low-Profile Mounting Bracket Kit — mounts flat; can be adjusted for ±2.5° and ±5° tilt. • SMK PT CA Pan-Tilt Mounting Bracket Kit —... -
Page 12: Smk Lp Ca Low-Profile Mounting Bracket Kit
SMK LP CA Low-Profile Mounting Bracket Kit The SMK LP CA Low-Profile Bracket allows for the CA 163 column loudspeaker to be positioned flat against the wall (less than 1” off the surface), where little to no tilt is required (up to ±5° tilt max). -
Page 13: Mounting Carriage Bolts And Knurled Knobs Onto The Speaker
Mounting Carriage Bolts and Knurled Knobs onto the Speaker 1. Remove the CA 163 speaker from the box and set face-down on a flat surface with the two foam caps still attached. Note the input connector is on the bottom end of the speaker. -
Page 14: Mounting The Speaker Onto The Wall Brackets
22” distance to 44”, the 2 Extension Knobs provide 1.25° or 2.5° tilt. If more than 5° tilt is required, see SMK PT CA Pan-Tilt Mounting Bracket Kit on page 9. Pre-installed Low-Profile Set Screw Bracket CA 163 Column Array Speaker • Mounting Options... -
Page 15: Smk Pt Ca Pan-Tilt Mounting Bracket Kit
Slide into end-cap foam in this direction P/N 68-3759-51 Rev. B 3. Mark (or drill holes) for the wall stud locations 2 2 2 Secure with additional tape through the template ( or thumbtack. CA 163 Column Array Speaker • Mounting Options... -
Page 16: Mounting The Speaker Bracket And Anchor Plate Onto The Speaker
Mounting the Speaker Bracket and Anchor Plate onto the Speaker 1. Remove the CA 163 speaker from the box and set face-down on a flat surface with the foam end caps still attached. Note the input connector is on the bottom end of the speaker. - Page 17 (7.0- 7.5 ft-lb) (9.6 - 10.1 N-m) to secure the Speaker Bracket in place. Speaker Bracket Mount Positions (A) Use the cutout to align Speaker Bracket. Speaker Bracket Figure 15. Align and Secure Speaker Bracket Assembly CA 163 Column Array Speaker • Mounting Options...
-
Page 18: Mounting The Speaker Onto The Pan-Tilt Wall Bracket Assembly
Figure 17. Attach Speaker to Wall Mount 3. The speaker is now fully supported by the wall mount, though not fully secured. Refer to Adjusting the Pan- Tilt Bracket Angles on page 13 for the next steps. CA 163 Column Array Speaker • Mounting Options... -
Page 19: Adjusting The Pan-Tilt Bracket Angles
(see figure 19). Position speaker at required angle and tighten Angle Set Screw to 85-90 in-lb (7.0- 7.5 ft-lb) (9.6 - 10.1 N-m) to secure. Angle Adjustment Slot Wall Bracket Speaker Bracket Figure 19. Angle Adjustment Slot CA 163 Column Array Speaker • Mounting Options... -
Page 20: Secondary Tie-Off
2. Tighten nut to secure the assembly in place. 3. Attach tie cable to building structure. Anchor this end to a suitable secure point. Secondary Attachment Cable Attach cable here and secure. Figure 20. Secure Secondary Tie-off CA 163 Column Array Speaker • Mounting Options... -
Page 21: Reference Information
Speaker Wiring Options NOTES: • Be sure to observe the rated minimum load impedance of the amplifier when daisy-chaining multiple speakers. • The connector can support wire gauges up to 12 AWG. CA 163 Column Array Speaker • Mounting Options... -
Page 22: Mounting Template Diagram
Slide into end-cap foam in this direction Slide into end-cap foam in this direction P/N 68-3759-51 Rev. B P/N 68-3759-51 Rev. B 4.63" 4.63" (118mm) (118mm) Figure 22. Mounting Template DIagram - NOT TO SCALE CA 163 Column Array Speaker • Reference Information... -
Page 23: Upward Tilt Mounting For Smk Lp Ca
Knurled knob Mout Positions (B) Captive Screw Connector 2.5° 5° Figure 23. Align and Secure Knurled Knobs for Upward Tilt 5. Continue to Mounting the Speaker onto the Wall Brackets on page 8. CA 163 Column Array Speaker • Reference Information... -
Page 24: Extron Warranty
Extron Electronics makes no further warranties either expressed or implied with respect to the product and its quality, performance, merchantability, or fitness for any particular use. In no event will Extron Electronics be liable for direct, indirect, or consequential damages resulting from any defect in this product even if Extron Electronics has been advised of such damage.
