CyberData 011405 Installation Quick Reference page 2

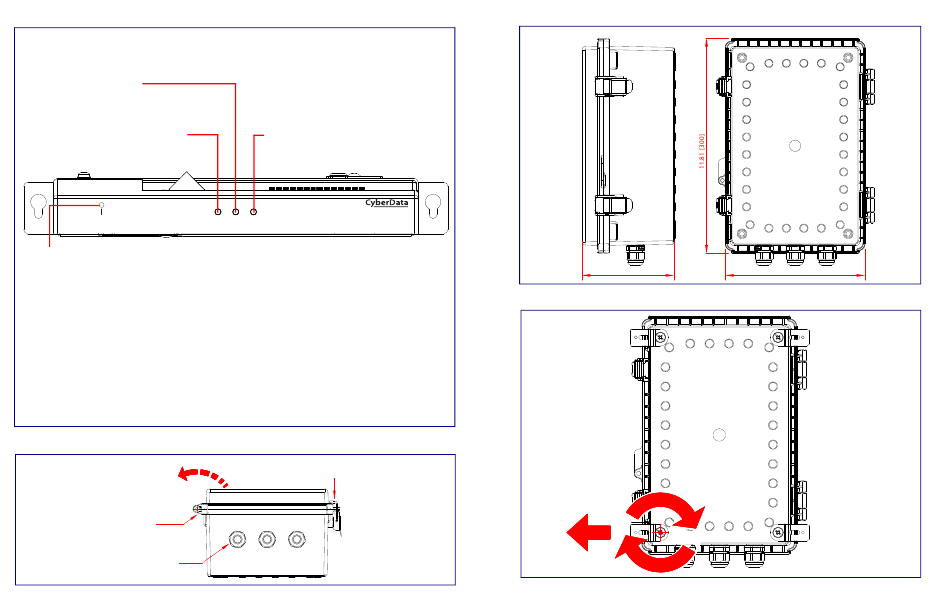

Features of the Paging Amplifier
Power (PWR) LED ( GREEN /BLUE)
The Power (PWR) LED is:
GREEN in low power mode ( 802.3af)
BLUE during high power mode ( 802.3at) .
Link/Network Activity (Link/Act.) LED ( GREEN )
The GREEN Link/Network Activity (Link/Act.)
LED blinks to indicate network traffic.
Link / Act.
RTFM
RTFM Switch
To broadcast the device's current IP address, press and hold the RTFM switch for a couple of seconds and then release it.
To restore the factory defaults, complete the following steps:
1. Press and hold the RTFM switch for several seconds.
2. Release the RTFM switch. The device will be restored to the factory default settings, and will announce "restoring defaults" and
"rebooting."
*See the Operations Guide for more information about the features in this section.
Enclosure Features
COVER OPEN LEFT
HINGES
THREE CABLE GLAND WITH
ONE HOLE PLUG
© 2023, CyberData Corporation, ALL RIGHTS RESERVED
Status LED ( GREEN )
The GREEN Status LED illuminates
after supplying power to the device.
Paging
Status
The IP Endpoint Company
Amplifier
Power
LATCHES
931979A
Dimensions
Notes:
1. Dimensions
are in inches
[millimeters].
2. Projection:
Third Angle
Mounting Brackets (package of four included)
Quick Reference Quick Reference
5.12 [130] 7.87 [200]
931979A © 2023, CyberData Corporation, ALL RIGHTS RESERVED
Pull the mounting bracket
outward while tightening the
screw. Do the same to all
four mounting brackets.
