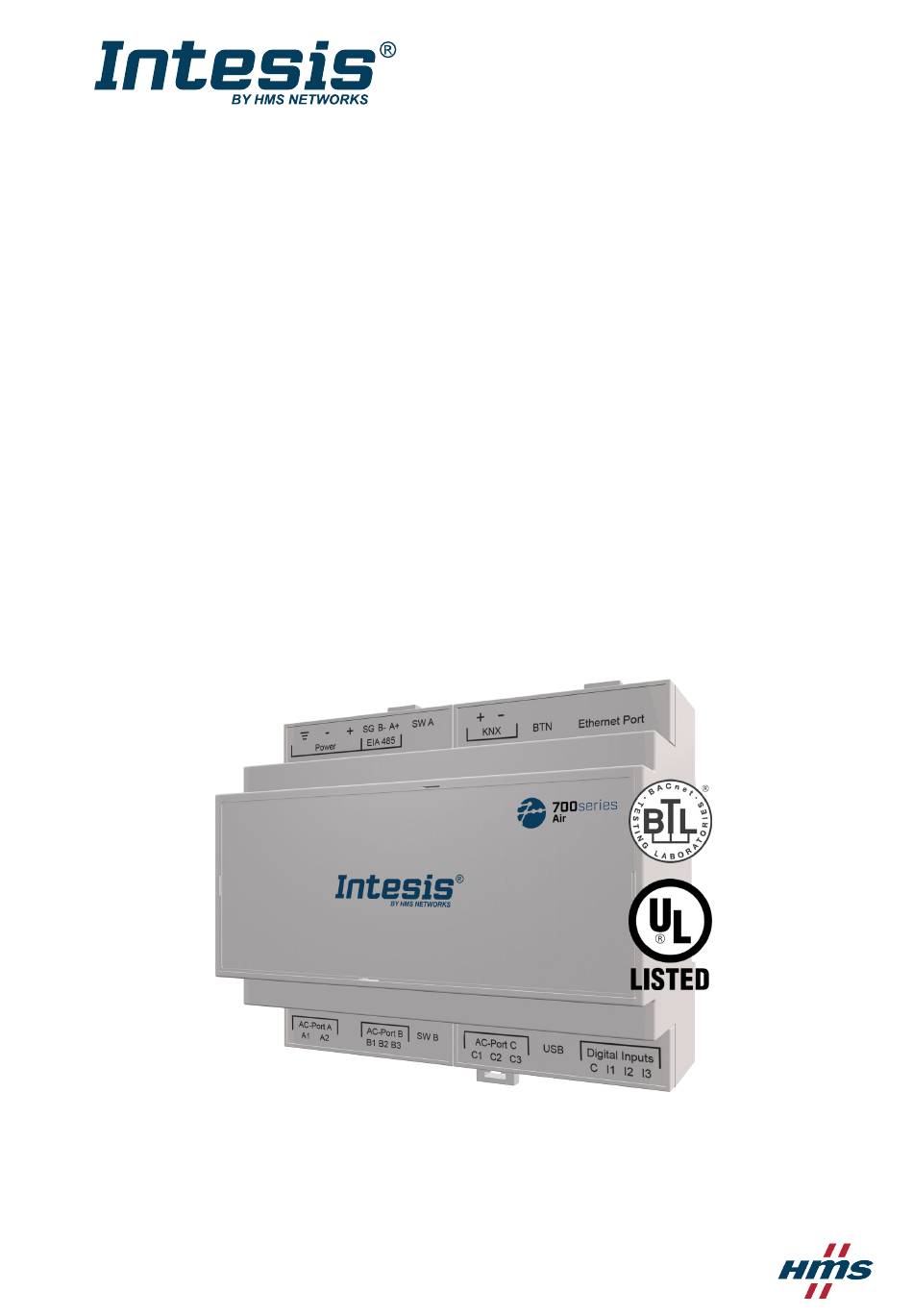

ENGLISH

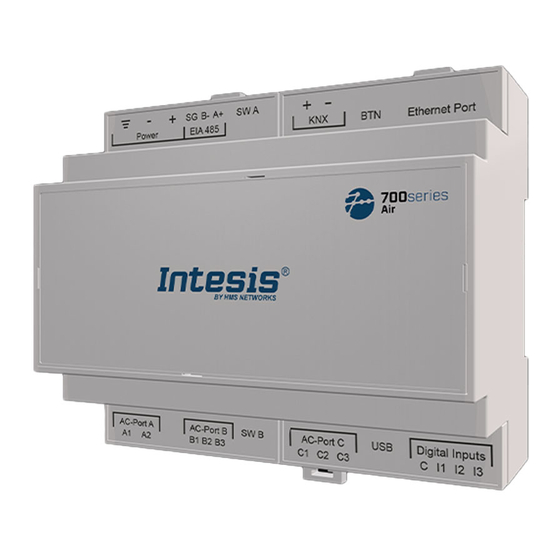

Midea commercial and VRF with KNX, Serial, and IP support
IN770AIR⁎⁎⁎O000 GATEWAY
USER MANUAL
Version 1.0.12
Publication date 2024-06-20
