ETC Installation Manual
QuickTouch+ Mk2 Control Panel and Electronics

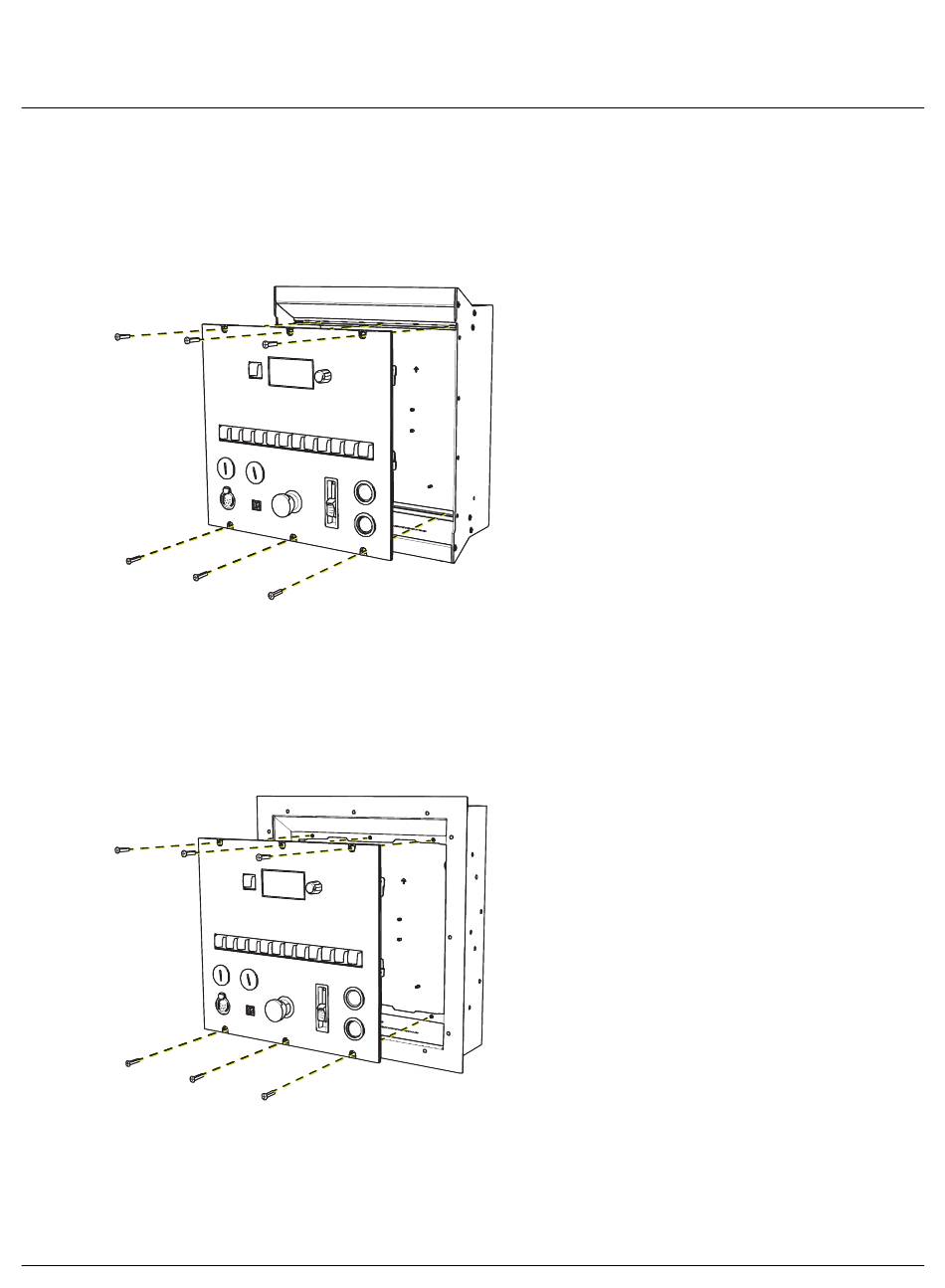

Secure in Back Box
With all of the wiring terminations complete, secure the control panel in the back box.
Surface-Mount
Place the electronics inside the back box and line up the screw holes in the control panel with the
screw troughs in the back box. Scure the panel to the back box using the screws provided.
Flush-Mount
1. Remove the trim plate and screws while holding the control panel and electronics.
2. Place the trim plate between the control panel and the back box.
3. Align the screw holes for the control panel, trim plate, and mounting rails that are inside the
back box.
4. Secure the control panel and trim plate to the mounting rails using the appropriate size
screws (long and short are provided).
For current and complete compliance information, view the product datasheets at
etcconnect.com. For complete product documentation, including compliance documentation, visit
etcconnect.com/products.
QuickTouch+ Mk2 Control Panel and Electronics
Page 7 of 7
