Terminate Cable to Connectors

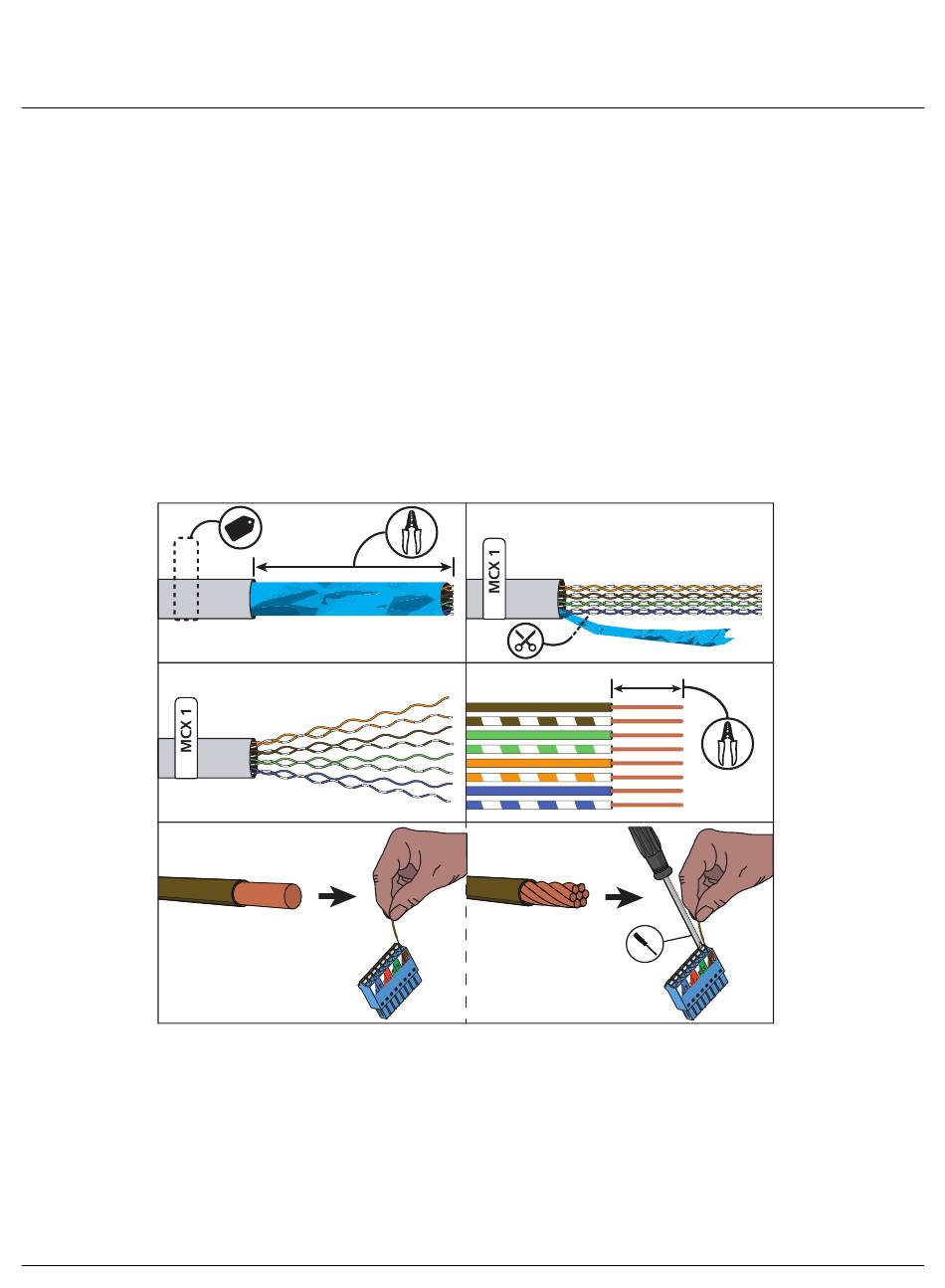

Terminate the wires of your control cables according to the control wiring diagram and labels on
the connectors:
1. Label your cables (i.e. MCX, E-stop) and strip 40 mm (1.5 in) of the end of the outer cable
jacket using a sheathing tool or cutter, making sure not to damage the shield or insulation of
the inner conductors. If one of the conductors are damaged, cut the cable off squarely and
start over.
2. Fold the shield back to allow access to the conductors.
3. Fan out the wires in the appropriate order according to the Control Wire Diagram.
4. Strip the ends of each conductor 10 mm (0.4 in).
5. Insert the wires into the connector and verify the color coded order as shown on the
connector label
a. If you are using solid core wire, you can insert the conductor without pressing down on
the button.
b. If you are using stranded wire, you must use a 3 mm (1/8 in) small flatblade screwdriver to
press down the corresponding button on the connector and then insert the conductor.
1.
3.
5a.
QuickTouch+ Mk2 Control Panel and Electronics
40 mm (1.5 in)
Cat5/5e
Cat6/6a
Cat5/5e
Cat6/6a
2.
Cat5/5e
Cat6/6a
10 mm (0.4 in)
4.
5b.
Page 4 of 7
3 mm
(1/8 in)
ETC
