ETC Installation Manual
QuickTouch+ Mk2 Control Panel and Electronics
System Configuration
Before you install the control panel and electronics to the back box, you must terminate the
control wiring for your system. There are two connectors that ship installed in the back of the
electronics.

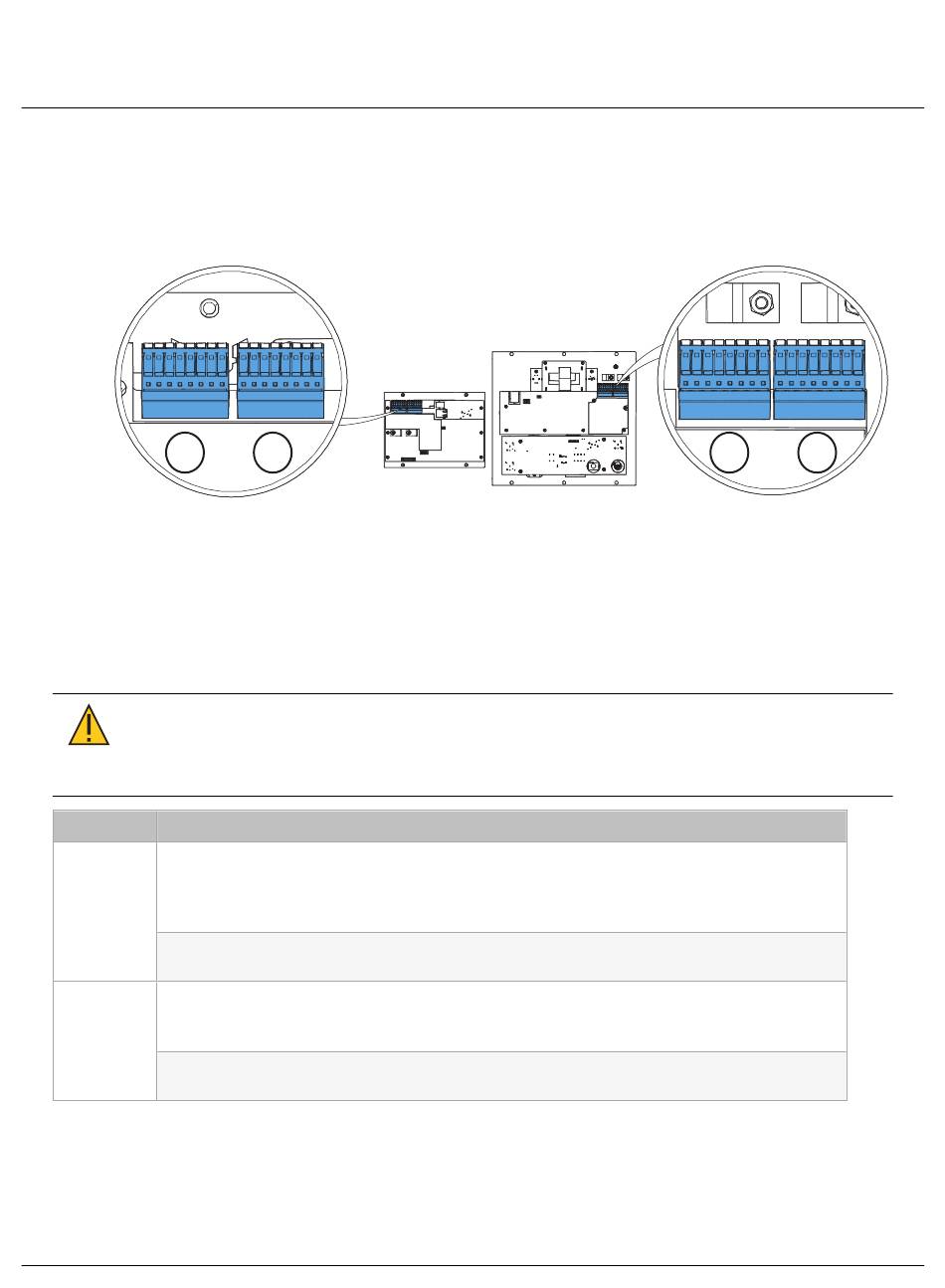

QT+ MK2 1CH
A
A MCX Connection
B E-stop Connection
Remove the clamp-style connectors from the board, as shown above (Mk2 1CH on the left and
Mk2 6CH/12CH on the right) before you terminate your wiring.
Use the following table to determine how to use the two control wiring connections and where
the cable should be routed based on your system configuration.
CAUTION:
(Cat-5e or better) cable from the last E-stop button station on one end of the
system to the last Power and Distribution (PCD) box on the other end of the
system.
Connection
Option 1: You have at least one external E-stop in your system. Run the cable from
here to the bottom connection on the first E-stop station in your system. Move the
termination jumper from here to the top connection on the last E-stop station in your
E-stop
system.
Option 2: You have no external E-stop stations in your system. Leave the termination
jumper in this location.
Option 1: You have a Rigging System Power Injector (RSPI) powering your
QuickTouch+ controller. Run the cable from here to the bottom connection on the
RSPI.
MCX
Option 2: You do not have a RSPI powering your QuickTouch+ controller. Run the
cable from here to the Power and Control Distribution (PCD) electronics.
QuickTouch+ Mk2 Control Panel and Electronics
B
Do not exceed a maximum run length of 152 m (500 ft) of Ethernet
Configuration Options
Page 2 of 7
QT+ MK2 6CH/12CH
A
B
