TIME MODE

In Time Mode the pump will operate at a selected rpm and/or flow rate for a selected time and batch total. At
the completion of the selected time or batch total the pump will automatically stop.

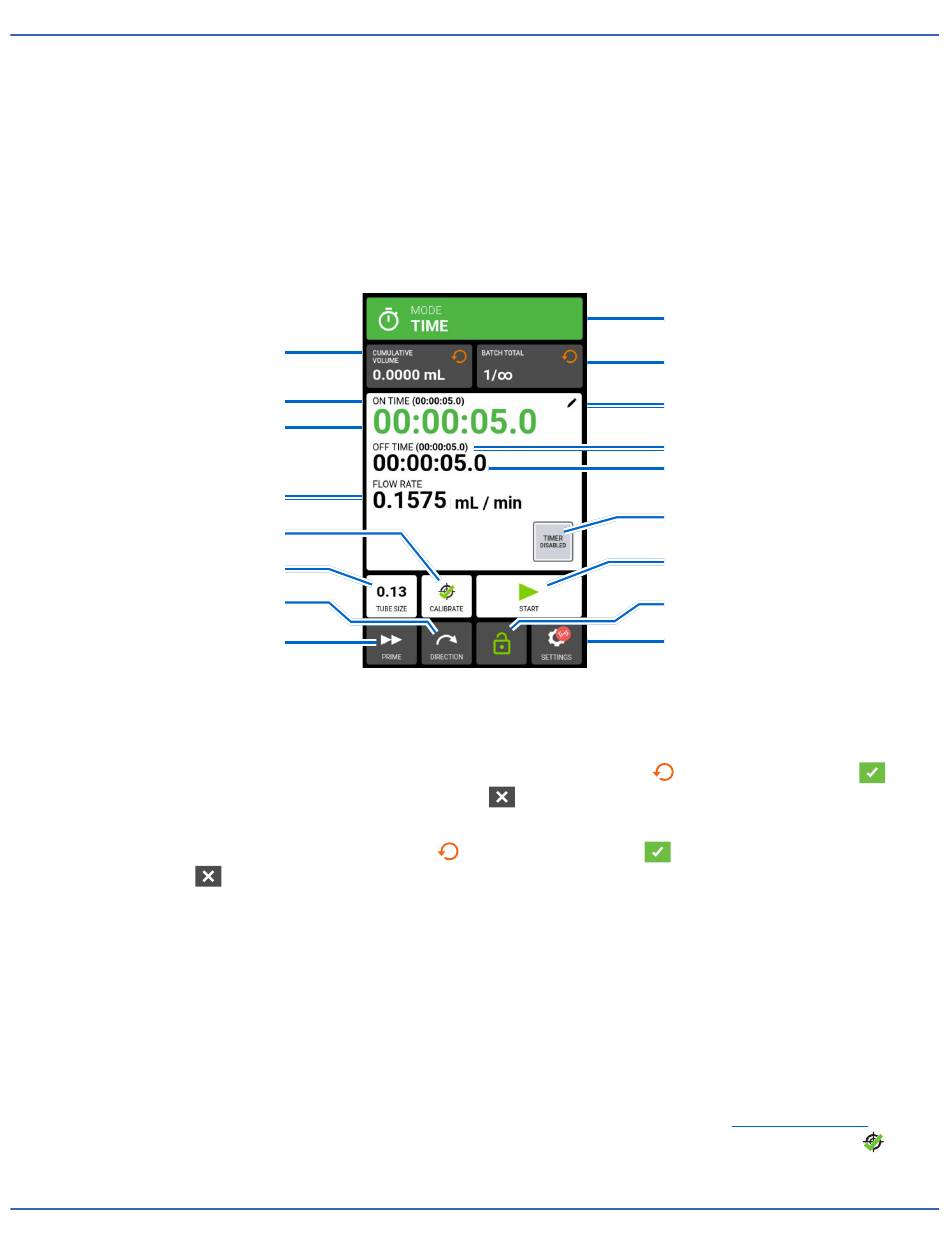

Time Mode Run Screen

The Time Mode Run Screen is accessed by selecting TIME from the Mode Selection Screen.
B. Cumulative Volume
D. Set On Time
E. On Time Counter
N. Flow Direction
A. MODE NAME BANNER: Tap the Mode Name Banner to return to the Mode Selection Screen.
B. CUMULATIVE VOLUME: Displays the current cumulative volume of fluid that has been pumped. To
reset the cumulative volume: Tap CUMULATIVE VOLUME RESET
reset the cumulative volume to zero, or CANCEL
C. BATCH TOTAL: Displays the number of dispenses that have been completed in the current batch. To
reset the batch total: Tap BATCH RESET
or CANCEL
D. SET ON TIME: Displays the set dispense operation time.
E. ON TIME COUNTER: Displays a countdown of the set dispense time during operation.
F. EDIT: Tap to access the Flow Options Screen. From the Flow Options Screen changes can be made to
flow rate, flow units, on time, off time, and batch total.
G. SET OFF TIME: Displays the set duration of time the pump pauses between each dispense operation.
H. OFF TIME COUNTER: Displays a countdown of the set off time during operation.
I. FLOW RATE: Displays the current flow rate in the unit of measurement selected by the user.
J. CALIBRATE: Tap to access the Calibration Screen (for further information see
page 2-22). Once calibration has been completed for the current tube size Calibration Complete
be displayed.
