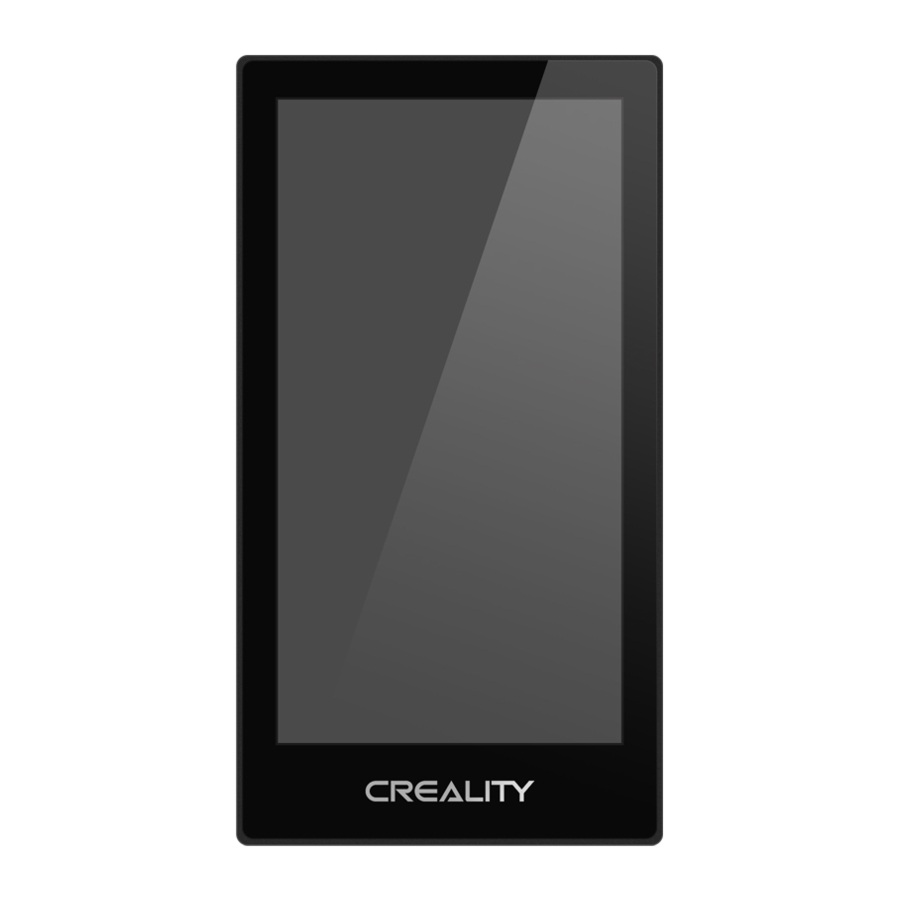

Creality 3D Pad Mini - 4.3 Inches Display Screen Kit Manual

Parts Included

Installation Guide of the Unit

Direction of Use for the Device

Print with the unit

1. Preparation before printing

2. Auto Home

3. Return to Main Page
4. Click to Print

5. Select G-code File

6. Printing Adjustment
   (Print head, hot bed temperature, speed & Z axis data adjustable)

7. Return to Print Page


Leveling Process

1. Click to level

2. Automatic leveling
   (Printer comes with automatic leveling)

3. Manual leveling


Direction of Use for Creative3D Slicing Software

Firmware and slicing software download URL:
https://www.creality.com/download
Creality 3D Pad bracket download URL:
https://www.crealitycloud.cn/model

1. Main Menu;
2. Printer Setting;
3. Model Adjustment Window;
4. Slice Setting;
5. Model View

Matters Needing Attention and Maintenance

1. The power adapter of Creality 3D Pad is 5V/1A;
2. To avoid errors, please unplug the original screen while using Creality 3D Pad
3. Please plug printer and Creality 3D Pad separately, make sure that the printer is plugged earlier than Creality 3D Pad, or at the same time at least.
4. Creality 3D Pad comes with filament run-out sensor, plug and print. The original sensor will be disabled.
5. Creality 3D Pad works with Marlin Firmware FDM printers, and single-hotend printers;
6. To preview models on Pad, the printing model has to be sliced by Creality 3D Pad-v3.3.1.-10-win64-Alphaon.

Business Name: WLS Panda GmbH
Business address: Eleonorastr. 40 45136 essen Germany

SHENZHEN CREALITY 3D TECHNOLOGY СО., LTD.
Add: 18F, JinXiuHongDu Building, Meilong Blvd.,
Longhua Dist., Shenzhen, China 518131
Offlcial Website: www.creality.com Tel: +86 755-8523 4565
E-mail: info@creality.com
cs@creality.com
