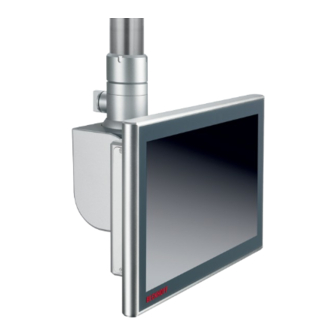

- Page 1 Manual | EN CP37xx-1600 Multi-touch Panel PC 2023-10-17 | Version: 1.8...
-
Page 3: Table Of Contents
Grounding the Panel PC .................... 33 4.3.2 Connecting cables and power supply ................ 35 Switching the Panel PC on and off.................... 37 5 Beckhoff Device Manager ........................ 38 6 Decommissioning ........................... 40 Disconnecting the power supply and cables ................... 40 Disassembly and disposal....................... 41 7 Maintenance ............................ 43... - Page 4 Table of contents 10 Appendix .............................. 51 10.1 Service and support ........................ 51 10.2 Approvals ............................ 52 Version: 1.8 CP37xx-1600...
-
Page 5: Notes On The Documentation
Copyright © Beckhoff Automation GmbH & Co. KG. Publication of this document on websites other than ours is prohibited. Offenders will be held liable for the payment of damages. All rights reserved in the event of the grant of a patent, utility model or design. -
Page 6: For Your Safety
Exclusion of liability Beckhoff shall not be liable in the event of non-compliance with this documentation and thus the use of the devices outside the documented operating conditions. -
Page 7: Fundamental Safety Instructions
For your safety Fundamental safety instructions The following safety instructions must be observed when handling the the Panel PC. Application conditions • Do not use the device under extreme environmental conditions. • Only use the device in hazardous areas if it is explicitly designed for this purpose. •... -
Page 8: Notes On Information Security
For your safety Notes on information security The products of Beckhoff Automation GmbH & Co. KG (Beckhoff), insofar as they can be accessed online, are equipped with security functions that support the secure operation of plants, systems, machines and networks. Despite the security functions, the creation, implementation and constant updating of a holistic security concept for the operation are necessary to protect the respective plant, system, machine and networks against cyber threats. -
Page 9: Product Overview
Product overview Product overview With the CP37xx-1600 series you can use multi-touch directly in the field. The devices in the robust aluminum housing are designed for mounting arm installation. The connection cables are routed through the mounting arm. Thanks to its processors, you can use the panel PC for the following applications, among others: •... -
Page 10: Fig. 1 Without And With Push Button Extension
Product overview Fig. 1: Without and with push button extension Version: 1.8 CP37xx-1600... -
Page 11: Structure
Product overview Structure Figure 2 shows the device configuration as an example of all CP37xx-1600 versions. Fig. 2: Structure Table 1: CP37xx-1600 configuration legend Component Description Mounting arm tube Mounting arm tube for installation from below or above USB interface under screw cap Connection of peripheral devices Name plate Information on the equipment of the panel PC... -
Page 12: Interface Description
Product overview Interface description In the basic configuration, the panel PC includes the following interfaces: • Power supply (X101) • Ethernet RJ45 (X102) • USB The voltage socket and the Ethernet interface are located at the rear in the connection compartment of the PC. -
Page 13: Power Supply
(0 V) and 6 (24 V). If the panel PC is equipped with an integrated uninterruptible power supply (UPS), an external battery can additionally be connected to PIN 1 and PIN 2. The two Beckhoff options C9900-U330 and C9900-U332 are available for this purpose. -
Page 14: Fig. 5 Ethernet Interface Pin Numbering
Product overview The RJ45 connection technology with twisted-pair cables is used. The maximum length of the cable connection is 100 m. The Ethernet port is suitable for cycle times <= 1 ms and for distributed clock applications with EtherCAT. ® The Intel i210 is used as controller. -
Page 15: Usb
Product overview 3.2.3 The panel PC has a USB 3.0 interface. This is used to connect peripheral devices with USB connection. The interface is located behind a screw cap. It supplies 900 mA current and is electronically fused. Fig. 6: USB interface pin numbering Table 5: USB interface pin assignment Connection Vbus... -
Page 16: Optional Interfaces
Product overview Optional interfaces You can expand the panel PC beyond the basic configuration with additional interfaces in the connection compartment. The following ordering options are available: • Ethernet RJ45 (order identifier: C9900-B416) • Ethernet RJ45 (order identifier: C9900-E185) • RS232 (order identifier: C9900-E186) •... -
Page 17: Rs232
Product overview 3.3.2 RS232 The optional RS232 interface includes an M12 socket according to IP65. The interface provides an asynchronous, serial communication method defined in the RS232 standard. Fig. 8: RS232 interface pin numbering Table 7: RS232 pin assignment Signal Type Description Carrier recognized Signal in Receive Data... -
Page 18: Rs485
Product overview Table 9: RS422 standard configuration Function State Echo Auto send Always send Auto receive Always receive Termination 3.3.4 RS485 The optional RS485 serial interface includes an electrically isolated M12 IP65 socket for high-speed serial data transmission. The channel features overvoltage protection. If an overvoltage occurs, the channel is switched off. 11 12 Fig. 10: RS485 interface pin numbering Table 10: RS485 pin assignment... -
Page 19: Fig. 11 Usb Interface Pin Numbering
Product overview Table 12: Ordering options for USB interfaces Options Description C9900-E283 IP65 connector in connection compartment for one USB 3.0 port, push-pull USB 3.0 socket C9900-E190 USB-A socket in the connection compartment for a USB 2.0 port, with IP65 cover C9900-E304 USB-A socket in the connection compartment for a USB 3.0 port, with IP65 cover 1 2 3 4... -
Page 20: Name Plate
Product overview Name plate The name plate provides information about the equipment of your panel PC. The name plate shown here serves only as an example. xxxxxxxx xxxxxxxxxxxxx xxxxxxxxxxxxx Fig. 12: Name plate Table 14: Legend for CP37xx-1600 name plate Description Model: the last four digits indicate the product variant. Serial number (BTN) Date of manufacture Mainboard... -
Page 21: Connecting Cable
Product overview Connecting cable Optionally, ready-made connecting cables for all connections are available in various lengths. You can order them using the following article descriptions: Table 15: Power supply cable Connecting cable Power supply cable with IP65 plug C9900-K271 Power supply cable IP65 for CP32xx, CP37xx or CP72xx, length 5 m, pre- assembled, M23 socket, screwable, 8-wire, second end open C9900-K272 Power supply cable IP65 for CP32xx, CP37xx or CP72xx, length 10 m, pre-... -
Page 22: Commissioning
You can either order a Beckhoff protective film individually and fit it yourself retrospectively, or you can order the film for fitting directly ex factory. Please refer to the price list for the available protective films according to the display size of your device. - Page 23 5. Check the contents for visible shipping damage. 6. In case of discrepancies between the package contents and the order, or in case of transport damage, please inform Beckhoff Service (see Chapter 10.1 Service and Support [} 51]). CP37xx-1600 Version: 1.8...
-
Page 24: Mounting
Installing the mounting arm adapter If you have chosen one of the two mounting arm adapters from Beckhoff referred to above, the installation procedure is the same in both cases. Before the installation you have to decide whether you want to orient the device upwards or downwards (see Fig. -
Page 25: Fig. 14 Orientation Of The Mounting Arm Adapter
Commissioning Fig. 14: Orientation of the mounting arm adapter To fasten the mounting arm adapter to the panel PC, follow the steps below, shown in Fig. 15: 1. Remove the cover of the mounting arm adapter (section A). For the exact procedure, see chapter 3.2 Interface description [} 12]. -
Page 26: Fig. 16 Mounting Arm Adapter Installed
Commissioning Fig. 16: Mounting arm adapter installed A strain relief plate is located inside the mounting arm adapter. You can relocate this according to your requirements. Version: 1.8 CP37xx-1600... -
Page 27: Dimensions
Commissioning 4.2.1 Dimensions All dimensions are in mm. Fig. 17 shows the dimensions of the 15-inch panel PC. 63,5 325,2 360,8 37,5 Fig. 17: CP3715-1600_dimensions Fig. 18 shows the dimensions of the 15.6-inch panel PC. 67,5 325,2 405,8 37,5 Fig. 18: CP3716-1600_dimensions Fig. -
Page 28: Fig. 19 Cp3716-1600_Push Button Extension Dimensions
Commissioning 67,5 325,2 37,5 405,8 33,5 Fig. 19: CP3716-1600_push button extension dimensions Fig. 20 shows the dimensions of the 18.5-inch panel PC. 64,5 325,2 471,8 37,5 Fig. 20: CP3718-1600_dimensions Fig. 21 shows the dimensions of the 18.5-inch panel PC with push button extension. 65,5 325,2 471,8... -
Page 29: Fig. 22 Cp3719-1600_Dimensions
Commissioning Fig. 22 shows the dimensions of the 19-inch panel PC. 3x M5 - 6H 66,5 325,2 433,2 37,5 Fig. 22: CP3719-1600_dimensions Fig. 23 shows the dimensions of the 21.5-inch panel PC. 65,5 325,2 537,2 37,5 Fig. 23: CP3721-1600_dimensions Fig. 24 shows the dimensions of the 21.5-inch panel PC with push button extension. CP37xx-1600 Version: 1.8... -
Page 30: Fig. 24 Cp3721-1600_Push Button Extension Dimensions
Commissioning 65,5 325,2 537,2 37,5 33,5 Fig. 24: CP3721-1600_push button extension dimensions Fig. 25 shows the dimensions of the 24-inch panel PC. 65,5 325,2 592,2 37,5 Fig. 25: CP3724-1600_dimensions Fig. 26 shows the dimensions of the 24-inch panel PC with push button extension. 65,5 325,2 592,2... -
Page 31: Mounting Arm Tube Installation
Among other tools you need a hook wrench for the installation. You can order this from your Beckhoff Sales using the following order identifier: •... -
Page 32: Installing A Toolboard And Handle
Commissioning 4.2.3 Installing a toolboard and handle You have the option of retrofitting mechanical extensions such as a handle or a toolboard to your panel PC. The following ordering options are available: Table 20: Ordering options for handle and toolboard Order identifier Version C9900-M361 Handle, length = 386 mm, anodized aluminum, mounted on the underside of a... -
Page 33: Grounding The Panel Pc
Commissioning 4.3.1 Grounding the Panel PC Potential differences are minimized and electrical currents are diverted to the ground through grounding or potential equalization of electronic devices. This is to prevent dangerous touch voltages and electromagnetic interference. Protective earth The protective grounding of a device serves to avoid dangerous touch voltages. According to the EN 60204-1 standard (Chapter 8 Potential equalization), protective grounding is required if: •... -
Page 34: Fig. 30 Mounting Arm Adapter Grounding Bolt
Commissioning Fig. 30: Mounting arm adapter grounding bolt Version: 1.8 CP37xx-1600... -
Page 35: Connecting Cables And Power Supply
If you ordered your device with an integrated UPS, then you can connect an external battery pack and install it on a DIN rail near to the PC. Use only Beckhoff battery packs for this: • C9900-U330: universal battery pack for PCs and panel PCs in any configuration •... -
Page 36: Fig. 31 Battery Pack C9900-U330 Wiring Diagram
Commissioning ext. Switch ext. switch 24 V DC PC_ON Power status Industrial PC power connector 24 V DC Lmax = 10 m 1,5 mm 24 V/3, 4 Ah 30 V/9 A C9900-U330 battery pack Fig. 31: Battery pack C9900-U330 wiring diagram For more information on the battery pack, please refer to the corresponding manual. -
Page 37: Switching The Panel Pc On And Off
You then use the installation package to install the UPS software components. The UPS software components come with a detailed help function. Call up the help files either directly from the configuration register by clicking the Help button or start the file under Start > Programs > Beckhoff > UPS software components. -
Page 38: Beckhoff Device Manager
• User name: Administrator • Password: 1 You also have the option of using the Beckhoff Device Manager to remotely configure the industrial PC via a web browser. More detailed information is available in the Beckhoff Device Manager manual. First start Beckhoff Device Manager When your industrial PC is booted for the first time, the Beckhoff Device Manager also starts automatically for the first time. -
Page 39: Fig. 33 Beckhoff Device Manager - Start Page
Secure passwords Strong passwords are an important prerequisite for a secure system. Beckhoff supplies the device images with standard user names and standard passwords for the operating system. It is imperative that you change these. Controllers are shipped without a password in the UEFI/BIOS setup. Beckhoff recommends assigning a password here as well. -
Page 40: Decommissioning
Decommissioning Decommissioning NOTICE Hardware damage due to power supply A connected power supply can cause damage to the Panel PC during disassembly. • Disconnect the power supply from the device before starting to disassemble it. As part of the decommissioning of the Panel PC, you must first disconnect the power supply and cables. Afterwards, you can dismount the device from the mounting arm. -
Page 41: Disassembly And Disposal
Removing the mounting arm adapter If you have installed one of the two available Beckhoff mounting arm adapters on your panel PC, follow the steps below to remove it (see Fig. 35): 1. -
Page 42: Fig. 35 Removing The Mounting Arm Adapter
Decommissioning Fig. 35: Removing the mounting arm adapter Disposal of the panel PC When disposing of the panel PC, be sure to observe the national electronic waste regulations. Version: 1.8 CP37xx-1600... -
Page 43: Maintenance
You can clean the front screen of the panel PC during operation. In order to avoid inadvertent touch entries when doing this, you must first set the device to "Cleaning Mode" with the help of the Beckhoff Control Tool. The Beckhoff Control Tool does not start automatically when the panel PC starts up. Proceed as follows to activate the "Cleaning Mode"... -
Page 44: Fig. 36 Selection "Cleaning Mode
Maintenance Fig. 36: Selection "Cleaning Mode" You can set the duration for which the panel PC should remain in "Cleaning Mode". The period can be set between 5 and 120 seconds. Right-click the sun symbol again and click "Options". Now select the appropriate period (see fig. -
Page 45: Table 21 Replacement Recommendations For Pc Components
NOTICE Use of incorrect spare parts The use of spare parts not ordered from Beckhoff Service can lead to unsafe and faulty operation. • Only use spare parts that you have ordered from Beckhoff Service. Beckhoff Panel PCs are manufactured from components of the highest quality and robustness. They are selected and tested for best interoperability, long-term availability and reliable function under the specified environmental conditions. -
Page 46: Replacing The Battery
Replace the battery with R/C (BBCV2), order number CR2032, nominal voltage 3 V. Using any other battery may cause fire or explosion. • Only replace the battery with a replacement battery from Beckhoff Service. • When replacing the battery, make sure that the polarity is correct. -
Page 47: Fig. 39 Replacing The Battery
Maintenance NOTICE Battery damage Incorrect handling of the motherboard battery can damage it. • Do not recharge the battery. • Do not throw the battery on the fire. • Do not open the battery. • Protect the battery against direct sunlight and moisture. NOTICE Motherboard failure Scratches on the motherboard may cause the motherboard to fail. -
Page 48: Replacing The Storage Media
If you want to exchange a storage medium according to Beckhoff's recommendation, you must copy the data from the old to the new storage medium. You can use the Beckhoff Service Tool (BST) for this purpose. BST is a graphical backup and restore program for PCs with a Windows operating system. You can create an image of your operating system and use it to back up the operating system. -
Page 49: Troubleshooting
No power supply to the Panel PC Check the power supply cable Cable not connected 1. Correctly connect the cable 2. Call Beckhoff Service Panel PC boots, software starts, The cause of the error is the Call the machine or software... -
Page 50: Technical Data
CP3724: 10.1 kg Supply voltage 22-30 V (24 V power supply unit, NEC class 2) Power consumption Data sheet power consumption and power loss in the download finder: https://www.beckhoff.com/de-de/support/downloadfinder/ suchergebnis/?c-1=40717316 Protection rating IP65 Vibration resistance (sinusoidal EN 60068-2-6: 10 ... 58 Hz: 0.035 mm vibration) 58 ... - Page 51 33415 Verl Germany Phone: + 49 5246/963-0 email: info@beckhoff.de The addresses of the worldwide Beckhoff branches and agencies can be found on our website at http:// www.beckhoff.com/. You will also find further documentation for Beckhoff components there. CP37xx-1600 Version: 1.8...
- Page 52 Appendix 10.2 Approvals Your device has the following approvals: • CE • EAC • UKCA • FCC You will find all other applicable approvals on the name plate of your device. FCC approvals for the United States of America FCC: Federal Communications Commission Radio Frequency Interference Statement This device was tested and complies with the limits for a digital device of class A, according part 15 of the FCC regulations.
- Page 53 Mounting arm adapter grounding bolt ..................Fig. 31 Battery pack C9900-U330 wiring diagram ................... Fig. 32 Beckhoff Device Manager - Change passwords ................Fig. 33 Beckhoff Device Manager – Start page ..................Fig. 34 Removing the mounting arm tube ....................
- Page 54 List of tables List of tables Table 1 CP37xx-1600 configuration legend ....................Table 2 Wiring with 8-core cable....................... Table 3 Wiring with 12-core cable (C9900-K275/-K276/-K277) ..............Table 4 Ethernet interface pin assignment....................Table 5 USB interface pin assignment...................... Table 6 Ethernet interface pin assignment....................Table 7 RS232 pin assignment .........................
- Page 56 More Information: www.beckhoff.com/cp37xx-1600 Beckhoff Automation GmbH & Co. KG Hülshorstweg 20 33415 Verl Germany Phone: +49 5246 9630 info@beckhoff.com www.beckhoff.com...
