- Page 1 Installation and Operating instructions for CP32xx Multi-touch Panel PC Version: 1.9 Date: 2019-10-09...
-
Page 3: Table Of Contents
Table of contents Table of contents 1 Foreword Notes on the Documentation 1.1.1 Liability Conditions 1.1.2 Trademarks 1.1.3 Patent Pending 1.1.4 Copyright 1.1.5 State at Delivery 1.1.6 Delivery conditions Description of safety symbols Basic safety measures Operator’s obligation to exercise diligence 1.4.1 National regulations 1.4.2... - Page 4 8 Assembly dimensions 9 Technical Data 10 Appendix 10.1 Beckhoff Support and Service 10.1.1 Beckhoff branches and partner companies 10.1.2 Beckhoff company headquarters 10.2 Approvals for USA and Canada 10.3 FCC Approvals for the United States of America 10.4 FCC Approval for Canada...
-
Page 5: Foreword
Modifications to hardware or software configurations other than those described in the documentation are not permitted, and nullify the liability of Beckhoff Automation GmbH & Co. KG. 1.1.6 Delivery conditions In addition, the general delivery conditions of the company Beckhoff Automation GmbH & Co. KG apply. CP32xx... -
Page 6: Description Of Safety Symbols
Foreword 1.2 Description of safety symbols The following safety symbols are used in this operating manual. They are intended to alert the reader to the associated safety instructions. Acute risk of injury! If you do not adhere the safety advise adjoining this symbol, there is immediate danger to life and health of individuals! DANGER Risk of injury! -
Page 7: Basic Safety Measures
Foreword 1.3 Basic safety measures Before the Panel PC is switched off, software that is running must be properly closed. Otherwise it is possible that data on the storage medium is lost. Please read the section Switching the Panel PC on and off. -
Page 8: Operator's Obligation To Exercise Diligence
• the operation manual is in good condition and complete, and always available for reference at the location of the product. Do not open the housing of the Panel PC! For technical support contact Beckhoff Service. Note 1.4.1 National regulations Depending on the type of machine and plant in which the Industrial PC is used, national regulations governing the controllers of such machines will apply, and must be observed by the operator. -
Page 9: Product Description

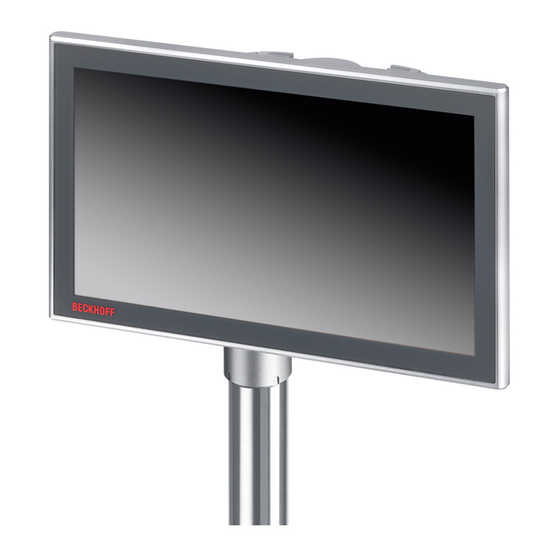

The data media and the lithium battery of the system clock are accessible from the rear under the cover. There is a Mini PCI slot in the CP32xx. The Beckhoff Mini PCI Ethernet or fieldbus cards can be factory- fitted. NOVRAM up to 512 kB is also available in the form of an optional Mini PCI plug-in card for fail-safe data storage. - Page 10 Product Description The multi-touch Panel PCs offer the following benefits: • Industrial PC with Control Panel for mounting arm installation • Multi-finger touch screen • Rotatable and tiltable mounting arm adapter for Rittal and Rolec mounting arm systems with 48 mm tube •...
-
Page 11: Appropriate Use
Product Description 2.2 Appropriate Use The CP32xx Panel PC is designed for industrial application in machine and plant engineering. In addition to the integrated PC, a TFT display with touch screen is accommodated in a slender aluminium housing. The Panel PC is designed for mounting arm installation. Risk of explosion! The Control Panel must not be used where there is a risk of explosion. -
Page 12: Access To The Memory Device And The Battery
Product Description After opening the connection area you have access to the connectors of the Panel PC. The cables with the connectors have to be pulled through the mounting arm tube before connecting them in the connection area. The installation of the cover takes place in reverse order. 2.4 Access to the memory device and the battery The slots for the hard disk and the battery are located behind the cover at the side of the Panel PC. -
Page 13: Replacing The Battery
Product Description After unscrewing the four screws (see arrows) with a star screwdriver Torx size 10 the drive cover can be taken off. 2 ½“ hard disk (1) battery (2) Removing the cover allows access to the hard-disk (1) and the lithium battery of the system clock (2). The hard-disk drive can now be pulled out. -
Page 14: Connections
Product Description 2.5 Connections Ground Connection X101 X102 Power Supply Ethernet 2.5.1 Power Supply (X101) X101 Connector 12-pole Coninvers RC-12P1N1126000 View connector-sided The power supply connection of the Panel PC and the connection with the UPS (optional) is established via the 12-pole power supply socket (X101). The protection class of the circular plug-in connector accords to the IP65-standard. -
Page 15: Network Interface (X102)
Product Description 2.5.2 Network Interface (X102) X102 RJ-45-Connector (Ethernet 10/100/1000 Mbit) The RJ-45 socket (X 102) enables connection of the Panel PC to a 10/100/1000 Mbit Ethernet network. The protection class accords to the IP65 standard. Signal Housing Screen TD + TD - RD + RD -... -
Page 16: Connection Cables
Product Description 2.6 Connection Cables Optionally prefabricated connection cables for connecting the power supply as well as prefabricated Ethernet connection cables are available. 2.6.1 Connection Cables for the Power Supply, optional The following connection cables for the power supply are available: Connection Cables Power supply cable with IP65 connector C9900-K271... -
Page 17: Installation
4. Please keep the associated paperwork. It contains important information for handling the unit. 5. Check the contents for visible shipping damage. If you notice any shipping damage or inconsistencies between the contents and your order, you should notify Beckhoff Service. CP32xx... -
Page 18: Mounting
Mounting 4 Mounting The assemblage of the Panel PC occurs by using the mounting arm adapter. The ambient conditions specified for operation must be observed (see chapter Technical Data). Please note the following points during installation of the Panel PC: •... -
Page 19: Mounting Arm Installation
Mounting 4.2 Mounting arm installation The mounting arm adapter is designed for Rittal- and Rolec mounting arm systems with 48 mm tubes. Depending on the order option C9900-M184 the mounting arm can be installed from the bottom: Order Option Description C9900-M184 Mounting arm adapter for Panel PC CP32xx, for Rittal and Rolec mounting arm systems with 48 mm tube from bottom instead of from top. -
Page 20: Mounting The Mounting Arm Tube
Mounting 4.2.1 Mounting the mounting arm tube For mounting the mounting arm tube proceed as follows: 1. Unscrew the Allen locking screw (1) a few turns. 2. After feeding the connection cables of the Panel PC through the mounting arm tube, the mounting arm tube will be positioned into the mounting arm adapter Insert the mounting arm tube all the way to the stop The mounting arm tube has to extend into the adapter all the way to the stop, make... - Page 21 Mounting 3. Tighten the Allen locking screw using the Allen key (2). Now the screw cap is tightened carefully clockwise, using the hook wrench SW 58-62 (3). CP32xx...
-
Page 22: Power Supply Of The Industrial Pc
(UPS) using the battery pack Note C9900-U330. Danger of Explosion! Danger of Explosion if using other battery packs! WARNING 4.3.1 Beckhoff power supply technology Example: Schematic diagram of power supply unit wirings CP32xx... - Page 23 The new Beckhoff power supply technology approach addresses this problem and now offers the user the option of switching the PC off without the need for using the battery, thereby reducing the load on the battery.
-
Page 24: Connecting Power Supply
Mounting 4.4 Connecting Power Supply The external wiring consists of the connection of the power supply, the battery pack (optional) and the connection of customized components for shutting down the PC. 4.4.1 Cable Cross Sections For the connection of the power supply, wiring with a cable-cross-section of 1.0 mm must be used. -
Page 25: Wiring Diagram
Mounting 4.4.5 Wiring diagram Wiring according to the wiring diagram (the circuit of PC_ON and Power-Status is symbolical): Connection of the Battery Pack and UPS Output Connection of the Battery Pack and UPS Output only in combination with integrated Note UPS (order option). -
Page 26: Connecting The Panel Pc
Mounting 4.5 Connecting the Panel PC The mains plug must be disconnected Please read the documentation for the external devices prior to connecting them! Attention During thunderstorms, plug connector must neither be inserted nor removed! When disconnecting a plug connector, always handle it at the plug. Do not pull the cable! 4.5.1 Connecting cables The connections are located at the rear side of the Panel PC behind a cover and are documented in the chapter... -
Page 27: Operating Instructions
Operating Instructions 5 Operating Instructions 5.1 Switching the Panel PC on and off 5.1.1 Switching on The Panel PC does not have its own mains power switch. As soon as the power supply is switched on the Panel PC is activated. 5.1.2 Shutting down and switching off Control software such as is typically used on Industrial PCs permits various users to be given different rights. -
Page 28: Servicing And Maintenance
Operating Instructions 5.3 Servicing and maintenance 5.3.1 Cleaning Disconnect power supply Switch off the device and all connected devices, and disconnect the device from the power supply. DANGER The device can be cleaned with a soft, damp cleaning cloth. Do not use any aggressive cleaning materials, thinners, scouring material or hard objects that could cause scratches. -
Page 29: Ups Software Components (Optional)
Industrial PC. On delivery of the Beckhoff Industrial PC with operating system the software is already installed. Should the software not be installed on your PC, the drivers can be installed from the driver CD provided. -
Page 30: Troubleshooting
No power supply to the Panel PC Check power supply cable Cable not connected Correctly connect cable Call Beckhoff Service Panel PC boots, software starts, but Cause of the fault is either in the Call the manufacturer of the control does not operate correctly... -
Page 31: Assembly Dimensions
8 Assembly dimensions For the assembly dimensions of the Panel PC please visit our homepage. Here you will find the actual drawings using the link: http://www.beckhoff.de/german/download/technical_drawings.htm Notice mounting orientation The assembly of the unit must take place with the orientation diagrammed here. -
Page 32: Technical Data
Technical Data 9 Technical Data Risk of explosion! Do not use the Control Panel in areas of explosive hazard! Danger Pixel errors Pixel errors in the TFT display are production-caused and represent no complaint- reason! Note Anomalies of the Touchscreen Anomalies of the touchscreen sensor are production-caused and represent no complaint-reason! Note... -
Page 33: Appendix
Please contact your Beckhoff branch office or partner company for local support and service on Beckhoff products! The contact addresses for your country can be found in the list of Beckhoff branches and partner companies: www.beckhoff.com. You will also find further documentation for Beckhoff components there. -
Page 34: Approvals For Usa And Canada
Appendix 10.2 Approvals for USA and Canada 10.3 FCC Approvals for the United States of America FCC: Federal Communications Commission Radio Frequency Interference Statement This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules.
