Hardware Installation and Reference Guide
8

Replacing Modules

8.1

Removing an SFP or SFP+ Module

(1) Unplug the fiber-optic cable.
(2) Turn down the handle of the module until it is horizontal. Pull the tab to take out the SFP or SFP+ module, as
shown in Figure 8-1.

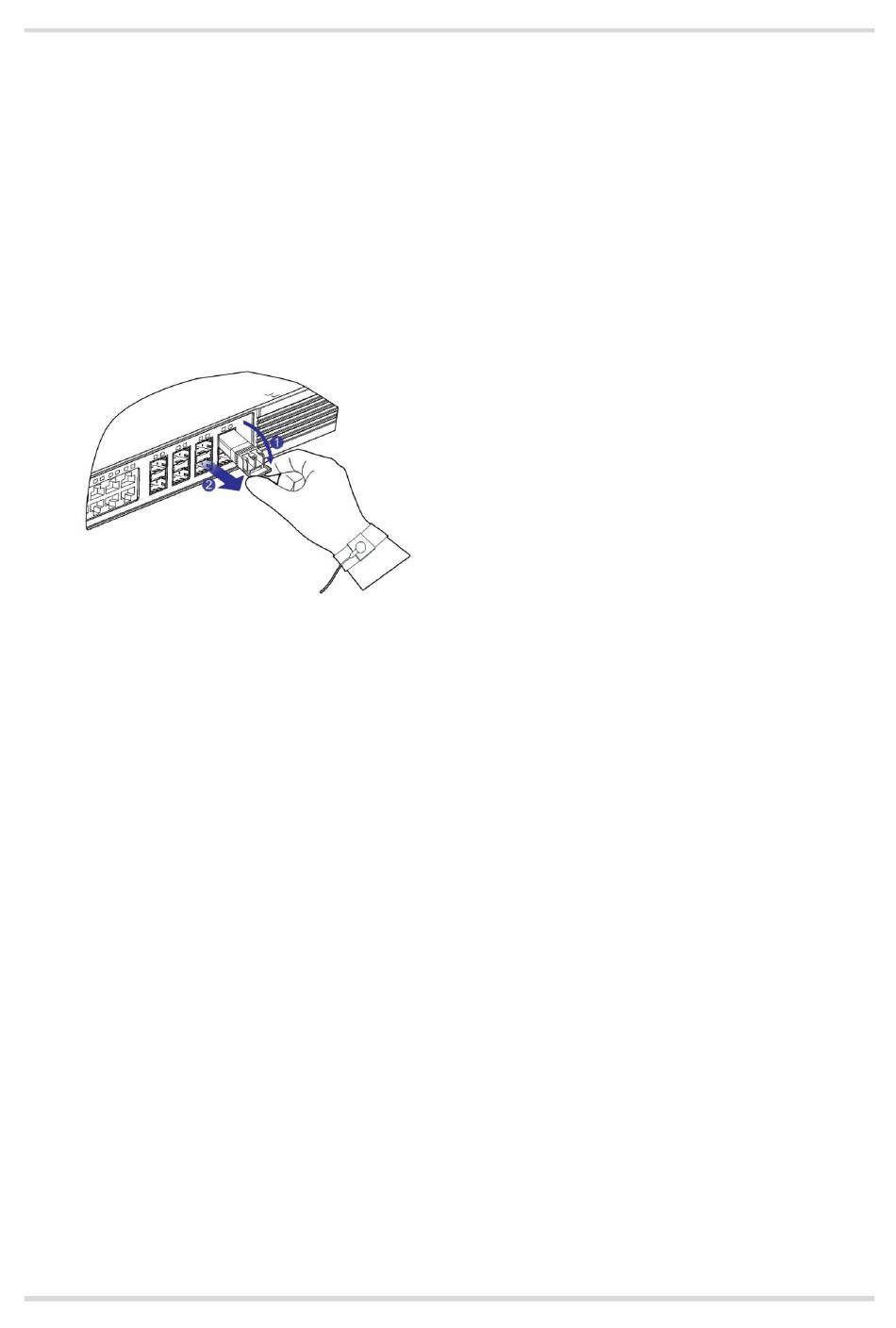

Figure 8-1 Removing an SFP or SFP+ Module
Precaution

Unplug the fiber-optic cable before removing the module.

Do not pull out the module forcefully without turning down the handle of the module.

Immediately install the dust plug to the module connector and the switch optical port.
8.2 Replacing a Supervisor Engine or Line Card
Any line card can work as a supervisor engine in slot 1. Slot 1 must be occupied.
Preparation
(1) Wear an anti-static wrist strap close to your skin and have it properly grounded.
(2) Take out the module from the package.
Steps
(1) Unplug all cables such as fiber-optic cables and RJ45 twisted pairs from the panel.
(2) Untighten the captive screws on the filler panel, as shown in step 1 in Figure 8-2.
(3) As shown in step 2 in Figure 8-2, rotate the ejector levers away from the front of the module to separate
module from the backplane.
(4) As shown in step 3 in Figure 8-2, hold the ejector levers to pull out the module along the guide rail. Hold the
module with one hand and place your other hand under the module to support its weight.
(5) As shown in step 4 in Figure 8-2, rotate outward the ejector levers on both sides of the module to be
installed.
55
Replacing Modules
