- Page 1 TW-800R-SC Pokayoke Counter TW-800T Transmitter INSTRUCTION MANUAL V1.30 Please use this operation manual correctly on reading well. Please keep it carefully to be able to read immediately, when required.
-
Page 3: Table Of Contents
Table of Contents ■Outline ..................................1 ■Body and Accessories ............................1 ■Safety Precautions (Be Sure to Read This) ......................3 ■Name of Each Part ..............................6 ■Installation ................................8 Transmitter ................................8 Installing the receiver ............................10 ■Setting/Registering .............................12 Pairing (Registration) - pairing mode ......................12 Registering Work in the receiver—Setting change mode ................13 ■Operation ................................14 ■Specifications ..............................17 ■Dimensions Drawing ............................18... -
Page 4: Outline
TW-800R-SC/TW-800T ■Outline TW-800R-SC is a receiver with wireless function and a simple counting function. Receiver[TW-800R-SC] is used one-to-one with various tools equipped with Transmitter[TW-800T]. Once the TW-800T is mounted on the Torque wrench a tool of others with Limit switch (LS), the tightening completion signal of Torque wrench can be transmitted to each series of our TWF-800R. - Page 5 TW-800R-SC/TW-800T Transmitter TW-800T For limit switch Hexagon socket head bolt M2×L10×2pcs M2 (φ2.2) ×2pcs Flat washer Coin battery: CR2032×1 TW-800T body ×1 (Body mounting screw M3 x L7 x 1pc, Harness connector with limit switch Mounting screw M4 x L5 x 4pcs TW-800T-HCL x 1pc）...
-
Page 6: Safety Precautions (Be Sure To Read This)
TW-800R-SC/TW-800T ■Safety Precautions (Be Sure to Read This) This section describes the matters to be observed in order to prevent harm to the users and other persons and damages to the property. ■ The following marks and displays classify and describe the extent of harm and damage caused by failing to observe the display content and using this product wrongly. - Page 7 TW-800R-SC/TW-800T ■Handling the AC adapter Be sure to observe the followings in order to prevent the accidents such as heat generation, damage, or ignition of AC adapter. ●Do not place the AC adapter close to fire or insert them into fire. Or they may be burst and ignited, resulting in the accident.
- Page 8 TW-800R-SC/TW-800T ■Notes on the Radio Law 〇The wireless device used for this product is certified as a specific radio device for a radio equipment of a low power data communication system based on the Radio Law. Therefore, a radio station license is not required to use this product.
-
Page 9: Name Of Each Part

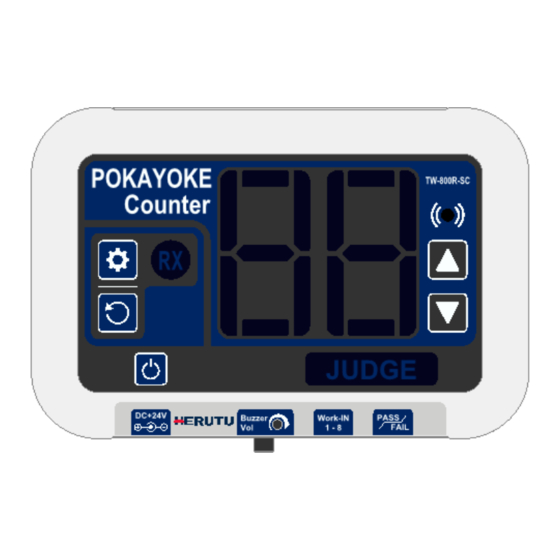

TW-800R-SC/TW-800T ■Name of Each Part ●Transmitter TW-800T ⑥ ⑦ ⑧ ② ⑤ ③ ① ④ ① Mounting bracket for mounting on the torque wrench. Mounting bracket ② Mounting brackets/ The hole is for mounting the base of torque wrench of LS type and seat. - Page 10 TW-800R-SC/TW-800T ●Receiver TW-800R-SC ① ② ⑥ ③ ⑦ ④ ⑧ ⑤ ⑨ ⑪ ⑫ ⑩ ① 7SEG-LED display displays the count value and various setting values. 7SEG-LED (2-digit) The LED lights green when the receiver receives the signal from the transmitter.
-
Page 11: Installation
Transmitter is used by attaching to various kinds of tools such as torque wrench, plier wrench, check pen, battery tool etc. As plier wrench and check pen are original products of Herutu Electronics, basically it is shipped with transmitter attached. - Page 12 TW-800R-SC/TW-800T <The attention and the check method on limit switch attachment> When the lever working range of a torque wrench is small, a limit switch cannot be struck and a transmitter may not send. In limit switch attachment, be careful enough and carry out.
-
Page 13: Installing The Receiver
TW-800R-SC/TW-800T < Replacing the harness connector with limit switch (TW-800T-HCL) > When replacing the harness connector with limit switch, remove the coin battery and perform the replacement procedure, as shown below. ① Pull the cable portion near the connector horizontally to let the connector mating portion come off from the connector. - Page 14 TW-800R-SC/TW-800T ●Work-Select input The input type is a non-voltage contact input. Connect the input signal to the low chattering switch for turning ON/OFF DC9V/10mA stably or PLC. When using the Work-Select input, use the optional switch BOX for Work-Select, TW-WS02 or the input cable for Work Select, TW-SC24-4.
-
Page 15: Setting/Registering
TW-800R-SC/TW-800T ■Setting/Registering The transmitter and the receiver need to be paired before use. By pairing them, they recognize an identification signal from each other and communicate with each other. Pairing (Registration) - pairing mode ①With the receiver turned off, press the [POWER] key while pressing and holding the [REG.] key of the receiver. -
Page 16: Registering Work In The Receiver-Setting Change Mode
TW-800R-SC/TW-800T Registering Work in the receiver—Setting change mode Register Count/ Reset time/ Over count as a “Work” in advance. Up to 8 types of Work can be pre-registered. Count: A signal received from the transmitter is counted as 1 count. -
Page 17: Operation
TW-800R-SC/TW-800T ■Operation ●Power ON/OFF Power ON → Press the POWER key for 0.1 seconds or more. Power OFF → Press the POWER key for 2 seconds or more. POWER key ●Work flow (count mode) After the reset time is reached, the count returns to the original count value automatically. - Page 18 TW-800R-SC/TW-800T ●Buzzer volume adjustment Adjust the buzzer volume with the control volume of the receiver. Buzzer adjustment volume ●Test switch (pairing switch) The transmitter is equipped with a test switch for communication and battery voltage checks. The Receiver (RX) LED is triggered by a signal from the test switch, but countdown and output is not executed. When the test switch is pressed, the transmitter checks the battery remaining capacity.
- Page 19 TW-800R-SC/TW-800T ●Battery level notification function The battery level notification function notifies the battery level status in two stages. ①Notification of low battery level with test switch: It is possible to check the battery level with the test switch. When the battery is low, the red LED will light for 1 second.
-
Page 20: Specifications
Weight Approx. 40 g (1.4 oz) Antenna PCB Antenna Battery Life Approx. 300,000 uses (depending on usage conditions) ●Receiver TW-800R-SC Item Specifications Small signal-head plug; diameter 3.5mm (0.14"), 3-pole type Output(s) 2 Power Transistor Outputs (1 PASS / 1 FAIL) Rated Load DC 24V / 0.1A... -
Page 21: Dimensions Drawing
TW-800R-SC/TW-800T ■Dimensions Drawing ●Transmitter TW-800T ●Receiver TW-800R-SC... - Page 22 TW-800R-SC/TW-800T ＜Options＞ ● Desktop Stand TW-SCDS01...
-
Page 23: Before Determining Fault
TW-800R-SC/TW-800T ■Before Determining Fault TW-800T（Transmitter） Phenomenon Cause and remedy Battery capacity is low. →Please replace the battery （CR2032）. The limit switch signal is not connected. The transmitter does not transmit →Make sure the connector of the transmitter board and the limit LED (red or green) does not light up switch connector are securely connected. -
Page 24: After Service And Warranty
〔Warranty Regulation〕 This regulation (hereinafter referred to as the "Regulation") is for post-shipment warranty provided by HERUTU ELECTRONICS CORPORATION (hereinafter referred to as the "Company") so that you can use the Company's product you have purchased with confidence. The Regulation does not apply to special order products (custom products). - Page 25 This regulation (hereinafter referred to as the "Regulation") shall be applied to paid repair service (hereinafter referred to as the "Service") provided by HERUTU ELECTRONICS CORPORATION (hereinafter referred to as the "Company"). The Regulation does not apply to special order products (custom products). In addition, purchased products shall be subject to relevant manufacturer's repair regulations, and the Regulation shall not apply.
- Page 26 TW-800R-SC/TW-800T Establishment of contract The contract shall be established when the customer approves the quotation presented by the Company and issues an order form before the end of the repair implementation period. Purpose of the Service The Company will provide the Service for the purpose of repairing the function and performance of the Company's product used by the customer if it fails beyond the scope of the warranty specified in the warranty regulation.
- Page 27 TW-800R-SC/TW-800T In addition, if the customer does not place an order within three months from the date of creation of the quotation, or if the customer does not accept the quotation and the customer expresses an intention not to carry out the repair, the Company will assume that the customer has canceled the request for the Service, and the Company will return the Product for repair to the customer without carrying out the repair.
- Page 28 HERUTU ELECTRONICS CORPORATION 422-1 Higashimikata-cho, Kita-ku, Hamamatsu, Shizuoka, 433-8104 Japan (Sales dept) TEL.+81-53-438-3555 FAX. +81-53-438-3411 Website URL https://www.herutu.co.jp/en/ E-mail info@herutu.co.jp...
