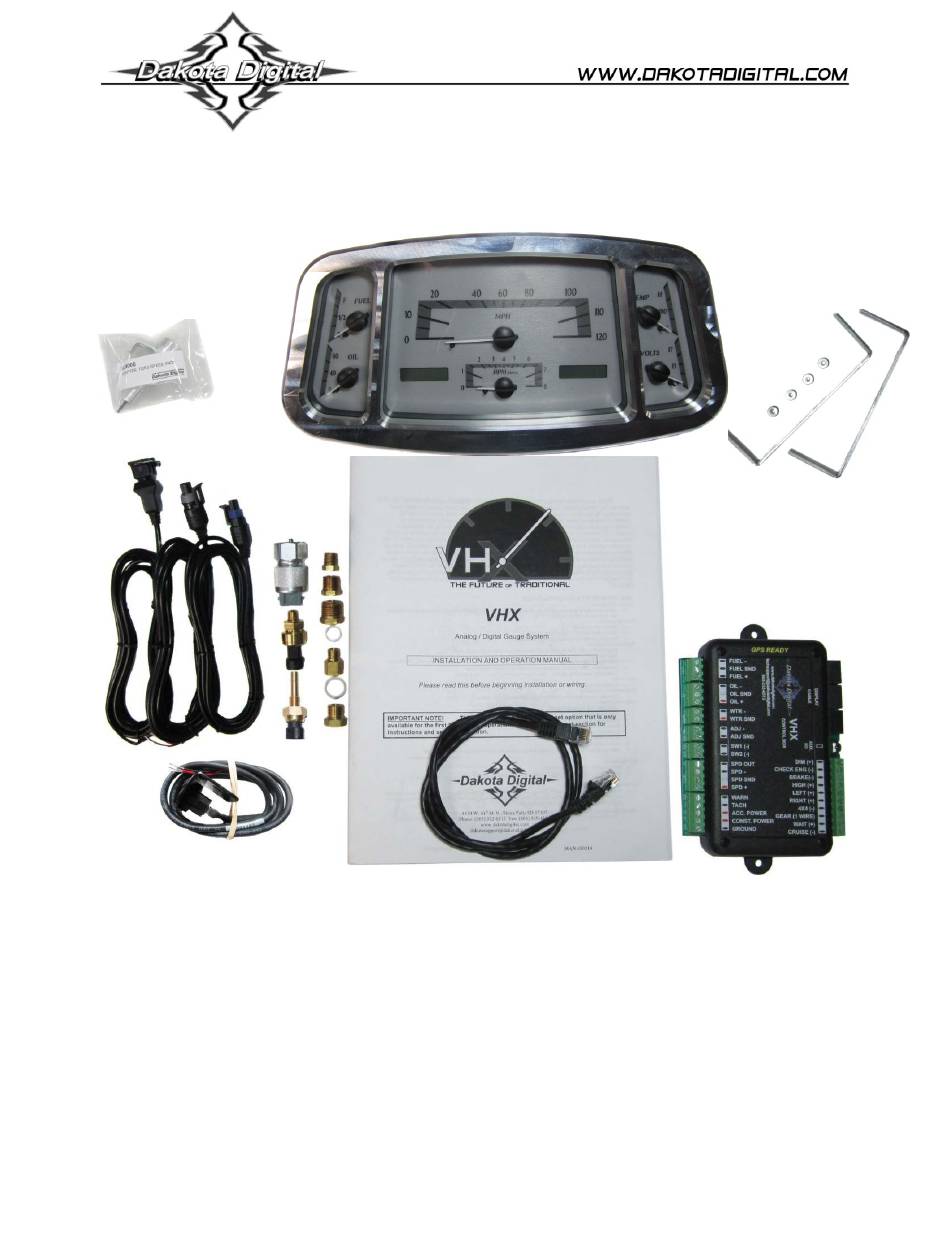

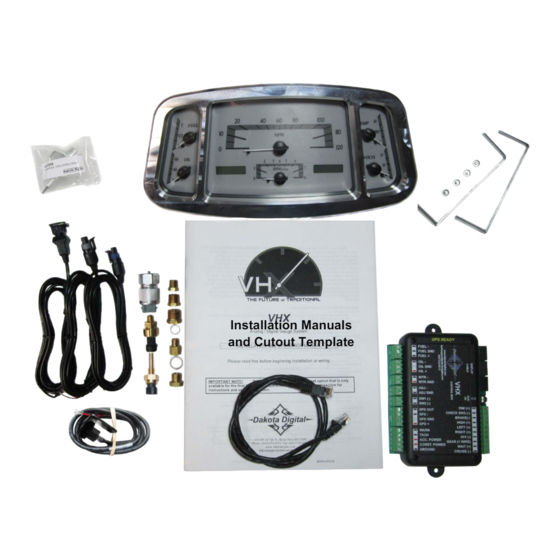

Your new VHX-33F kit includes:
Ford Adapter
Universal Sender Pack
Switch Assembly
Installation
1. Use the provided template to mark out the opening needed to fit the VHX display. Ensure there is
adequate clearance behind the desired mounting location. The display unit needs approximately two
inches of depth behind the dash.
VHX-33F
Dakota Digital VHX Instrument Installation
For 1933-34 Ford Car
Installation Manuals
and Cutout Template
CAT5 Cable
VHX Display
(2x) U-Brackets
(4x) Thumb Nuts
Control Box
Manual # 650435A
