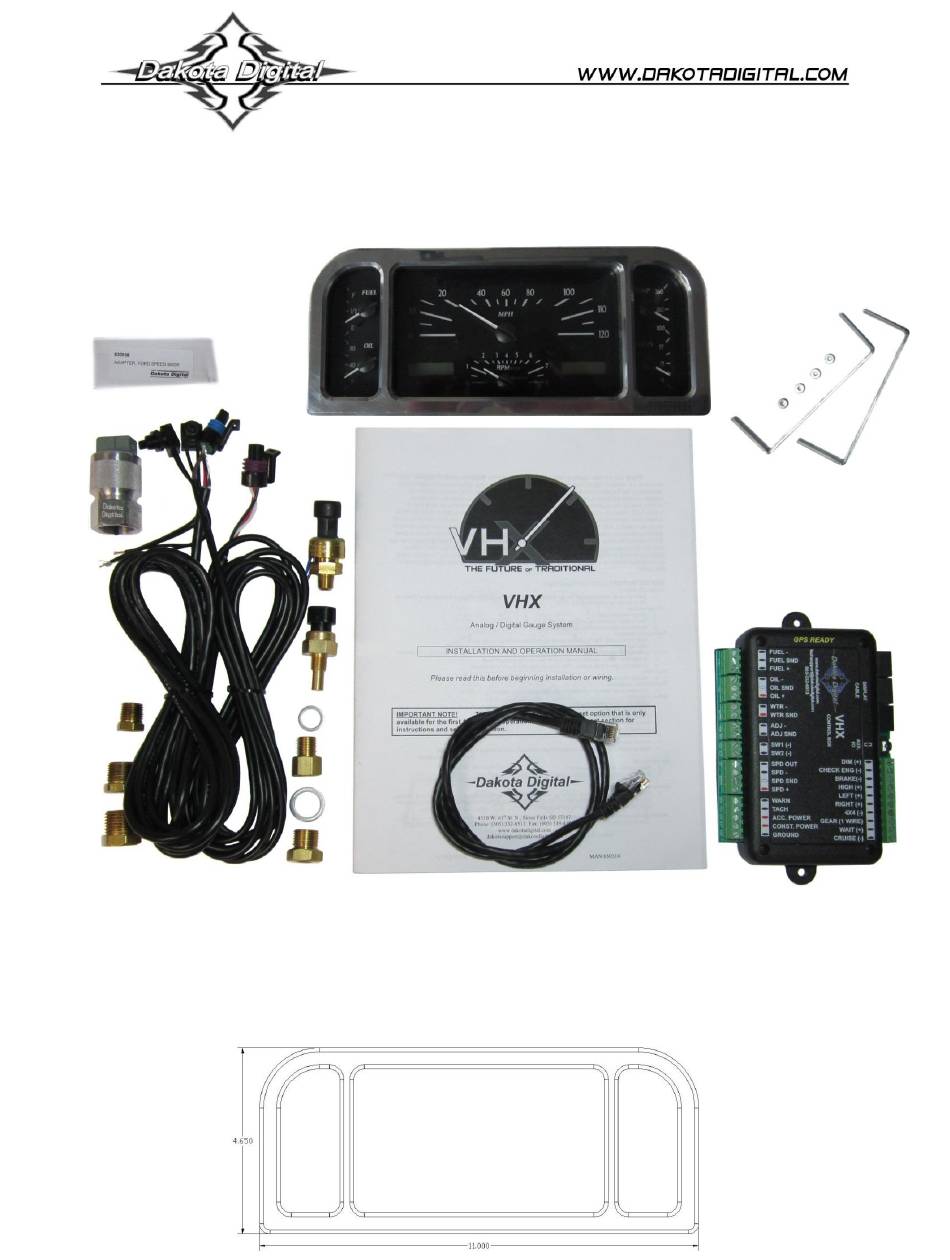

Your new VHX-37F kit includes:
Ford Adapter
Universal Sender Pack
Installation
1. Use the provided template to mark out the opening needed to fit the VHX display. Ensure there is
adequate clearance behind the desired mounting location. The display unit needs approximately 2.5"
of depth behind the dash. The overall bezel size is shown below.
VHX-37F
Dakota Digital VHX Instrument Installation
For 1937-38 Ford Car
Installation Manuals
and Cutout Template
CAT5 Cable

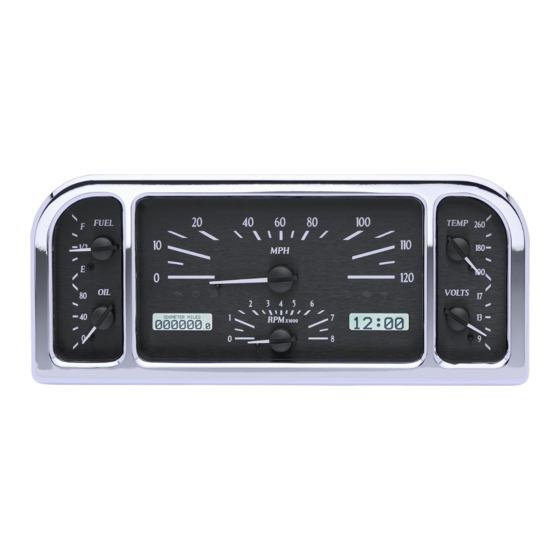

VHX Display
(2x) U-Brackets
(4x) Thumb Nuts
Control Box
Manual # 650434
