Front light indication: front light status supported by controller.

Error code indication

Riding Info: Braking Status, Front Light Status, Cruise, Low Voltage.

Turning Signals: This function works with controller.

Dual Drive Control and Display: This function works with controller.

Status of Double Battery Packs: optional, works with controller.

NFC Function: optional.

Bluetooth Connection: optional, support OTA upgrade via mobile phone.


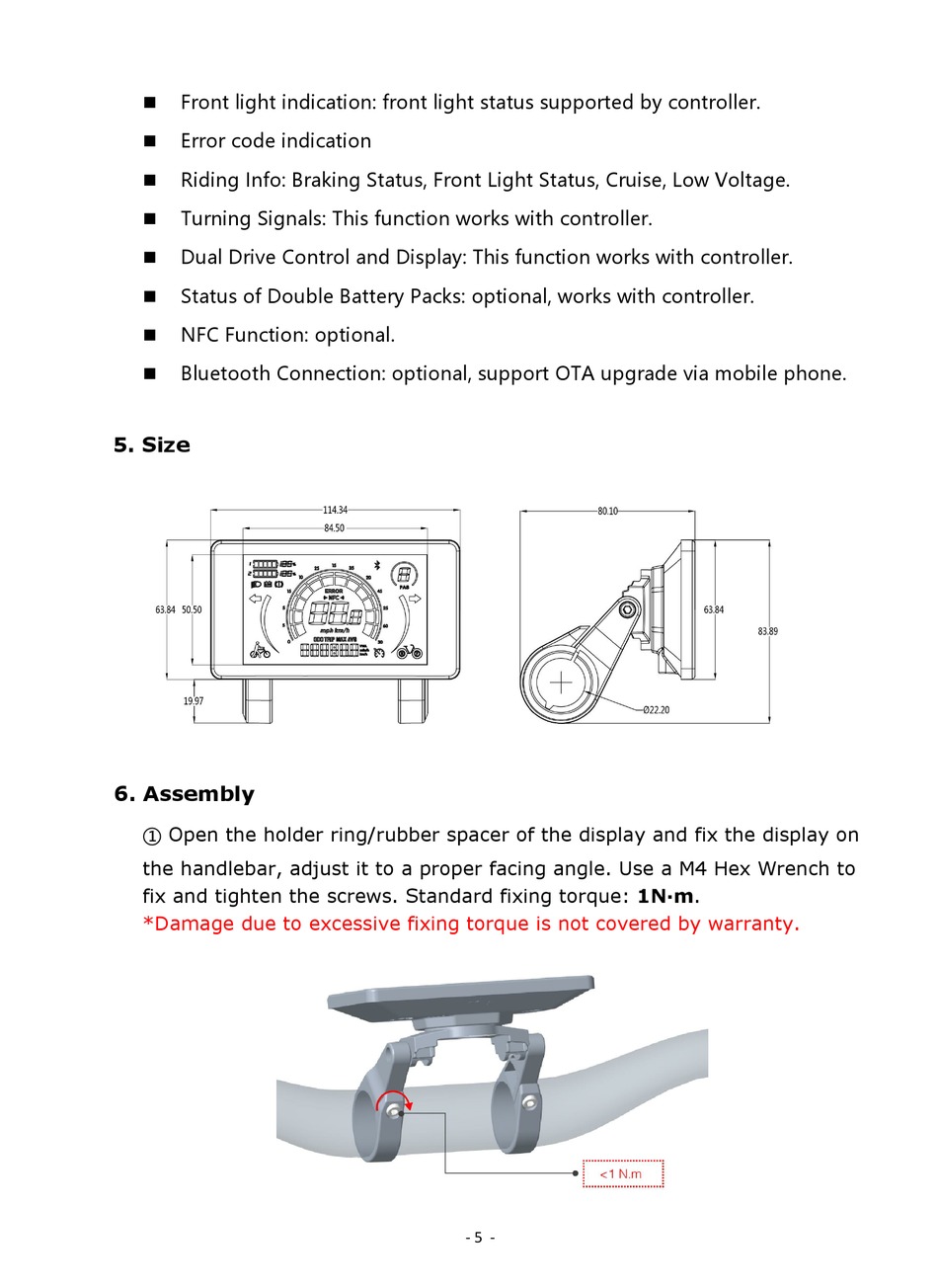

5. Size

6. Assembly

① Open the holder ring/rubber spacer of the display and fix the display on
the handlebar, adjust it to a proper facing angle. Use a M4 Hex Wrench to
fix and tighten the screws. Standard fixing torque: 1N·m.
*Damage due to excessive fixing torque is not covered by warranty.
- 5 -
