USERS GUIDE
SW-K618

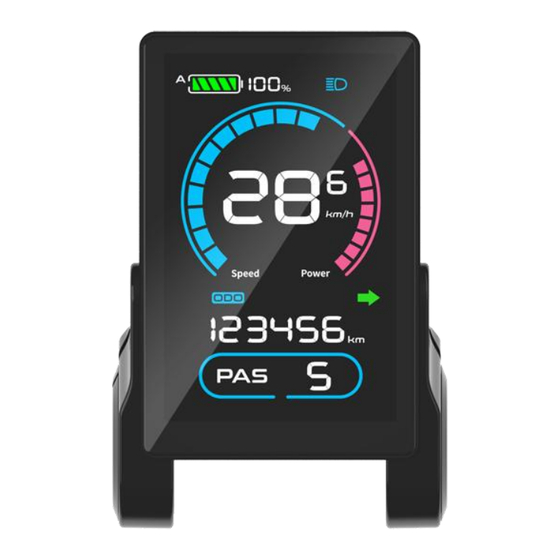

E-Bike Display
Model:SW-K618
Protocol:UART 2.0
Version:V6.01
Changzhou Sciwil E-Mobility Technology Co., Ltd.
文件号:XSW-J-05-0014-2024
1
Scan QR Code
to Download PDF
Wechat
Website

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SW-K618 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for SCIWIL SW-K618

  • Page 1 文件号:XSW-J-05-0014-2024 USERS GUIDE SW-K618 E-Bike Display Model:SW-K618 Protocol:UART 2.0 Version:V6.01 Scan QR Code to Download PDF Changzhou Sciwil E-Mobility Technology Co., Ltd. Wechat Website...
  • Page 2: Table Of Contents

    Contents Ⅰ. Safety Notes ..................... 3 Ⅱ. Overview ....................... 4 1. Product Name and Model ................4 2. Product Introduction ..................4 3. Specifications ....................4 4. Function ......................4 5. Size ........................5 6. Assembly ......................5 7. Serial Code ......................6 Ⅲ.
  • Page 3: Ⅰ. Safety Notes

    Ⅰ. Safety Notes PLEASE TAKE CAUTION WHEN USE,DO NOT PLUG OR UNPLUG THE DISPLAY WHILE YOUR E-BIKE IS POWERED ON.  AVOID CLASHES OR BUMPS TO THE DISPLAY.  AVOID USING IN HEAVY RAINS, SNOWS OR LONG EXPOSURE TO STRONG SUNLIGHT.
  • Page 4: Ⅱ. Overview

    1. Product Name and Model Product Name: E-Bike Display Product Model: SW-K618 2. Product Introduction SW-K618 features high-brightness anti-glare color LCD and minimalist interface, working as an ideal HMI solution for EN15194 electric bikes. 3. Specifications Working Voltage: DC 24V/36V/48V/52V/60V/72V ...
  • Page 5: Size

    Front light indication: front light status supported by controller.  Error code indication  Riding Info: Braking Status, Front Light Status, Cruise, Low Voltage.  Turning Signals: This function works with controller.  Dual Drive Control and Display: This function works with controller. ...
  • Page 6: Serial Code

    Open the holder ring/rubber spacer of the keypad and fix it on the ② handlebar, adjust it to a proper facing angle. Use a M3 Hex Wrench to fix and tighten the screws. Standard fixing torque: 1N·m. *Damage due to excessive fixing torque is not covered by warranty. Plug the 5-pin connector of the display to the coupling connector of the ③...
  • Page 7: Setting Interface

    1.2 Setting Interface Settings P01 Parameter 02 In the above interface: Setting Item: P01, Parameter Value: 02 - 7 -...
  • Page 8: Error Interface

    1.3 Error Interface Error Mark Error Code In the above interface: Error Indicator: ERROR, Error Code: 06 2. Key Pad SWK2 Keypad Illustration: There are 5 keys on the SWK2 keypad, in the following instructions: is called Up Key; is called Mode Key; is called Down Key;...
  • Page 9: Key Operation

    3. Key Operation Key operation guide as follows: Press and Hold: means press and hold the key(s) for more than 2s. Press: means press the key(s) for less than 0.5s. 3.1 On/Off Turn on the Display: When the display is off, press and hold the Mode Key to turn on the display, it will show boot interface and then enter riding interface.
  • Page 10: Settings

    real-time speed will be shown in the speed section. Disengage Walk Assist Mode: release the Down Key to disengage the walk assist mode, the icon will off on the riding interface. 4. Settings 4.1 Setting Operations ① Enter the Settings: when the display is on, press and hold the Plus Key and the Minus/Walk Assist Key together to enter the Settings.
  • Page 11 P07: Motor Magnets Number for Speed Gauge. Range: 1-100  P08: Speed Limit. Range: 0-100km/, communications status (controller- controlled). The max speed will be kept constant at the set value. Error Value: ±1km/h (applicable to both the PAS/throttle mode) Note: The above-mentioned values are measured by metric unit (km/h). When the system unit is set to imperial unit (mph), the speed displayed will be automatically switched to corresponding value in imperial unit, however the speed limit value in the imperial unit interface won’t change...
  • Page 12: Error Code

    different levels, 1: throttle speed is leveled as pedal assist levels. P19: Auto-Light. 0: auto-light deactivated, 1: auto-light activated.  P20: Sensitivity of Light Sensor. Range: 20-100  P21: Boot Password. 4-Digit.  P22: Password for Advanced Settings. 4-Digit.  5.
  • Page 13: Warranty

    The limited warranty shall not be transferred to a third party other than as specified in the agreement with Sciwil. Warranty Exclusions: 1. Sciwil products that have been opened, modified or repaired without  authorization. 2. Damage on the connectors.
  • Page 14: Version

    V. Version This display user manual is in compliance with the general software version (A/0) of Changzhou Sciwil E-Mobility Technology Co., Ltd. There are chances that display products on some e-bikes may have a different software version, which is subject to the actual version in use.
