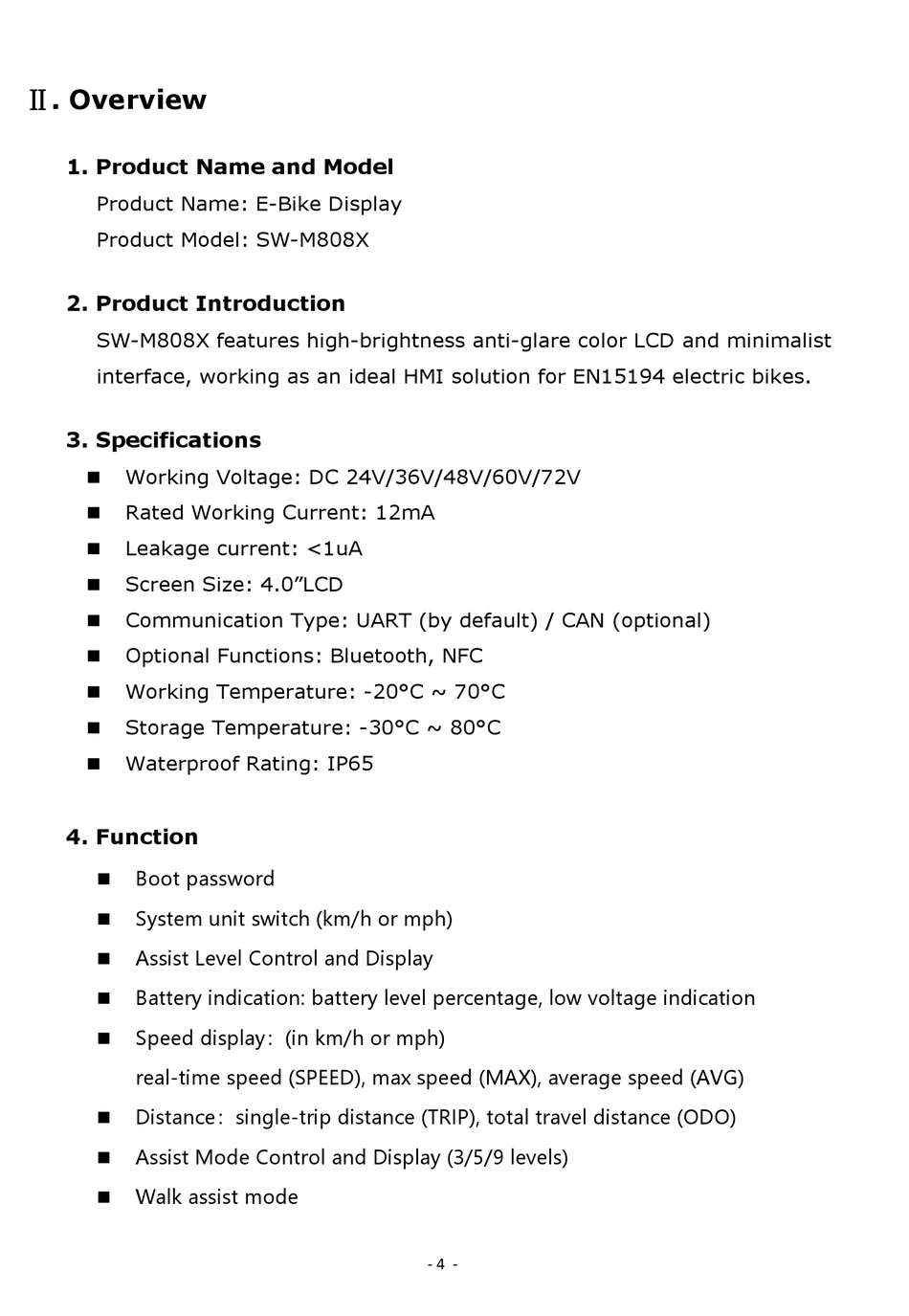

Ⅱ. Overview

1. Product Name and Model

Product Name: E-Bike Display
Product Model: SW-M808X

2. Product Introduction

SW-M808X features high-brightness anti-glare color LCD and minimalist
interface, working as an ideal HMI solution for EN15194 electric bikes.

3. Specifications

Working Voltage: DC 24V/36V/48V/60V/72V

Rated Working Current: 12mA

Leakage current: <1uA

Screen Size: 4.0"LCD

Communication Type: UART (by default) / CAN (optional)

Optional Functions: Bluetooth, NFC

Working Temperature: -20°C ~ 70°C

Storage Temperature: -30°C ~ 80°C

Waterproof Rating: IP65


4. Function

Boot password

System unit switch (km/h or mph)

Assist Level Control and Display

Battery indication: battery level percentage, low voltage indication

Speed display：(in km/h or mph)

real-time speed (SPEED), max speed (MAX), average speed (AVG)
Distance：single-trip distance (TRIP), total travel distance (ODO)

Assist Mode Control and Display (3/5/9 levels)

Walk assist mode

