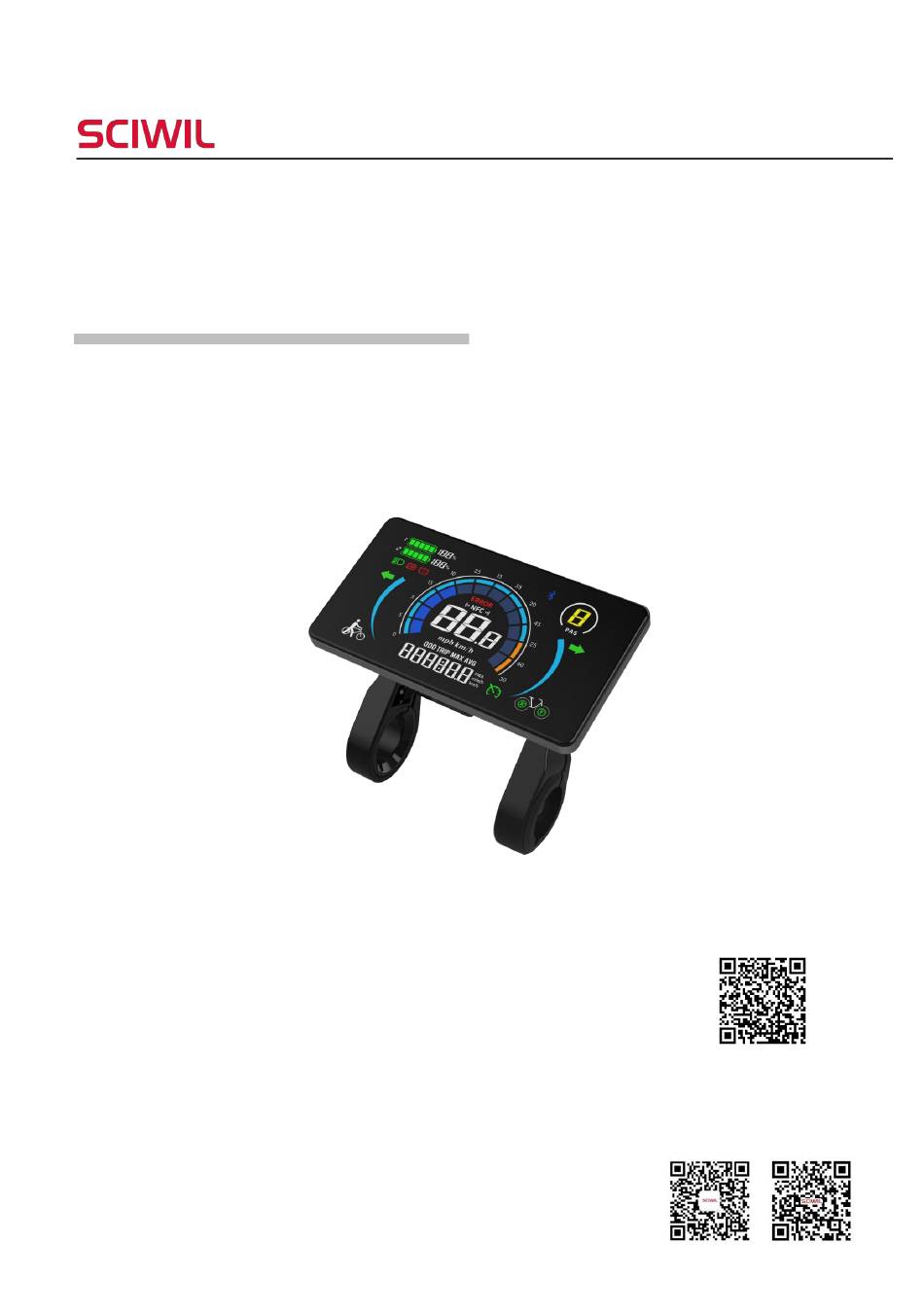

- Page 1 文件号：XSW-J-04-0008-2023 USERS GUIDE SW-M808X E-Bike Display Model：SW-M808X Protocol：Lithium II Version：V6.01 Scan QR Code to Download PDF Changzhou Sciwil E-Mobility Technology Co., Ltd. Wechat Website...
-
Page 2: Table Of Contents
Contents Ⅰ. Safety Notes ..................... 3 Ⅱ. Overview ....................... 4 1. Product Name and Model ................4 2. Product Introduction ..................4 3. Specifications ....................4 4. Function ......................4 5. Size ........................5 6. Assembly ......................5 7. Serial Code ......................6 Ⅲ. -
Page 3: Ⅰ. Safety Notes
Ⅰ. Safety Notes PLEASE TAKE CAUTION WHEN USE，DO NOT PLUG OR UNPLUG THE DISPLAY WHILE YOUR E-BIKE IS POWERED ON. AVOID CLASHES OR BUMPS TO THE DISPLAY. AVOID USING IN HEAVY RAINS, SNOWS OR LONG EXPOSURE TO STRONG SUNLIGHT. -
Page 4: Ⅱ. Overview

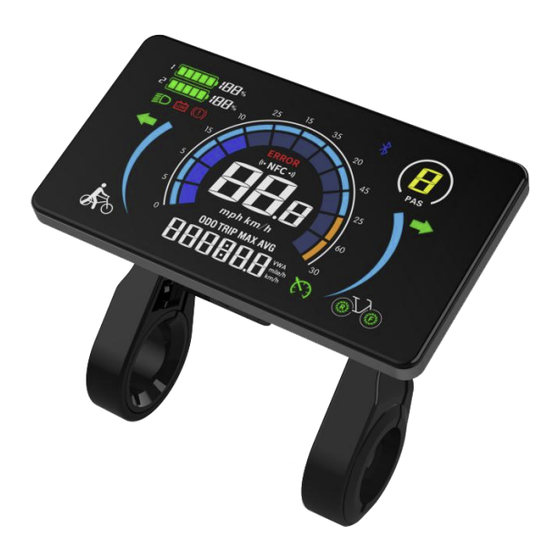

1. Product Name and Model Product Name: E-Bike Display Product Model: SW-M808X 2. Product Introduction SW-M808X features high-brightness anti-glare color LCD and minimalist interface, working as an ideal HMI solution for EN15194 electric bikes. 3. Specifications Working Voltage: DC 24V/36V/48V/60V/72V ... -
Page 5: Size
Front light indication: front light status supported by controller. Error code indication Riding Info: Braking Status, Front Light Status, Cruise, Low Voltage. Turning Signals: This function works with controller. Dual Drive Control and Display: This function works with controller. ... -
Page 6: Serial Code
Open the holder ring/rubber spacer of the keypad and fix it on the ② handlebar, adjust it to a proper facing angle. Use a M3 Hex Wrench to fix and tighten the screws. Standard fixing torque: 1N·m. *Damage due to excessive fixing torque is not covered by warranty. Plug the 5-pin connector of the display to the coupling connector of the ③... -
Page 7: Setting Interface
1.2 Setting Interface Settings P01 Parameter 02 In the above interface: Setting Item: P01, Parameter Value: 02 1.3 Error Interface - 7 -... -
Page 8: Key Pad
Error Mark Error Code In the above interface: Error Indicator: ERROR, Error Code: 06 2. Key Pad SWK2 Keypad Illustration: There are 5 keys on the SWK2 keypad, in the following instructions: is called Plus Key； is called On/Off Key； is called Minus/Walk Assist Key；... -
Page 9: Key Operation
3. Key Operation Key operation guide as follows: Press and Hold: means press and hold the key(s) for more than 2s. Press: means press the key(s) for less than 0.5s. Double Tap: means double tap the key(s) within 0.3s 3.1 On/Off Turn on the Display: When the display is off, press and hold the On/Off Key to turn on the display, it will show boot interface and then enter riding interface. -
Page 10: Settings
Minus/Walk Assist Key to enter walk assist mode. Hold the Minus/Walk Assist Key to engage walk assist mode, the walk mode icon will be shown on the riding interface, the real-time speed will be shown in the speed section. Disengage Walk Assist Mode: release the Minus/Walk Assist Key to disengage the walk assist mode, the icon will off on the riding interface. - Page 11 0-9 Level Mode；1-9 Level Mode (no Level0) P06: Wheel Size. Unit: inch; Increment: 0.1. P07: Motor Magnets Number for Speed Gauge. Range: 1-100 P08: Speed Limit. Range: 0-100km/, communications status (controller- controlled). The max speed will be kept constant at the set value. Error Value: ±1km/h (applicable to both the PAS/throttle mode) Note: The above-mentioned values are measured by metric unit (km/h).
-
Page 12: Error Code
P17: Cruise. 0: cruise function deactivated, 1: cruise function activated. 5. Error Code Error Code (decimal) Status Note Normal Reserved Brake Error PAS Sensor Error (Riding Mark) Not Realized Walk Assist Mode Real-Time Cruise Low Voltage Protection Motor Error Throttle Error Controller Error Communications Error... -
Page 13: Warranty
The limited warranty shall not be transferred to a third party other than as specified in the agreement with Sciwil. Warranty Exclusions: 1. Sciwil products that have been opened, modified or repaired without authorization. 2. Damage on the connectors.
