- Page 1 文件号：XSW-J-06-0018-2025 USERS GUIDE SW-900VA E-Bike Display Model：SW-900VA Protocol：Lithium II Version：V6.03 Scan QR Code to Download PDF Changzhou Sciwil E-Mobility Technology Co., Ltd. Wechat Website...
-
Page 2: Table Of Contents
Contents Ⅰ. Safety Notes ..................... 3 Ⅱ. Overview ....................... 4 1. Product Name and Model ................4 2. Product Introduction ..................4 3. Specifications ....................4 4. Function ......................4 5. Size ........................5 6. Assembly ......................5 7. Serial Code ......................6 Ⅲ. -
Page 3: Ⅰ. Safety Notes
Ⅰ. Safety Notes PLEASE TAKE CAUTION WHEN USE，DO NOT PLUG OR UNPLUG THE DISPLAY WHILE YOUR E-BIKE IS POWERED ON. AVOID CLASHES OR BUMPS TO THE DISPLAY. AVOID USING IN HEAVY RAINS, SNOWS OR LONG EXPOSURE TO STRONG SUNLIGHT. -
Page 4: Product Name And Model

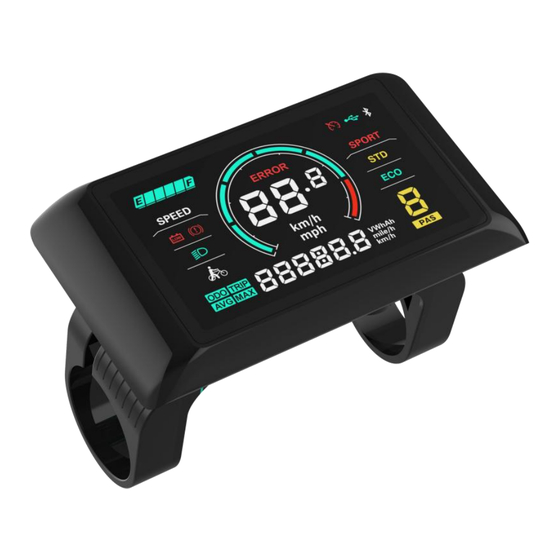

1. Product Name and Model Product Name: E-Bike Display Product Model: SW-900VA 2. Product Introduction SW-900VA features high-brightness anti-glare color LCD and minimalist interface, working as an ideal HMI solution for EN15194 electric bikes. 3. Specifications Working Voltage: DC 24V/36V/48V/60V/72V ... -
Page 5: Size
Error code indication Riding Info: Braking Status, Front Light Status, Cruise, Low Voltage. Turning Signals: This function works with controller. Dual Drive Control and Display: This function works with controller. Status of Double Battery Packs: optional, works with controller. ... -
Page 6: Serial Code
Open the holder ring/rubber spacer of the keypad and fix it on the ② handlebar, adjust it to a proper facing angle. Use a M3 Hex Wrench to fix and tighten the screws. Standard fixing torque: 1N·m. *Damage due to excessive fixing torque is not covered by warranty. Plug the 5-pin connector of the display to the coupling connector of the ③... -
Page 7: Setting Interface
Battery Status: Residual Battery Percentage Multi-Function Section: ODO (total range), TRIP (single ride range), MAX (max. speed), AVG (average speed), TIME (riding time), VOL (battery voltage), Wh (motor power), CUR (current), etc. Assist Level Mode: 3/5/9 Levels available. ... -
Page 8: Error Interface
1.3 Error Interface Error Mark Error Code In the above interface: Error Indicator: ERROR, Error Code: 30 2. Key Pad SWK1 Keypad Illustration: There are 3 keys on the SWK2 keypad, in the following instructions: ∧ is called Plus Key； is called On/Off Key；... -
Page 9: On/Off
3.1 On/Off Turn on the Display: When the display is off, press and hold the On/Off Key to turn on the display, it will show boot interface and then enter riding interface. (If boot password is activated, enter the boot password at start). Turn off the Display: When the display is on, press and hold the On/Off Key, the display will be turned off. -
Page 10: Settings
3.6 Dual Drive Control (enabled by controller) On the riding interface, press and hold the Plus Key to switch the drive mode, which will be toggled in turn as Rear Drive -> Front Drive -> Dual Drive, and the corresponding wheel of the icon on the down right corner will blink (e.g. the rear wheel of the icon will blink in Rear Drive mode). - Page 11 0-5 Level Mode；1-5 Level Mode (no Level0) 0-9 Level Mode；1-9 Level Mode (no Level0) P06: Wheel Size. Unit: inch; Increment: 0.1. P07: Motor Magnets Number for Speed Gauge. Range: 1-100 P08: Speed Limit. Range: 0-100km/, communications status (controller- controlled).
-
Page 12: Error Code
value will be cleared. P17: Cruise. 0: cruise function deactivated, 1: cruise function activated. P18: Throttle Level Control. 0: throttle speed isn’t divided into different levels, 1: throttle speed is leveled as pedal assist levels. P19: Auto-Light. 0: auto-light deactivated, 1: auto-light activated. ... -
Page 13: Warranty
Note: For waterproof connectors, wire sequences are concealed. IV. Warranty In compliance with local laws, Sciwil provides limited warranty period covering 24 months after the date of manufacturing (as indicated by the serial number), applies to quality issues during normal operations. -
Page 14: Version
V. Version This display user manual is in compliance with the general software version (A/0) of Changzhou Sciwil E-Mobility Technology Co., Ltd. There are chances that display products on some e-bikes may have a different software version, which is subject to the actual version in use.
