- Page 1 NO.：XSW-J-06-0028-2024 USERS GUIDE SW-Q60A E-Bike Display Model：SW-Q60A Protocol：Lithium II Scan QR Code Version：V6.01 to Download PDF Changzhou Sciwil E-Mobility Technology Co., Ltd. Wechat Website 第 1 页...
-
Page 2: Table Of Contents
Contents Ⅰ. Safety Notes ..................... 3 Ⅱ. Overview ....................... 4 1. Product Name and Model ................4 2. Product Introduction ..................4 3. Specifications ....................4 4. Function ......................4 5. Size ........................5 6. Assembly ......................5 7. Serial Code ......................6 Ⅲ. -
Page 3: Ⅰ. Safety Notes
Ⅰ. Safety Notes PLEASE TAKE CAUTION WHEN USE，DO NOT PLUG OR UNPLUG THE DISPLAY WHILE YOUR E-BIKE IS POWERED ON. AVOID CLASHES OR BUMPS TO THE DISPLAY. AVOID USING IN HEAVY RAINS, SNOWS OR LONG EXPOSURE TO STRONG SUNLIGHT. DO NOT TEAR THE WATER-PROOF FILM ON THE SURFACE OF THE SCREEN, OTHERWISE THE WATER-TIGHT PERFORMANCE OF THE PRODUCT MAY BE DEGRADED. -
Page 4: Ⅱ. Overview

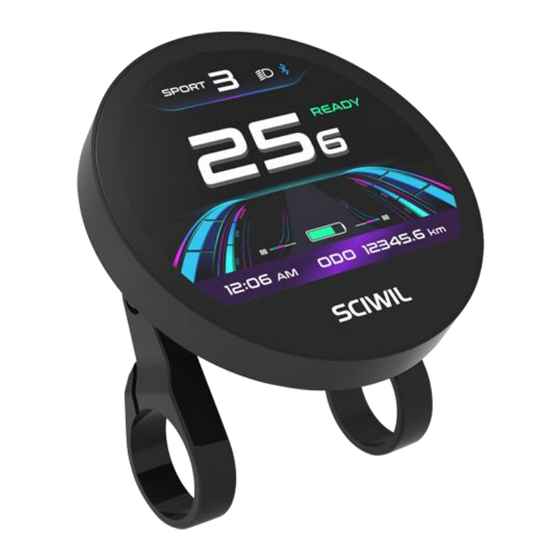

1. Product Name and Model Product Name: E-Bike Display Product Model: SW-Q60A 2. Product Introduction SW-Q60A features high-brightness color LCD and minimalist interface, working as an ideal HMI solution for EN15194 electric bikes. 3. Specifications Working Voltage: DC 24V/36V/48V/60V/72V ... -
Page 5: Size
Turning Signals: This function works with controller. Dual Drive Control and Display: This function works with controller. Status of Double Battery Packs: optional, works with controller. NFC Function: optional. Bluetooth Connection: optional, support OTA upgrade via mobile phone. 5. -
Page 6: Serial Code
＜1N·m *Damage due to excessive fixing torque is not covered by warranty. Plug the 5-pin connector of the display to the coupling connector of the ③ Controller. 7. Serial Code Marked at the 111 22 333333 555 6666 Example： back of display 111：Customer Code 22：Protocol Code 333333：P.O. -
Page 7: Setting Interface
Status: Real-time Riding Status: Bluetooth, Front Light, Brake, Low Voltage, Turning, Cruise, Drive Status, etc. Battery Status: Residual Battery Percentage Multi-Function Section: ODO (total range), TRIP (single ride range), MAX (max. speed), AVG (average speed), TIME (riding time), VOL (battery voltage), Wh (motor power), CUR (current), etc. -
Page 8: Key Pad
2. Key Pad SWK2 Keypad Illustration: There are 5 keys on the SWK2 keypad, in the following instructions: is called Plus Key； is called On/Off Key； is called Minus/Walk Assist Key； is called Light Key； is called Info Key； 3. Key Operation Key operation guide as follows: Press and Hold: means press and hold the key(s) for more than 2s. -
Page 9: Assist Level
3.2 Assist Level Press the Plus Key or Minus/Walk Assist Key to switch assist levels. There are 5 levels by default: 0/1/2/3/4/5. 0 means no assist power. Level0 Level1 Level2 Level3 Level4 Level5 3.3 Toggle Displays When the display is on, press the Info Key to toggle among ODO (total range), Trip (single trip range), TIME (riding time) etc. -
Page 10: Light On/Off
3.4 Light On/Off Turn on the Front Light: when the front light is off, press the Light Key to turn it on, and the light icon will be shown on the riding interface (to remove this functions, please reconfigure the controller). Turn off the Front Light: when the front light is on, press the Light Key to turn it off, and the light icon will be off on the riding interface. -
Page 11: Settings
4. Settings 4.1 Setting Operations ① Enter the Settings: when the display is on, press and hold the Plus Key and the Minus/Walk Assist Key together to enter the Settings. Available setting items include: system voltage, wheel size (inch), magnetic steel number for speed gauge, speed limit etc (please refer to 4.2 Setting Items). - Page 12 4.3 Backlight Brightness Press Plus or Minus to choose among I~IIIII. I is darkest, IIIII is brightest 4.4 Auto-Off Press Plus or Minus to select 1~60min as auto-off time, which means the display will turn off automatically if no operations detected within this period.
- Page 13 4.7 Wheel Size Press Plus or Minus to set the correct wheel size. Default wheel size: 26inch. Incorrect or inaccurate wheel size may lead to incorrect speed display. Unit: inch, increment 0.1inch. 4.8 Voltage Level Press Plus or Minus to select. Working voltage range: 24~72V. 4.9 Low Battery Level In light of low battery protection volt level, press Plus or Minus to set low battery protection level for the vehicle.
- Page 14 4.10 Boot Password Press the Info Key to enter Passoword Settings. First to set is 4-digit boot password (as shown in the pictures below). Then you can set in turn passwords for setting menu, basic settings, advanced settings and change password.
- Page 15 4.13 Current Limit Press Plus or Minus to set values for current limit. Min. Value: 6A, Max. Value: 50A. Default speed limit: 15A. 4.14 Auto-Cruise Press Plus or Minus to turn on or off the auto-cruise function. 4.15 Assist Levels Press Plus or Minus to select assist level mode: 3 levels / 5 levels.
- Page 16 4.17 Poles in Motor Press Plus or Minus to set number of magnetic poles for speed gauge. Min. Value: 1, Max. Value: 255. Default poles number: 1. 4.18 Start Mode Press Plus or Minus to select start mode : Throttle on demand and Throttle after pedal.
- Page 17 4.21 Start Sensitivity Press Plus or Minus to select start sensitivity range: 1~24. This value is the start latency after pedal. 4.22 Start Strength Press Plus or Minus to select start sensitivity range: 0~5. This value is the start power output after pedal. 4.23 Factory Reset Press the On/Off key to enter the Factory Reset Interface.
-
Page 18: Error Code
5. Error Code Error Code Status Note (decimal) Normal Reserved Brake Error PAS Sensor Error (Riding Mark) Not Realized Walk Assist Mode Real-Time Cruise Low Voltage Protection Motor Error Throttle Error Controller Error Communications Error BMS Communications Error Front Light Error 6. -
Page 19: Warranty
The limited warranty shall not be transferred to a third party other than as specified in the agreement with Sciwil. Warranty Exclusions: Sciwil products that have been opened, modified or repaired without authorization. Damage on the connectors. Damage to the surface after leaving factory, including shell, screen, buttons, or other appearance parts. -
Page 20: Version
V. Version This display user manual is in compliance with the general software version (A/0) of Changzhou Sciwil E-Mobility Technology Co., Ltd. There are chances that display products on some e-bikes may have a different software version, which is subject to the actual version in use.
